JUNG ME1520AT SCHUKO socket outlet LS brass antique

Your rating:
Average rating
product review for JUNG ME1520AT SCHUKO socket outlet LS brass antique
( 4.6 / 5 ) 7 ratings

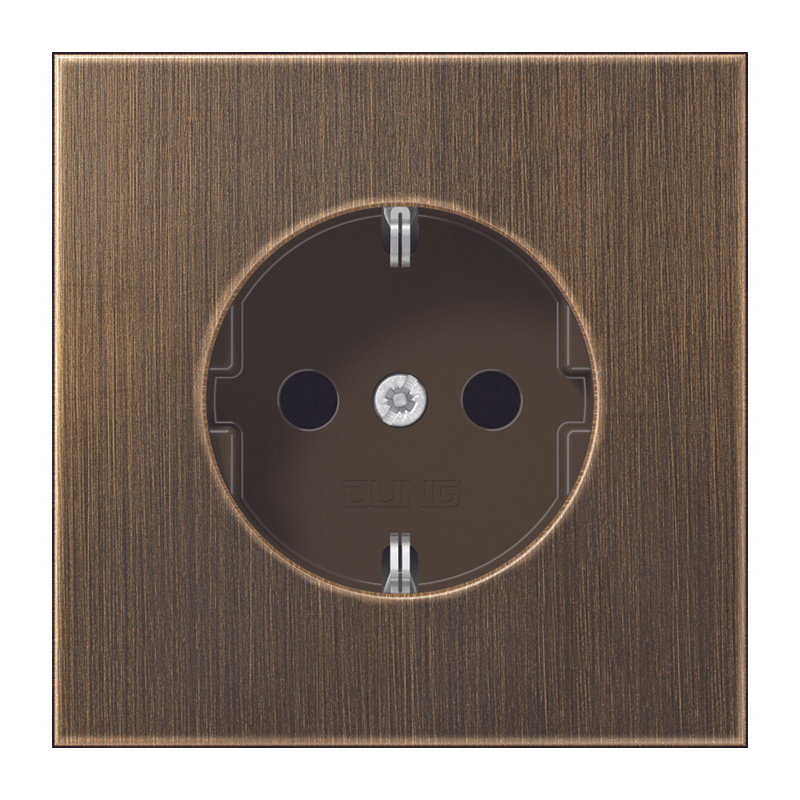

JUNG ME1520AT
This image may differ from the desired article.
JUNG ME1520ATJUNG ME1520ATJUNG ME1520AT
34,13 EUR 35,57 EUR
( 40,61 EUR incl. VAT )
≈ £28.57  |  ≈ $37.51
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x JUNG ME1520AT SCHUKO socket outlet LS brass antique
Lieske Part No.:341068
Mfg Part No: ME1520AT
UPC/EAN: 4011377112773
Weight:0.1429 kg
Type:ME1520AT
Graduated prices net
From piecesPrice per pieces
1032,59 EUR
2531,06 EUR
5029,52 EUR
7527,99 EUR

Product information for JUNG ME1520AT:

The JUNG ME1520AT is a flush-mounted SCHUKO® socket outlet in the brass antique finish, designed for use in electrical installations indoors. The device serves as a connection point for electrical appliances with a rated voltage up to 250 V and a rated current up to 16 A. The socket outlet is designed for installation in standard flush-mounted installations and features a square front plate with dimensions 70 mm width and 70 mm height. The front plate material is brass, finished in an antique patina, giving the device a decorative appearance.

SCHUKO® socket outlet
The socket outlet conforms to the European SCHUKO® plug system, characterised by two parallel pin contacts and two lateral grounding wings. This design enables connection with a wide range of appliances commonly used in Germany and other European countries. The socket outlet is designed for operation at 250 V and 16 A, sufficient for domestic and commercial indoor use.

Spring terminals and connection technology
The connection terminals of the ME1520AT are spring terminals, suitable for rigid and uncoated flexible conductors up to 2.5 mm². The connection terminals comply with DIN VDE 0620, the standard for safe and reliable connection of electrical conductors in installations. The spring terminals allow for quick and secure conductor attachment without additional tools, with mechanical strength ensured by the clamping technology.

Earthing bar and protective measure
The contact ring, claws, and claw screws of the socket outlet are connected to an earthing bar as part of the protective measure. This ensures a reliable earthing connection in the event of a fault, guaranteeing electrical safety. The earthing bar ensures that all metallic parts of the socket outlet, which could become live in a fault condition, are securely earthed.

Material and finish
The housing of the socket outlet is made of brass, finished in an antique patina. This material finish gives the device a classic and decorative appearance, particularly suitable for integration into historical or stylishly designed rooms. The surface is not coated, showing the natural patina of brass, which may change over time.

Compatibility and accessories
The socket outlet is not connected to a flush-mounted box or other installation components. The use of appropriate flush-mounted boxes and installation materials is required to ensure correct installation.

Mounting and installation
Installation is carried out in a flush-mounted box recessed into the wall. The socket outlet is inserted into the box and secured using the provided claw screws. Electrical connections are made via the spring terminals, designed for conductor cross-sections up to 2.5 mm². Earthing is achieved through the integrated earthing bar, connected to the protective conductor. Installation requires no additional tools, except a screwdriver for securing the claw screws.

Operation and safety
In operation, the ME1520AT provides a safe and reliable connection point for electrical appliances. The use of spring terminals and the integrated earthing bar ensures a stable electrical connection and enhances safety in the event of a fault. The socket outlet is designed for indoor use and is not suitable for outdoor applications or damp rooms, as no specific protection rating such as IP67 is specified. The socket outlet is not intended for use in explosive atmospheres.

General
Operating voltage250 V
Nominal current16 A
Terminal clampsSpring clamps
Conductor cross sectionup to 2.5 mm²
Connection terminalsaccording to DIN VDE 0620
MaterialBrass
Surface finishantique
Earthing barYes
