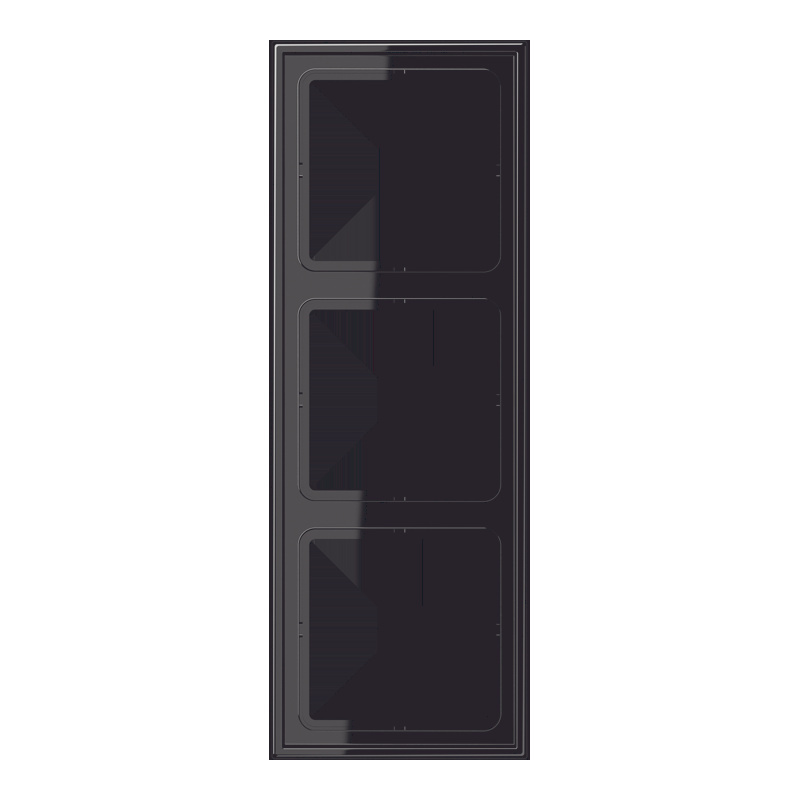

JUNG LS983SW frame 3-way LS/FD-design black

Your rating:
Average rating
product review for JUNG LS983SW frame 3-way LS/FD-design black
( 4.7 / 5 ) 10 ratings
JUNG LS983SW
This image may differ from the desired article.
JUNG LS983SWJUNG LS983SWJUNG LS983SW
18,66 EUR 19,44 EUR
( 22,21 EUR incl. VAT )
≈ £15.62  |  ≈ $20.51
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x JUNG LS983SW frame 3-way LS/FD-design black
Lieske Part No.:528285
Mfg Part No: LS983SW
UPC/EAN: 4011377868809
Weight:0.123 kg
Type:LS 983 SW
Graduated prices net
From piecesPrice per pieces
1517,82 EUR
3016,98 EUR
7016,14 EUR
10015,30 EUR

Product information for JUNG LS983SW:

The article LS983SW from JUNG is a flush-mounted frame in 3-module format, finished in black, and is intended for mounting switches, socket outlets or other electrical components indoors. It is part of the LS/FD-design series and enables flexible, modular installation through horizontal and vertical combination with other frames of the same series. The frame is made of duroplast, a robust plastic material known for its high mechanical strength and dimensional stability. The dimensions are 81 mm in width and 223 mm in height, representing a standard installation size for flush-mounted applications.

Frame 3-module

The frame is designed as a 3-module unit, meaning it provides space for three individual components, for example, three switches, a socket outlet and a switch, or a combination of multiple functions. The modular design allows for individual customization of the electrical installation, with components arranged in a row. The black finish integrates well into modern, minimalist or dark interior designs and provides a uniform visual appearance.

Applications

The frame is intended for indoor use, particularly in residential and office buildings where a clean, structured electrical installation is required. It is suitable for apartments, offices, hotels or other buildings where a modular, aesthetically pleasing installation of switches and socket outlets is desired. Use in outdoor environments is not intended, as the protection rating IP44 is only achieved when the optional sealing flange (art. no. 551 WU) is installed, which is sufficient for indoor applications.

Functions and Equipment in Detail

The frame is designed for horizontal and vertical combinations with other frames of the LS/FD-design series, enabling flexible arrangement of components. The connection is achieved via a precise mechanical interlock, ensuring a clean and stable installation. The surface is smooth and matte, allowing for easy cleaning and maintenance. The black color is light-resistant and does not fade under normal indoor conditions.

Technology Explained Simply

The frame is made of duroplast, a thermoplastic material suitable for electrical installations due to its high heat and chemical resistance, as well as its mechanical strength. The dimensions of 81 mm width and 223 mm height correspond to the standard for flush-mounted installations in Germany and allow mounting in standard plaster chases. The protection rating IP44 is only achieved when the sealing flange (art. no. 551 WU) is additionally installed, providing protection against splashing water and dust. Without this flange, the frame is not suitable for damp areas.

Compatibility and Accessories

The frame LS983SW is compatible with other frames of the LS/FD-design series, particularly with models LS982SW (2-module) and LS984SW (4-module), as well as the 1-module frame LS981SW. These can be combined horizontally or vertically to create individual arrangements. The combination is achieved through mechanical interlocking of the frames, resulting in a uniform front surface. The components installed in the frame must also belong to the LS/FD-design series to ensure a precise fit.

Installation and Mounting

Mounting is carried out using the flush-mounted method, where the frame is inserted into the designated plaster chase and screwed to the wall. The fastening is achieved via integrated mounting flanges, ensuring secure anchoring. After mounting, the desired switches or socket outlets are inserted into the frame and locked in place. The installation does not require special tools, although the use of a screwdriver or screwdriver wrench is recommended. The mounting process is standardized for electricians and professionals and is carried out in accordance with applicable electrical regulations.

Advantages in Operation

The frame provides a stable, aesthetically pleasing and modular solution for electrical installations. The use of duroplast ensures a long service life and high resistance to mechanical stress. The modular design allows flexible adaptation to different requirements without the need for additional components. The black finish offers a modern appearance that integrates well into many interior designs. The combinability with other frames in the series allows individual customization of the electrical installation without requiring additional tools or special mounting methods.

General
Frame type3-way
ColourBlack
MaterialDuroplast
Degree of protectionIP44
Combination capabilityHorizontal and vertical
SeriesLS/FD-design


Questions & answers

What is the delivery time of JUNG LS983SW frame 3-way LS/FD-design black?

The article JUNG LS983SW frame 3-way LS/FD-design black is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG LS983SW to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you JUNG LS983SW frame 3-way LS/FD-design black always at the best possible price. We can give you a discount of 2% on JUNG LS983SW frame 3-way LS/FD-design black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of JUNG LS983SW frame 3-way LS/FD-design black we can offer you a price of 17,82 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
