JUNG LS981LG frame 1-way LS/FD-design light grey

Your rating:
Average rating
product review for JUNG LS981LG frame 1-way LS/FD-design light grey
( 4.6 / 5 ) 7 ratings
JUNG LS981LG
This image may differ from the desired article.
JUNG LS981LGJUNG LS981LGJUNG LS981LG
7,10 EUR 7,40 EUR
( 8,45 EUR incl. VAT )
≈ £5.94  |  ≈ $7.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x JUNG LS981LG frame 1-way LS/FD-design light grey
Lieske Part No.:291202
Mfg Part No: LS981LG
UPC/EAN: 4011377946002
Weight:0.123 kg
Type:LS 981 LG
Graduated prices net
From piecesPrice per pieces
256,78 EUR
506,46 EUR
1006,14 EUR
2505,82 EUR

Product information for JUNG LS981LG:

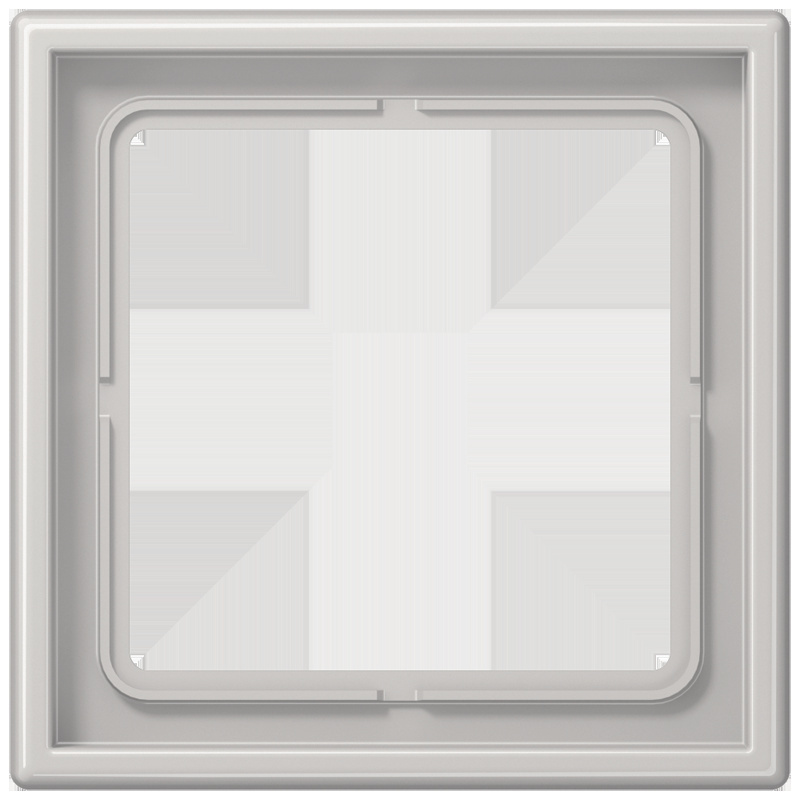

The article LS 981 LG from JUNG is a single-colour flush-mounted frame in 1-module format, finished in light grey. It belongs to the LS/FD-design product series and serves as a mounting element for switches, socket outlets or other electrical components in flush-mounted installations. The frame is designed for combination in horizontal and vertical arrangements, enabling flexible design of switch and socket fields. It is made of duroplast, a robust plastic known for its high mechanical strength and resistance to chemical influences. Dimensions are 81 mm in width and 81 mm in height, matching the standard size for single modules in flush-mounted technology.

Applications

The frame LS 981 LG is intended for use in indoor environments, particularly in residential and office buildings, where clean and aesthetically pleasing electrical installations are required. The light grey finish blends well into modern, neutral interior spaces and enables uniform design of switch and socket fields. Due to material selection and construction, it is suitable for use in dry rooms, with protection class IP44 achieved by using a sealing flange (art. no. 551 WU). This protection class prevents contact with fingers and protects against splashing water from any direction, making it suitable for damp areas such as bathrooms or kitchens, provided the sealing flange is used.

Functions and Equipment in Detail

The frame features a flat, rectangular shape with dimensions 81 × 81 mm, precisely matched to the standard modules of the LS/FD-design series. The light grey surface is matte and provides an even colour without reflections. The construction allows for clean and precise mounting in plaster, with the frame edges ensuring uniform coverage of the surrounding area. The use of duroplast ensures high mechanical stability and resistance to mechanical stress, such as during installation or daily use.

Technology Explained Simply

The frame is designed as a flush-mounted component, meaning it is recessed into the wall cladding and finishes flush with the plaster surface after installation. The duroplast material ensures long service life and resistance to moisture, temperature fluctuations, and mechanical stress. Protection class IP44, achieved by adding the sealing flange (art. no. 551 WU), protects against contact with fingers (protection class IP4x) and against splashing water from any direction (protection class IPx4). This makes the frame suitable for areas with increased humidity, provided the sealing flange is correctly installed. The light grey finish is part of the LS/FD-design system and enables uniform visual design of switch and socket fields.

Compatibility and Accessories

The frame LS 981 LG is part of JUNG’s LS/FD-design system and can be combined with other products from this series. Compatible frames for multiple modules are available, including the 2-module frame LS982LG and the 3-module frame LS983LG, also in light grey finish. These enable flexible and modular design of switch and socket fields. Combination is possible in horizontal and vertical arrangements, allowing individual adaptation to specific installations. The sealing flange (art. no. 551 WU) is optional but required to achieve protection class IP44.

Installation and Mounting

Installation takes place in the flush-mounted area, with the frame inserted into the designated recess in the wall cladding. Precise positioning and securing are done using the designated mounting aids, which may vary depending on the installation system. The flat construction ensures the frame finishes flush with the plaster surface after installation. Combination with other modules is achieved by direct arrangement side-by-side or stacked, with modules precisely aligned. Using the sealing flange requires an additional mounting step, where the flange is inserted into the recess before mounting the frame.

Operational Advantages

The frame offers high mechanical stability and long service life due to the duroplast material. The light grey finish enables uniform visual design of switch and socket fields, which is particularly beneficial in larger residential or office installations. The ability to combine in horizontal and vertical arrangements provides flexibility in planning and installation. Achieving protection class IP44 with the sealing flange extends the application range to damp rooms, allowing use in bathrooms or kitchens, provided installation instructions are followed. The modular design of the LS/FD-design system enables easy expansion and adaptation of the installation over time.

General
Degree of protectionIP44
MaterialDuroplast
ColourLight grey
Module size1-fold
SystemLS/FD-design
Combination possibilityHorizontal and vertical


Questions & answers

What is the delivery time of JUNG LS981LG frame 1-way LS/FD-design light grey?

The article JUNG LS981LG frame 1-way LS/FD-design light grey is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG LS981LG to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you JUNG LS981LG frame 1-way LS/FD-design light grey always at the best possible price. We can give you a discount of 2% on JUNG LS981LG frame 1-way LS/FD-design light grey if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of JUNG LS981LG frame 1-way LS/FD-design light grey we can offer you a price of 6,78 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
