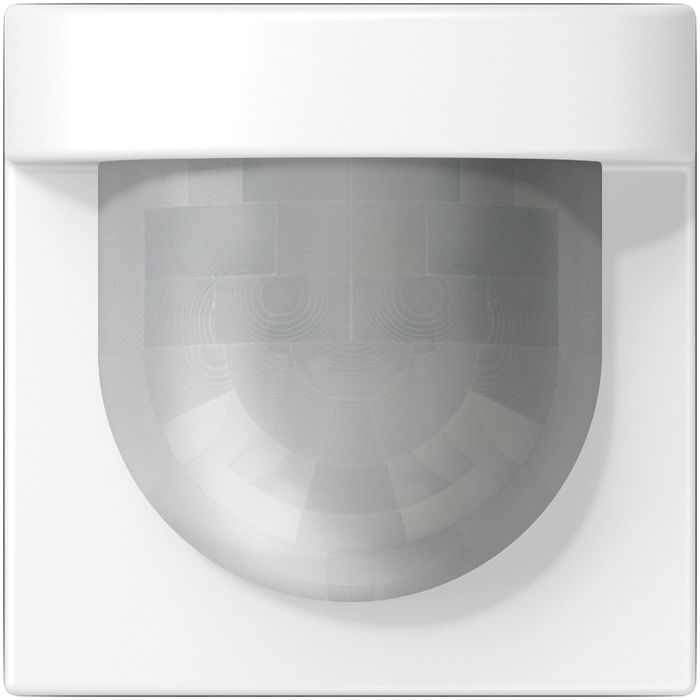

Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white
|
89,13 EUR |
|||||||||||
|
( 106,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1428309 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | LS17280WWM | ||||||||||
| UPC/EAN: | 4011377204072 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG LS17280WWM:
With sealing set Item no.: AS CD 50 DS and program-specific 'IP 44 frame', protection level'IP 44 is guaranteed.
IP-44 installation only permitted indoors
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with flush-mounted insert for switching or dimming or 3-wire extension from the LB management
Wall mounting on flush-mounted insert
Product features
Extension of the detection area in combination with 3-wire extension
Operation with 2- or 3-wire extension, rotary extension or button
Adjustable brightness threshold Adjustable
sensitivity Fixed
run-on time
Switch on with last set brightness or saved switch-on brightness, with dimming
insert Switch-on brightness can be permanently saved via extension, with dimming insert
Light can be dimmed via extension, with dimming insert
Ambient temperature: ?20 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity: 25, 50, 75, 100 %
Run-on time: approx. 2 min
Installation height: 1.10 / 2.20 m
Detection angle: 180°
Detection range (installation at 2.20 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 11 m
Sensitivity 75%: max. 13 m
Sensitivity 100%: max. 15 m
Detection range (installation at 1.10 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 8 m
Sensitivity 75%: max. 9 m
Sensitivity 100%: max. 10 m
Material: Thermoplastic, painted
Dimensions (W x H): 70 x 70 mm
Type: LS 17280 WWM
Questions & answers
What is the delivery time of Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white?
The article Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG LS17280WWM to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white always at the best possible price. We can give you a discount of 2% on Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white we can offer you a price of 83,78 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Jung LS 17280 WWM automatic switch standard 2.20m IP44 series LS snow white via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
