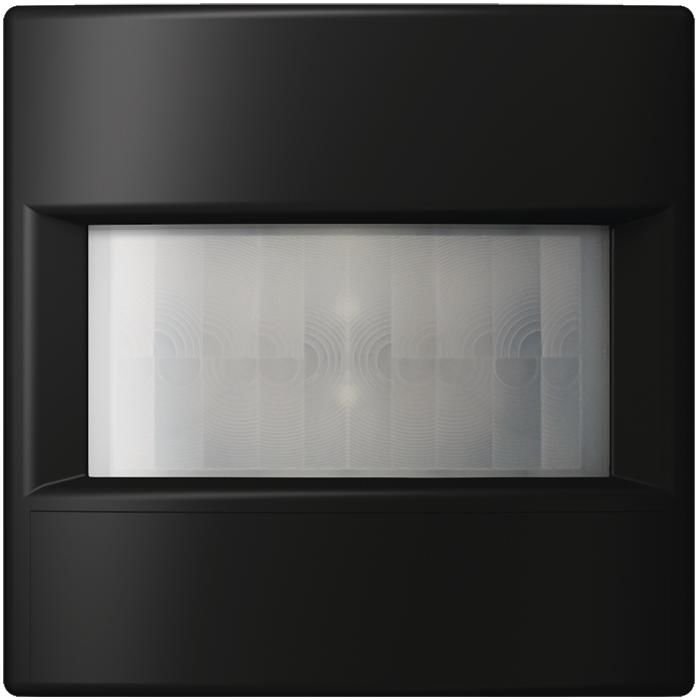

Jung LS17180SWM automatic switch 1.1m hours

for LB Management inserts 'Light' Item no.: 1701 SE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with flush-mounted insert for switching or dimming or 3-wire extension from the LB Management
Wall mounting on flush-mounted insert
Product features
Extension of the detection area in combination with 3-wire extension
Operation with 2- or 3-wire extension, rotary extension or button
Adjustable brightness threshold
Adjustable sensitivity Fixed
run-on time
Switch on with last set brightness or saved switch-on brightness, with dimming insert
Switch-on brightness can be permanently saved via extension, with dimming insert
Light can be dimmed via extension, with dimming insert
Cover for restricting the detection area
Ambient temperature: ?20 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity: 25, 50, 75, 100 %
Follow-up time: approx. 2 min
Installation height: 1.10 m Detection
angle: 180°
Detection range
Sensitivity 25 %: max. 8 m
Sensitivity 50 %: max. 13 m
Sensitivity 75 %: max. 26 m
Sensitivity 100 %: max. 32 m
Dimensions (W x H): 70 x 70 mm
Type: LS17180SWM
