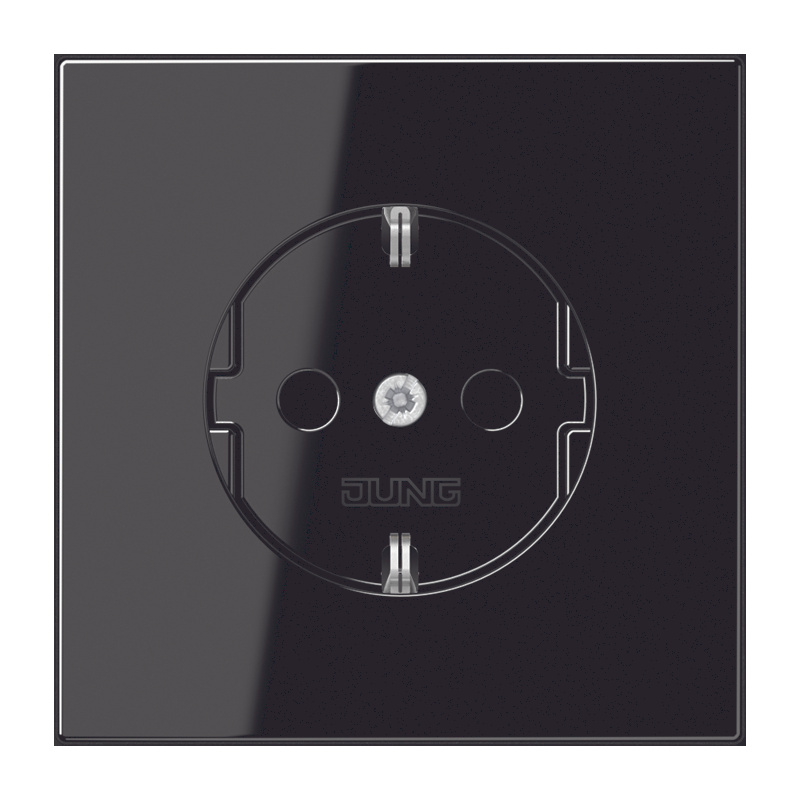

JUNG LS1520KISW SCHUKO socket black

Your rating:
Average rating
product review for JUNG LS1520KISW SCHUKO socket black
( 4.8 / 5 ) 6 ratings
JUNG LS1520KISW
This image may differ from the desired article.
JUNG LS1520KISWJUNG LS1520KISWJUNG LS1520KISW
16,48 EUR 17,18 EUR
( 19,61 EUR incl. VAT )
≈ £13.79  |  ≈ $18.11
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x JUNG LS1520KISW SCHUKO socket black
Lieske Part No.:363720
Mfg Part No: LS1520KISW
UPC/EAN: 4011377063075
Weight:0.1018 kg
Type:LS1520KISW
Graduated prices net
From piecesPrice per pieces
1515,74 EUR
3015,00 EUR
7014,26 EUR
10013,51 EUR

Product information for JUNG LS1520KISW:

The JUNG LS1520KISW is a flush-mounted SCHUKO® socket outlet in black, designed for installation in walls and ceilings. It features an integrated raised shock protection, referred to as Safety Plus, making it suitable for use in areas requiring enhanced safety. The socket outlet is rated for an operating voltage of 250 V and a nominal current of 16 A, making it suitable for general household and commercial applications. The construction from duroplast ensures high mechanical stability and weather resistance, enabling reliable long-term operation even in rooms with increased stress.

Applications

The socket outlet is intended for use in residential and commercial buildings, particularly in rooms where enhanced protection against contact with live parts is required. The integrated Safety Plus shock protection reduces the risk of electric injury, especially for children or in cases of improper use. The socket outlet is suitable for installation in drywall, plaster layers, or other common flush-mounted constructions. The dimensions of 70 mm width and 70 mm height correspond to the standard format for flush-mounted socket outlets in Germany.

Functions and Equipment in Detail

The LS1520KISW features spring clamps designed for rigid and uncoated flexible conductors up to 2.5 mm². These clamps enable a secure and reliable connection of electrical conductors. The connection terminals comply with the DIN VDE 0620 standard, which applies to electrical connection technology in electrical installations. The earthing strip ensures that the mounting ring, claws, and claw screws are integrated into the protective measure, providing secure earthing and enhancing electrical safety.

Technology Explained Simply

The Safety Plus shock protection is a design feature that shapes the socket opening to prevent direct contact with live parts (power supply) by fingers or objects. This is particularly important in rooms with high usage frequency or where children are present. The spring clamps allow for quick and secure connection of conductors without additional tools, with a maximum cross-section of 2.5 mm² sufficient for most standard installations. The material duroplast is a thermosetting plastic resin that is heat-resistant, dimensionally stable, and resistant to mechanical stress.

Compatibility and Accessories

The socket outlet is designed for use with standard flush-mounted installation components. It is compatible with common wall and ceiling installations in the electrical trade.

Mounting and Installation

Installation is carried out using the flush-mounted method, where the socket outlet is installed into a suitably prepared recess in the plaster or drywall. The claw screws and mounting ring enable secure fastening in the flush-mounted installation. Earthing is achieved via the integrated earthing strip, which connects all metallic parts of the socket outlet to the protective conductor. Installation must comply with applicable VDE regulations and local electrical installation guidelines.

Operational Advantages

The socket outlet offers high safety due to the integrated Safety Plus shock protection and secure earthing. The spring clamps simplify installation and ensure a stable electrical connection. The duroplast material ensures long service life and resistance to mechanical and chemical stresses. The standard dimensions of 70 x 70 mm allow for easy integration into existing installations.

General
Degree of protectionSafety Plus
Operating voltage250 V
Nominal current16 A
Conductor cross section2,5 mm²
Connection terminalsaccording to DIN VDE 0620
MaterialDuroplast


Questions & answers

What is the delivery time of JUNG LS1520KISW SCHUKO socket black?

The article JUNG LS1520KISW SCHUKO socket black is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG LS1520KISW to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you JUNG LS1520KISW SCHUKO socket black always at the best possible price. We can give you a discount of 2% on JUNG LS1520KISW SCHUKO socket black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of JUNG LS1520KISW SCHUKO socket black we can offer you a price of 15,74 EUR per piece. The more you buy, the cheaper the article will be.
