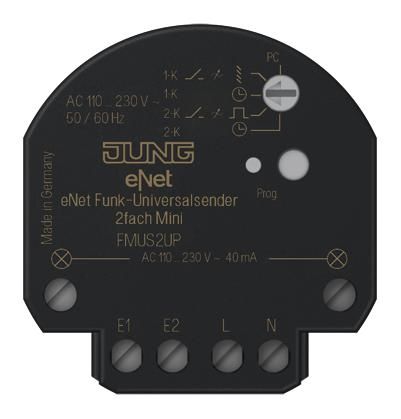

JUNG FMUS2UP radio universal transmitter, 2channel (90-230V)

2-fold
new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Transmitter for radio transmission of switching, dimming, blind movement and scene commands
Control via button, switch, blind button or blind switch or other devices with a touch or switch contact
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Operation with radio actuators from the eNet system
Product features
Detection of voltage levels and changes at the input
Transmission behavior can be adjusted
Connection for indicator lamp ? e.g. for connecting a button with a separate signaling contact (item no. 534 U)
Display of transmission status with status LED or signaling lamp
Operating modes, adjustable with operating mode switch:
1-way switching/dimming/blind
1-way automatic function
2-way switching/dimming/button operation
2-way automatic function
Can be adjusted with the eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Scenes: All on, all off, individual scenes
2-way blind
Operating locks
Setting up connections enabled/blocked
Status for forced operation
Repeater function
Update of the device software
One- and two-surface operation
The operation of functions or electrical consumers depends on the application and the connected components.
When switches are connected, operation follows the usual switch function. When
buttons are connected, two operating types are common:
Single-surface operation Lighting: Switching a light on/off or dimming it brighter/darker is done alternately by repeatedly pressing the relevant button.
Two-surface operation of lighting: Two buttons form a pair of functions. Pressing the left button switches/dims a light on/brighter, pressing the right button off/darker.
Single-surface operation of blinds: The blinds are moved up or down alternately by repeatedly pressing the relevant button.
Two-surface operation of blinds: Two buttons form a pair of functions. Pressing the left button moves a blind up, pressing the right button moves it down.
Nominal voltage: AC 110 ... 230 V ~, 50/60 Hz
Standby power: 0.5 W
Ambient temperature: ?25 ... +70 °C
Inputs
Cable length: max. 100 m
Input current at nominal voltage: approx. 2 mA
Signal duration: min. 200 ms
Output Indicator lamp
Nominal voltage (switching voltage): AC 110 ... 230 V ~
Output current: 40 mA
Connection type: screw terminals
single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 23 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in the open field: typically 100 m
Receiver category: 2
