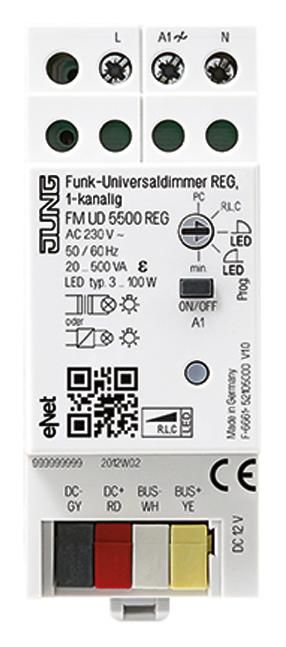

JUNG FMUD5500REG radio universal dimmer, MDRC 1kanalig

REG housing 2 HP
new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
Operation with power supply 12 V REG (item no. NT 1220 REG VDC) and eNet radio receiver module REG (item no. FM FK 32 REG) or eNet server
Operation with suitable eNet radio transmitters
Installation on top hat rail according to DIN EN 60715 in sub-distribution board
Product features
Switching on by means of lamp-protecting soft start
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Scene operation possible
Status display with LED
Status feedback to radio transmitter
Can be switched with Prog button
Electronic Short-circuit protection with permanent shutdown after 7 seconds at the latest
Electronic overtemperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power expansion possible with power additives (item no. ULZ 1755 REG)
Optional accessories: LED compensation module, item no.: KM LED 230 U
Can be set with eNet server:
Maximum
brightness Dimming speed
Switch-
on/off delay Dimming up/down ramp
Switch-off advance warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Reading out error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Power loss: max. 4 W
Standby power: max. 0.3 W
Ambient temperature: ?5 ... +45 °C
Connected load at 35 °C
Power specifications including transformer power loss.
Operate inductive transformers with at least 85% of the nominal load.
With a mixed ohmic-inductive load, the ohmic load should be max. 50%. Otherwise, the dimmer may be incorrectly calibrated.
Incandescent lamps: 20 ... 500 W
HV halogen lamps: 20 ... 500 W
Electronic transformers: 20 ... 500 W
Electronic transformers with LV LED: typically 20 ... 100 W
Inductive transformers: 20 ... 500 VA
Inductive transformers with NV-LED: typically 20 ... 100 VA
HV-LED lamps dimmable: typically 3 ... 100 W
Compact fluorescent lamps dimmable: typically 3 ... 100 W
When setting 'LED trailing edge', the maximum connected load for HV-LED lamps and electronic transformers with NV-LED is doubled.
Ohmic-inductive: 20 ... 500 VA
Ohmic-capacitive: 20 ... 500 VA
Capacitive-inductive: not permitted
Ohmic and HV-LED: typically 3 ... 100 W
Ohmic and compact fluorescent: typically 3 ... 100 W
Power reduction per 5 °C above 35 °C: ?5 %
Power additives: see power additive instructions
Connection outputs
Connection type: screw
terminals single-wire: 1 x 1.5 ... 4 mm2
fine-wire without wire end ferrule: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Contact type: ?
Length of load cable per channel: max. 100 m
Installation width: 36 mm (2 HP)
Bus cable
Nominal voltage: DC 12 V SELV
Current consumption: 10 mA
Bus connection: Connection terminal
Cable length: max. 3 m
