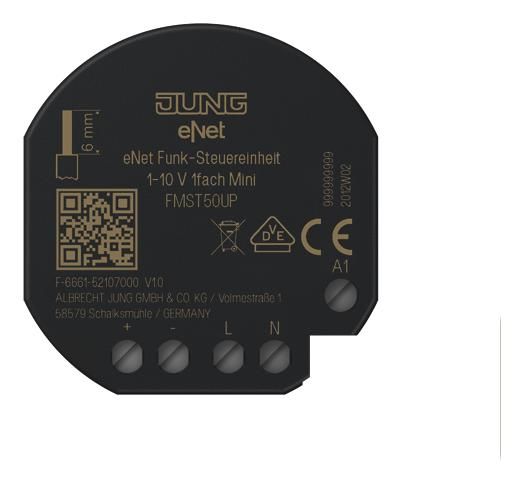

Jung FMST50UP radio control unit, 1-10V
|
146,04 EUR |
|||||||||||
|
( 173,79 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 166804 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FMST50UP | ||||||||||
| UPC/EAN: | 4011377086883 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Jung FMST50UP:
Intended use
Switching and brightness adjustment of lights with 1-10 V interface
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Scene operation possible
Status display of the 1-10 V participants via LED
Status feedback to radio transmitter
1-10 V participants can be switched with the Prog button
1-10 V interface is protected against polarity reversal
Can be set with eNet server:
Maximum
brightness Dimming speed
Switch-on/off delay Dimming
up/down ramp
Switch-off warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Standby power: max. 0.5 W
Ambient temperature: ?25 ... +70 °C
Contact type: µ
Control voltage: 0.5 ... 11 V
Control current: max. 50 mA
Switching current
ohmic: 6 A
Fluorescent lamps: 3 AX
Connected load
ohmic load: 1380 W
Capacitive load: 690 VA (560 µF)
Connection type: Screw
terminals single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Total length of load cable: max. 100 m
Total length of control cable: max. 100 m
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typ. 100 m
Receiver category: 2
