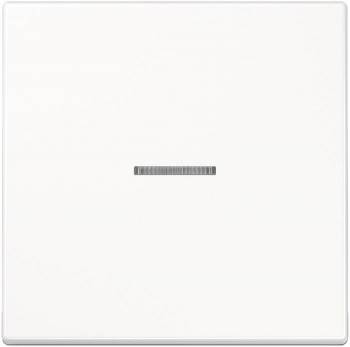

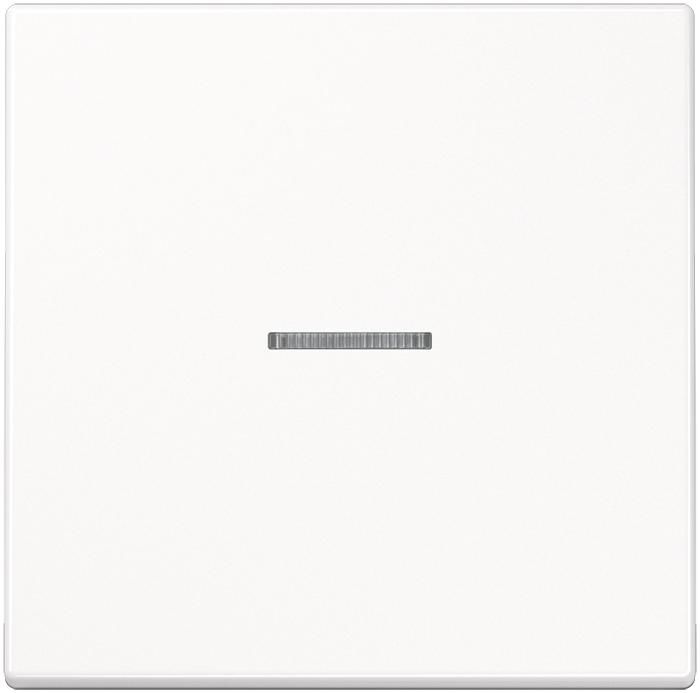

Jung FMLS1700WW eNet radio control button standard

for LB management inserts 'blinds' Item no.: 1730 JE and 1731 JE
for LB management inserts 'light' Item no.: 1701 SE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE
Intended use
Manual, radio and time-controlled operation of e.g. blinds, roller shutters, awnings, lighting or fans
Transmitter for radio transmission of switching, dimming and blind commands
Operation on switching, dimming or blind insert or extension 3-wire from the LB management
Product features
Status feedback to radio transmitter
Status display with LED
Night mode
Evaluation of the extension inputs
Functions in combination with blind insert
Positioning of blinds via scene call
Position for sun protection and twilight
Running time and ventilation position of the blind can be saved
Functions in combination with light insert
Scene operation possible
Switch-on brightness can be saved permanently when combined with flush-mounted inserts for dimming
Functions in combination with switch insert Relay 2-channel
Output a2 switches depending on output a1 e.g. to switch ventilation on depending on the lighting and switch it off with a delay.
Switch-on delay for output a2 adjustable
Follow-up time for output a2 adjustable
Can be set with eNet server from version 2.2 (depending on use):
Repeater function
Slat reversal time/fabric tautness
time Reversal time when changing direction
Direction of travel can be inverted
Operating
locks Deactivate extension evaluation
Position for sun protection, twilight, lock-out protection and wind alarm
Maximum brightness
Minimum
brightness Dimming speed
Switch-on/off delay Dimming
up/down ramp
Switch-off warning Permanently on
, permanently off
Hotel function
Follow-up time
Light control
In conjunction with the standard control button, the eNet server must have at least version 2.3.
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM)
Update of device software
Read error memory
Type: FMLS1700WW
