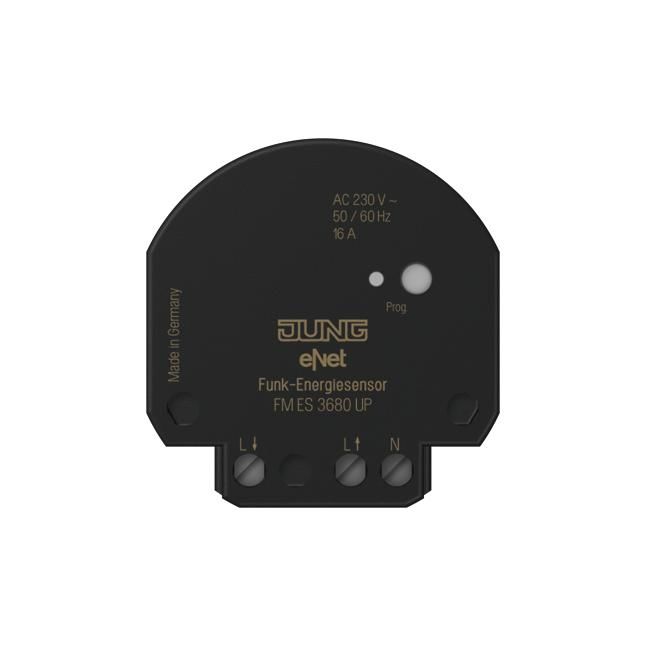

JUNG FMES3680UP wireless energy sensor
|
99,10 EUR |
|||||||||||
|
( 117,93 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 876231 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FMES3680UP | ||||||||||
| UPC/EAN: | 4011377086678 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG FMES3680UP:
Intended use
Energy sensor for radio transmission of energy values
Sensor for load-dependent control of eNet actuators with eNet server
Operation exclusively with eNet server
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for suspended ceilings
Product properties
Calculation of the active power and active energy
Event- or time-controlled sending of measured value telegrams to the eNet server
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Nominal voltage: AC 230 V ~, 50/60 Hz
Nominal load current: 16 A
Peak current (1 s): 80 A
Peak current (1 min): 24 A
Power consumption: max. 0.5 W
Transmission interval: 1 ... 60 min
Ambient temperature: ?25 ... +70 °C
Connection type: screw terminals
, single-wire: 1 x 0.75 ... 4 mm2
, fine-wire with ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 23 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmitting power: max. 20 mW
Transmitting range in free field: typically 100 m
Receiver category: 2
Measuring ranges
Current: 0 mA ... 16 A
Accuracy (current): ± 0.5 % of the current value and ± 8 mA
Voltage: 207 ... 250 V
Accuracy (voltage): ± 0.5 % of the current. Value
Transmitted power and energy values
Active power: ?4,000 ... 4,000 W
Apparent power: 0 ... 4,000 VA
Reactive power: ?4,000 ... 4,000 var
Accuracy (power): ± 0.5 % of the current value and ± 2 W/VA/var
Active energy: ?99,999 ... 99,999 kWh
Questions & answers
What is the delivery time of JUNG FMES3680UP wireless energy sensor?
The article JUNG FMES3680UP wireless energy sensor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG FMES3680UP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you JUNG FMES3680UP wireless energy sensor always at the best possible price. We can give you a discount of 2% on JUNG FMES3680UP wireless energy sensor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of JUNG FMES3680UP wireless energy sensor we can offer you a price of 96,13 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of JUNG FMES3680UP wireless energy sensor via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
