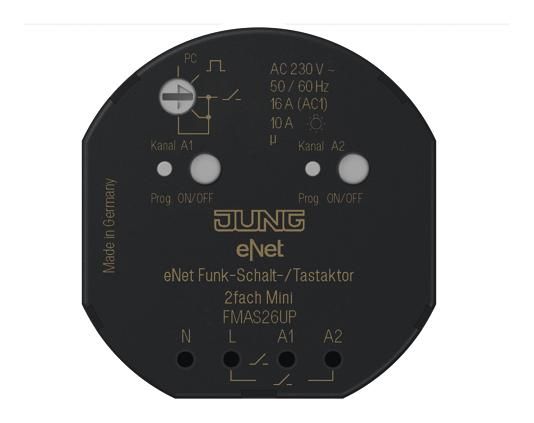

JUNG FMAS26UP radio actuator 2channel
|
130,39 EUR |
|||||||||||
|
( 155,16 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Lieske Part No.: | 876246 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FMAS26UP | ||||||||||
| UPC/EAN: | 4011377086869 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG FMAS26UP:
Intended use
Switching of lighting and single-phase motors
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Operating mode switch for switching/touch actuator switching together for both outputs or parameterization via eNet server
Independent switching of two electrical loads
Status feedback to radio
transmitter Scene operation possible
Status display with LED
Switching mode:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Touch mode:
The relay contact remains closed as long as switch-on or switch-off telegrams are received
The maximum switch-on time is 60 seconds
Can be set for each output with eNet server:
Flashing function
Run-on time
Switch-on/switch-off delay
Normally open or normally closed operation
Switch-off warning
Minimum Switching repeat time
Operating locks
Permanently on, permanently off
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Ambient temperature: ?25 ... +70 °C
Switching current at 35 °C
Ohmic: 16 A (AC1)
For switching current
10 A Connecting cable 2.5 mm2
Current carrying capacity of device: ? 16 AFluorescent lamps: 4 AX
Contact type: µ
Standby power: max. 0.5 W
Connected load per output at 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 500 W
Compact fluorescent lamps: typically 500 W
Fluorescent lamps uncompensated: 920 VA
Motors: 450 VA
Capacitive load: 690 VA (560 µF)
Connection type: Screw
terminals single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typically 100 m
Receiver category: 2
