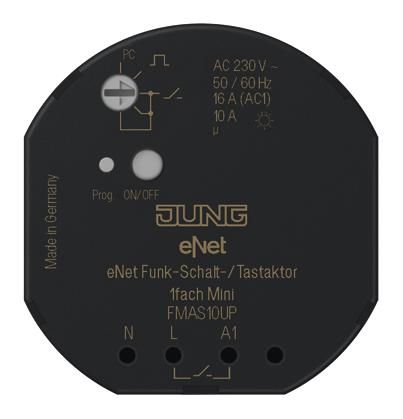

JUNG FMAS10UP radio actuator, 1-channel
|
107,74 EUR 112,28 EUR |
|||||||||||
|
( 128,21 EUR incl. VAT ) ≈ £92.12 | ≈ $122.39 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 876248 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FMAS10UP | ||||||||||
| UPC/EAN: | 4011377086838 | ||||||||||
| Weight: | 0.945 kg | ||||||||||
| Type: | FMAS10UP | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Switch Electronics from JUNGFurther products in category Switch Electronics
All products of JUNG
Product information for JUNG FMAS10UP:
New system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching of lighting
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Operating mode switch for switching/touch actuator switching or parameterization via eNet server
Status feedback to radio transmitter
Scene operation possible
Output can be switched with Prog button
Status display with LED
Switching mode:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Touch mode:
The relay contact remains closed as long as switch-on or switch-off telegrams are received
The maximum switch-on time is 60 seconds Can be
set with eNet server:
Flashing function
Follow-up time
Switch-on/switch-off delay Normally
open or normally closed operation
Switch-off warning
Minimum switching repetition time
Operating locks
Permanently on, permanently off
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Ambient temperature: ?25 ... +70 °C
Switching current at 35 °C
Ohmic: 16 A (AC1)
With switching current
Contact type: µ
Standby power: 0.5 W
Connected load at 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 500 W
Compact fluorescent lamps: typically 500 W
Uncompensated fluorescent lamps: 920 VA
Capacitive load: 690 VA (560 µF)
Connection type: screw terminals
single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typ. 100 m
Recipient category: 2
Intended use
Switching of lighting
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Operating mode switch for switching/touch actuator switching or parameterization via eNet server
Status feedback to radio transmitter
Scene operation possible
Output can be switched with Prog button
Status display with LED
Switching mode:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Touch mode:
The relay contact remains closed as long as switch-on or switch-off telegrams are received
The maximum switch-on time is 60 seconds Can be
set with eNet server:
Flashing function
Follow-up time
Switch-on/switch-off delay Normally
open or normally closed operation
Switch-off warning
Minimum switching repetition time
Operating locks
Permanently on, permanently off
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Ambient temperature: ?25 ... +70 °C
Switching current at 35 °C
Ohmic: 16 A (AC1)
With switching current
10 A Connection cable 2.5 mm2
Fluorescent lamps: 4 AXContact type: µ
Standby power: 0.5 W
Connected load at 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 500 W
Compact fluorescent lamps: typically 500 W
Uncompensated fluorescent lamps: 920 VA
Capacitive load: 690 VA (560 µF)
Connection type: screw terminals
single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typ. 100 m
Recipient category: 2
