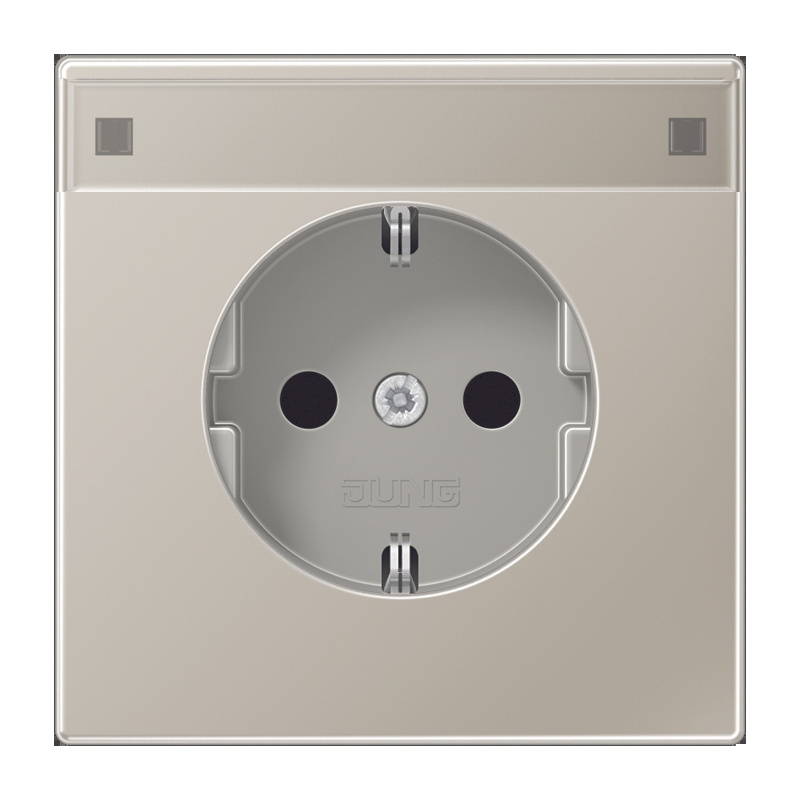

JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel

Your rating:
Average rating
product review for JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel
( 4.3 / 5 ) 6 ratings
JUNG ES1520KINA
This image may differ from the desired article.
JUNG ES1520KINAJUNG ES1520KINA
29,18 EUR 30,41 EUR
( 34,72 EUR incl. VAT )
≈ £24.31  |  ≈ $32.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel
Lieske Part No.:182972
Mfg Part No: ES1520KINA
UPC/EAN: 4011377063518
Weight:0.123 kg
Type:ES1520KINA
Graduated prices net
From piecesPrice per pieces
1027,87 EUR
2526,55 EUR
5025,24 EUR
7523,93 EUR

Product information for JUNG ES1520KINA:

The JUNG ES1520KINA is a SCHUKO® socket outlet made of stainless steel, designed for flush mounting in indoor environments. The device features an integrated raised shock protection, referred to as Safety Plus, and is equipped with a label field measuring 12 x 55 mm. The socket outlet is designed for use in electrical installations in accordance with applicable standards and offers a robust, long-lasting construction made of stainless steel 1.4303 X4 CrNi 18-12, suitable for its corrosion resistance and mechanical strength.

Applications

The socket outlet is intended for use in residential and commercial buildings where high mechanical durability and aesthetic quality are required. Due to the stainless steel material, it is particularly suitable for areas with increased humidity or aggressive environments, such as kitchens, bathrooms, or industrial rooms. The integrated safety function Safety Plus protects against accidental contact with the socket contacts, which is especially beneficial in public or family-oriented spaces.

Functions and Equipment in Detail

The ES1520KINA features spring clamps designed for rigid and uncoated flexible conductors up to 2.5 mm². The connection terminals comply with DIN VDE 0620, ensuring a safe and reliable electrical connection. The earthing strip ensures that the mounting ring, claws, and claw screws are included in the protective measure, enhancing electrical safety. The label field allows for marking the socket outlet to indicate its function within the building.

Technology Explained Simply

The Safety Plus shock protection reduces the risk of electrical contact with the socket contacts by mechanically restricting access to the poles. This is particularly important in environments with children or frequent use. The spring clamps enable quick and secure connection of conductors without additional tools, with a maximum cross-section of 2.5 mm² sufficient for most standard installations. The material stainless steel 1.4303 X4 CrNi 18-12 is resistant to rust and chemical influences, extending the service life of the socket outlet.

The socket outlet has a square shape with dimensions of 70 mm width and 70 mm height, matching the standard size for flush-mounted socket outlets. The surface is smooth and reflects the characteristics of stainless steel, allowing it to blend aesthetically into high-quality interior designs.

Compatibility and Accessories

As a replacement part, a transparent cover is available, offered under article number M 20 NA. This cover can be used for protective or decorative purposes, for example, to protect the socket outlet from dirt or to emphasize its appearance. The socket outlet is designed for use in standard flush-mounted installations and does not require special mounting aids.

Mounting and Installation

Installation is carried out in the usual manner into a flush-mounted box, with the spring clamps securely holding the conductors. The earthing strip ensures a safe connection of all metallic components to the protective conductor. The socket outlet is designed for use in electrical systems in accordance with DIN VDE 0620, ensuring compliance with safety regulations.

Operational Advantages

The combination of stainless steel construction, integrated shock protection, and standard-compliant connection technology provides high operational safety and longevity. The socket outlet requires minimal maintenance and is resistant to mechanical stress and environmental influences. The labeling option via the label field facilitates orientation within the building, especially in complex systems or when multiple socket outlets are present in a room.

General
Degree of protectionSafety Plus -
MaterialStainless steel 1.4303 X4 CrNi 18-12 -
Label field12 x 55 mm -
Connection terminalsaccording to DIN VDE 0620 -
Spring clampsfor rigid and untreated flexible conductors up to 2.5 mm² -
Spare parttransparent cover M 20 NA -


Questions & answers

What is the delivery time of JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel?

The article JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG ES1520KINA to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel always at the best possible price. We can give you a discount of 2% on JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of JUNG ES1520KINA SCHUKO socket outlet lettering field LS stainless steel we can offer you a price of 27,87 EUR per piece. The more you buy, the cheaper the article will be.
