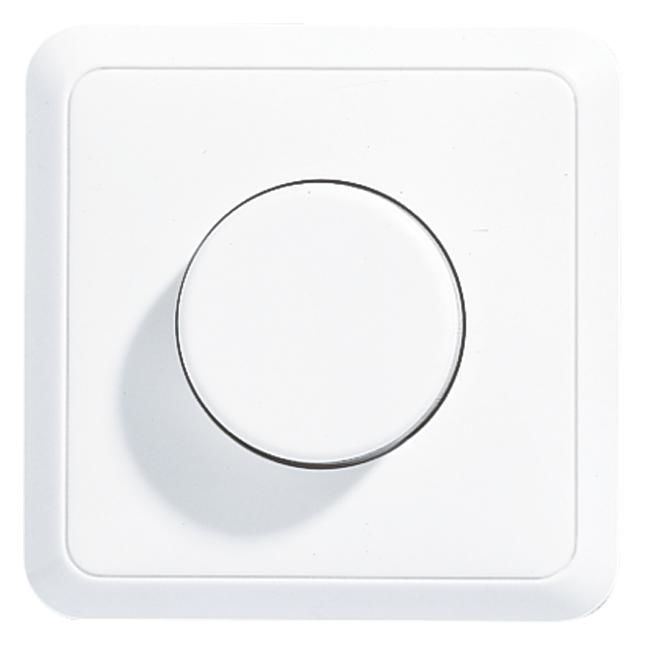

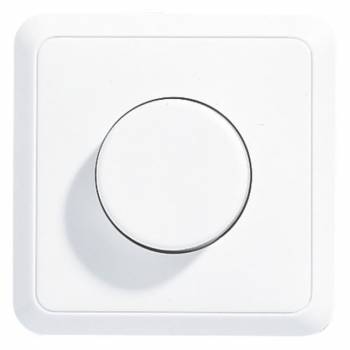

JUNG CD5544.03VWW rotary dimmer LED with rotary off switch
|
38,86 EUR 40,50 EUR |
|||||||||||
|
( 46,24 EUR incl. VAT ) ≈ £32.95 | ≈ $43.56 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1779364 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CD5544.03VWW | ||||||||||
| UPC/EAN: | 4011377167087 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | CD5544.03VWW | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG CD5544.03VWW:
without extension input.
Can only be installed as a single device, not suitable for combinations!
Intended use
Switching and dimming incandescent lamps, HV halogen lamps and phase-cut dimmable HV LED lamps
Operation with suitable cover
Installation in device box in accordance with EN 60670-1
Product properties
Dimming principle Phase-cut
Short-circuit protection by means of a fine-wire fuse
Nominal voltage: AC 230 V ~
Mains frequency: 50 Hz
Standby power: approx. 0.2 W
Power loss: approx. 3.7 W
Ambient temperature: ?5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 200 W
HV halogen lamps: 20 ... 200 W
HV LED lamps dimmable: typically 3 ... 40 W
Ohmic and HV LED: typically 3 ... 40 W
Power reduction
for surface mounting: ?5 %
per 5 °C exceeding 35 °C: ?10 %
for installation in wood or drywall: ?15 %
Fine-wire fuse: T 800 mA H 250
Connection type: screw terminals
single-wire: 1 x 0.5 ... 2.5 mm2
fine-wire without wire end ferrule: 1 x 0.5 ... 2.5 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 2.5 mm2
changeover circuit: not possible
