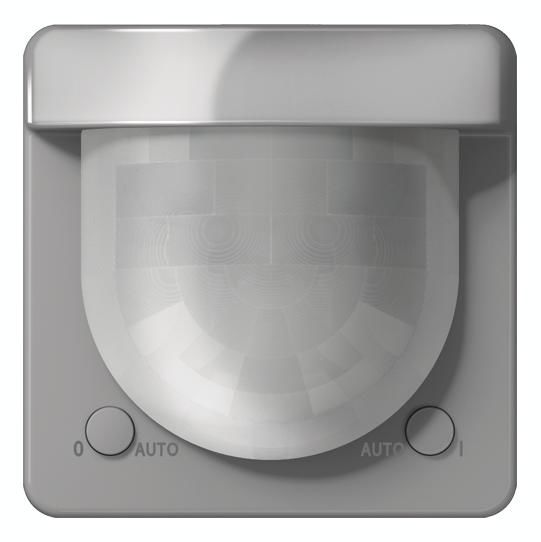

Jung CD3281-1GR KNX automatic switch universal 2.20 m
|
180,84 EUR |
|||||||||||
|
( 215,20 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1351825 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CD3281-1GR | ||||||||||
| UPC/EAN: | 4011377156135 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG CD3281-1GR:
for bus coupler 3 Item no.: 2073 U
With sealing set Item no.: AS CD 50 DS and program-specific 'IP 44 frame', protection level'IP 44 is guaranteed.'IP 44 installation permitted indoors and outdoors
ETS product family Phys. Sensors
Product type motion detector
Intended use
Control of lighting and other electrical consumers as required
Installation on bus coupler 3 (item no.: 2073 U)
Product features
Automatic switching of lighting, depending on heat movement and ambient brightness
2 PIR sensors
Detection range 180°
Integrated brightness sensor
Switch-off brightness adjustable
Output functions: switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode specification for room temperature controller
Extension of the detection range by operating several devices as main and extension units
Sensitivity can be adjusted manually
Status LEDs
Manual switching on the device
Additional features 'Universal' version:
Manual operation with IR remote control possible (item no. KNX PM FB IR)
Detection field can be dimmed in half (parameter setting)
5 function blocks for motion detection, each with 2 outputs
Function blocks can be switched, e.g. for day/night operation
Brightness sensor function with 3 limit values
Alarm message when disconnected from the bus coupler
Temperature measurement
Current consumption KNX: 3 ... 10 mA
Ambient temperature: ?25 ... +55 °C
Storage/transport temperature: ?25 ... +70 °C
Relative humidity: 10 ... 100 % (no condensation)
Protection class: III
Installation height: 1.10 / 2.20 m
Detection angle: 180°
Brightness sensor
measuring range: approx. 1 ... 1,000 lx
Temperature sensor
measuring range: approx. ?20 ... +55 °C
Accuracy: ± 1 K
Type: CD3281-1GR
Questions & answers
What is the delivery time of Jung CD3281-1GR KNX automatic switch universal 2.20 m?
The article Jung CD3281-1GR KNX automatic switch universal 2.20 m is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG CD3281-1GR to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung CD3281-1GR KNX automatic switch universal 2.20 m always at the best possible price. We can give you a discount of 2% on Jung CD3281-1GR KNX automatic switch universal 2.20 m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Jung CD3281-1GR KNX automatic switch universal 2.20 m we can offer you a price of 178,13 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
