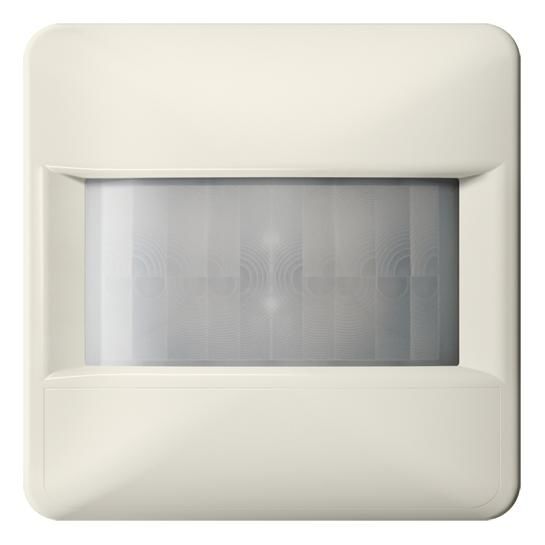

Jung CD17180WU automatic switch 1.1m Std.IP44

for LB Management inserts 'Light' Item no.: 1701 SE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
IP-44 installation only permitted indoors
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with flush-mounted insert for switching or dimming or 3-wire extension from the LB Management
Wall mounting on flush-mounted insert
Product features
Extension of the detection area in combination with 3-wire extension
Operation with 2- or 3-wire extension, rotary extension or button
Adjustable brightness threshold
Adjustable sensitivity
Fixed run-on time
Switch on with last set brightness or saved switch-on brightness, with dimming insert
Switch-on brightness can be permanently saved via extension, with dimming insert
Light can be dimmed via extension, with dimming insert
Cover to limit the detection range
Ambient temperature: ?20 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity: 25, 50, 75, 100 %
Follow-up time: approx. 2 min
Installation height: 1.10 m
Detection angle: 180°
Detection range
Sensitivity 25 %: max. 8 m
Sensitivity 50 %: max. 13 m
Sensitivity 75 %: max. 26 m
Sensitivity 100 %: max. 32 m
Dimensions (W x H): 67 x 67 mm
Type: CD17180WU
