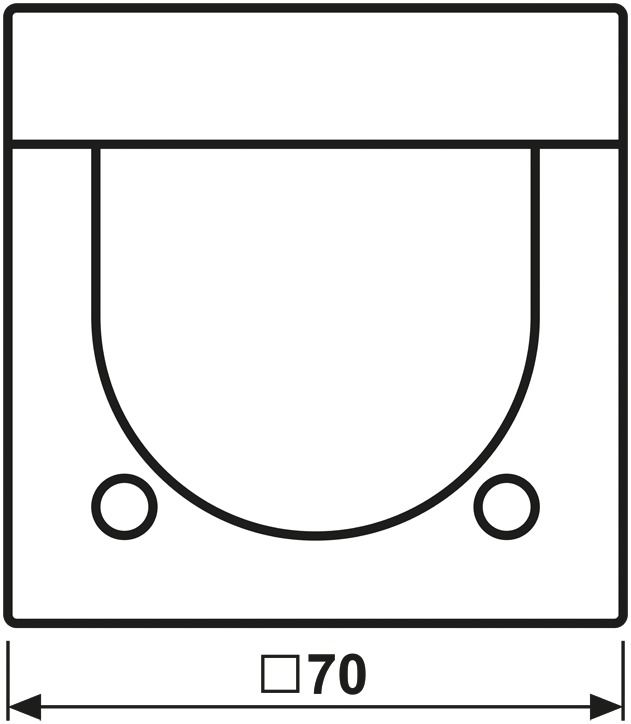

Jung BTLS17182SW JUNG HOME motion detector 2.2 m

JUNG HOME motion detector 2.2 m
JUNG HOME motion detector 2.2 m
Thermoplastic (break-proof) high gloss
Intended use
¦ Automatic switching of lighting, depending on heat movement and ambient brightness
¦ Wireless linking with devices in the JUNG HOME system
¦ Operation with system insert for switching or dimming or 3-wire extension
¦ Wall mounting on system insert
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ 2 buttons for permanent ON/OFF or automatic operation
¦ Extension of the detection area by combining several JUNG HOME motion detectors or via extension input
¦ Multi-coloured status display
¦ Locking of local operation
¦ Free linking of the motion sensor with load output in the system insert or wirelessly with other JUNG HOME devices or for calling up a scene
¦ Up to 16 time programs control the functions of the respective system insert (switching on, switching off or dimming)
¦ Staircase light function (automatic switch-off) with switch-off warning
¦ Follow-up time, switch-on and switch-off delay
¦ Activate/deactivate automatic functions via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Maximum brightness and minimum brightness adjustable, with dimming insert
¦ Switch on with last brightness or fixed switch-on brightness, with dimming insert
¦ Integration of the load in areas (groups), central functions and scenes
¦ Evaluation of the extension inputs (if available) to control the system use
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Updateable via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Dynamic follow-up time
¦ Lock function and forced control: permanent ON/OFF or ON/OFF for a fixed time
¦ Night light function with period for Brightness reduction, with dimming insert
¦ Hotel function (orientation light instead of OFF), with dimming insert
¦ Warm dimming (changing the colour temperature with simultaneous increase in brightness), with DALI insert
¦ Calling up a scene through movement
With sealing set item no.: AS CD 50 DS and program-specific IP44 frame, protection level IP44 is guaranteed.
Technical data
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Protection level: IP44
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Detection angle: 180°
Installation height: 1.10 / 2.20 m
Sensitivity: 0, 25, 50, 75, 100 %
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Follow-up time: approx. 1 s ... 240 min
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m
Material: Thermoplastic
Color: black
Manufacturer: JUNG
Type: BTLS17182SW
