Jung BTLC17102P228 JUNG HOME button 2-fold with arrow symbols

JUNG HOME 2-way button with arrow symbols
JUNG HOME 2-way button with arrow symbols,
matt varnished
Intended use
¦ Manual and automatic operation of e.g. B. Blinds, roller shutters, awnings, lighting or fans
¦ Wireless linking with devices from the JUNG HOME system
¦ Operation with system insert for switching, dimming, blinds or extension 3-wire
product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Operation from above, below and over the entire surface with up to 2 linked functions per rocker
¦ Use buttons to control areas (groups) or to call up scenes
¦ Use buttons to operate wirelessly linked JUNG HOME devices
¦ Multi-coloured status display with optional night mode
¦ Feedback of the load status via status LED
¦ Locking of local operation
¦ Integration of the load into areas (groups), central functions and scenes
¦ Up to 16 time programs control the functions of the respective system insert (switching on, switching off, dimming, moving blinds, adjusting temperature)
¦ Staircase light function (automatic switch-off) with switch-off warning
¦ Follow-up time, switch-on and switch-off delay
¦ Activate/deactivate automatic functions via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Maximum brightness and minimum brightness adjustable, with dimmer insert
¦ Switch on with last brightness or fixed switch-on brightness, with dimmer insert
¦ Ventilation position, running time, slat reversal time, reversal time for direction change and inverse operation adjustable, with blind insert
¦ Evaluation of the extension inputs (if available) to control the system insert
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Use buttons to trigger the locking function and forced operation
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Locking function and forced operation: lock-out protection, Permanent ON/OFF or ON/OFF for a fixed time
¦ Night light function with period for brightness reduction, with dimming insert
¦ Hotel function (orientation light instead of OFF), with dimming insert
¦ Warm dimming (changing the color temperature with simultaneous increase in brightness), with DALI insert
¦ Wind alarm via connection of conventional weather sensors to extension input, with blind insert
Technical data
Ambient temperature: +5 ... +45 °C
Storage/transport temperature: -25 ... +70 °C
Accuracy per month: ± 13 s
Power reserve: approx. 4 h
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: NaV

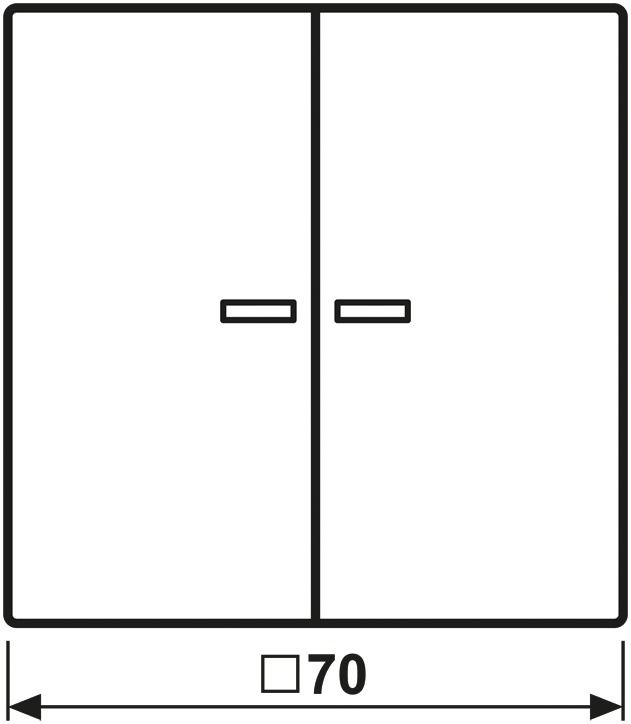

Dimensions: 70 x 70 mm
Material: painted duroplast
Manufacturer: JUNG
Type: BTLC17102P228
