Jung BTA1521SSWM JUNG HOME SCHUKO socket
|
75,73 EUR |
|||||||||||
|
( 90,12 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2023679 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BTA1521SSWM | ||||||||||
| UPC/EAN: | 4011377211704 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG BTA1521SSWM:
JUNG HOME SCHUKO® socket,
matt lacquered
Intended use
¦ Manual or automatic switching of lighting and standard household appliances
¦ Wireless connection to devices from the JUNG HOME system
¦ Use in dry indoor areas
¦ Installation in device box with dimensions in accordance with DIN 49073
¦ Depth of device box (internal dimensions): min. 53 mm
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Button for switching
¦ Multi-coloured status display with optional night mode
¦ Locking of local operation
¦ Up to 16 time programs
¦ On/off delay
¦ Integration of the load in areas (groups), central functions and scenes
¦ Activate/deactivate automatic functions via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Integrated switching actuator with 16 A
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Locking and forced operation: permanent ON/OFF or ON/OFF for a fixed time
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
Technical data
Nominal voltage: AC 220 ... 250 V ~
Mains frequency: 50/60 Hz
Standby power: max. 0.25 W
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Ohmic: 16 A
Motors: 4.3 A (@ cos ¿ 0.6)
Incandescent lamps: 2300 W
HV halogen lamps: 2300 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 400 W
Compact fluorescent lamps: typically 400 W
Fluorescent lamps uncompensated: 920 VA
Installation depth: 45 mm
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m

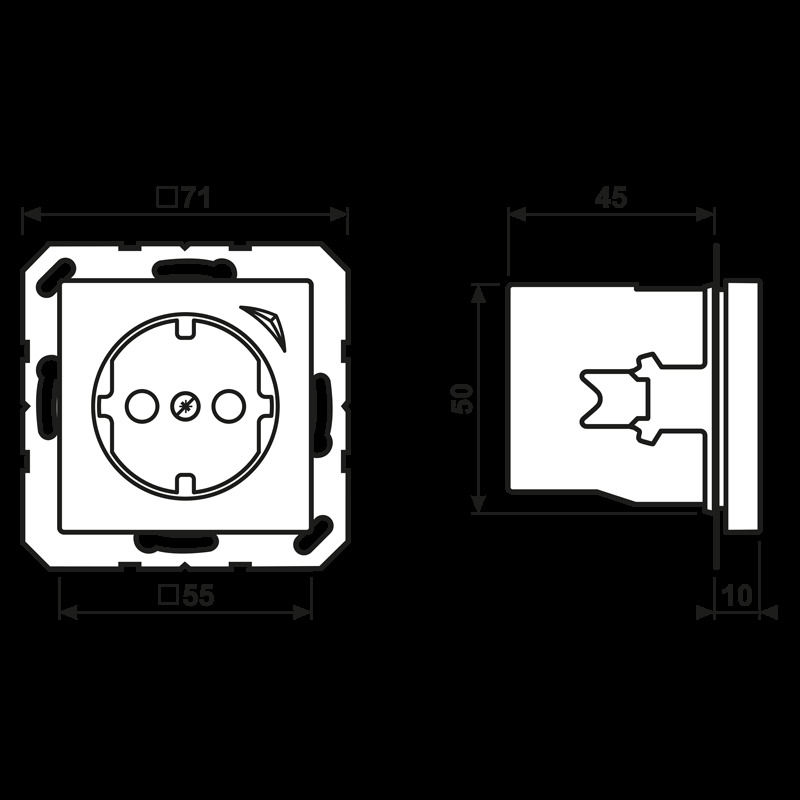

Dimensions: 55 x 55 mm
Material: Thermoplastic, painted
Colour: graphite black matt
Manufacturer: JUNG
Type: BTA1521SSWM
Questions & answers
What is the delivery time of Jung BTA1521SSWM JUNG HOME SCHUKO socket?
The article Jung BTA1521SSWM JUNG HOME SCHUKO socket is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG BTA1521SSWM to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung BTA1521SSWM JUNG HOME SCHUKO socket always at the best possible price. We can give you a discount of 2% on Jung BTA1521SSWM JUNG HOME SCHUKO socket if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Jung BTA1521SSWM JUNG HOME SCHUKO socket we can offer you a price of 74,59 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
