Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy
|
111,84 EUR |
|||||||||||
|
( 133,09 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2023709 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BTA1521SEWW | ||||||||||
| UPC/EAN: | 4011377201514 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG BTA1521SEWW:
JUNG HOME SCHUKO® Energy socket
Thermoplastic (break-proof) high gloss
Intended use
¦ Manual or automatic switching of lighting and standard household devices
¦ Power (W) and energy (kWh) measurement of the connected devices
¦ Wireless connection with devices of the JUNG HOME system
¦ Use in dry indoor areas
¦ Installation in device box with dimensions in accordance with DIN 49073
¦ Depth of the device box (internal dimensions): min. 53 mm
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Button for switching
¦ Multi-colored status display with optional night mode
¦ Locking of local operation
¦ Up to 16 time programs
¦ On/off delay
¦ Integration of the load in areas (groups), central functions and scenes
¦ Automatic functions Activate/deactivate via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Integrated switching actuator with 16 A
¦ Power measurement from 0.1 to 3680 watts and energy measurement (kWh)
¦ Recording of the energy history for the last 24 hours and the last 31 days (charting)
¦ Operating hours counter, energy measurement period
¦ Power save function (switching off standby consumers)
¦ Master-slave function (switching on a wirelessly linked consumer depending on the connected consumer)
¦ Overcurrent protection shutdown
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Locking and forced control: permanent ON/OFF or ON/OFF for a fixed time
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Power fed in from -0.1 to -3680 watts and energy fed in (kWh)
Technical data
Nominal voltage: AC 220 ... 250 V ~
Mains frequency: 50/60 Hz
Standby power: max. 0.25 W
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Active power: -3680 ... 3680 W
Accuracy (power): 1% ±0.05 W
Active energy: -999,999 ... 999,999 kWh
Ohmic: 16 A
Motors: 4.3 A (@ cos ¿ 0.6)
Incandescent lamps: 2300 W
HV halogen lamps: 2300 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 400 W
Compact fluorescent lamps: typically 400 W
Fluorescent lamps uncompensated: 920 VA
Installation depth: 45 mm
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
In buildings: approx. 30 m

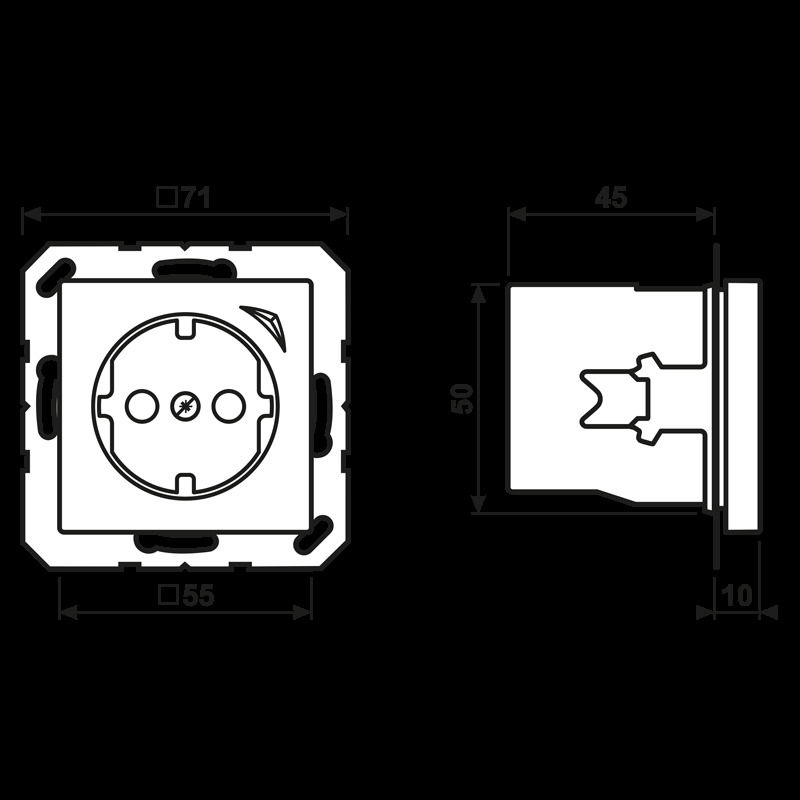

Dimensions: 55 x 55 mm
Material: Thermoplastic
Individual laser engraving possible
Colour: alpine white
Manufacturer: JUNG
Type: BTA1521SEWW
Questions & answers
What is the delivery time of Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy?
The article Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG BTA1521SEWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy always at the best possible price. We can give you a discount of 2% on Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Jung BTA1521SEWW JUNG HOME SCHUKO socket Energy we can offer you a price of 110,16 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
