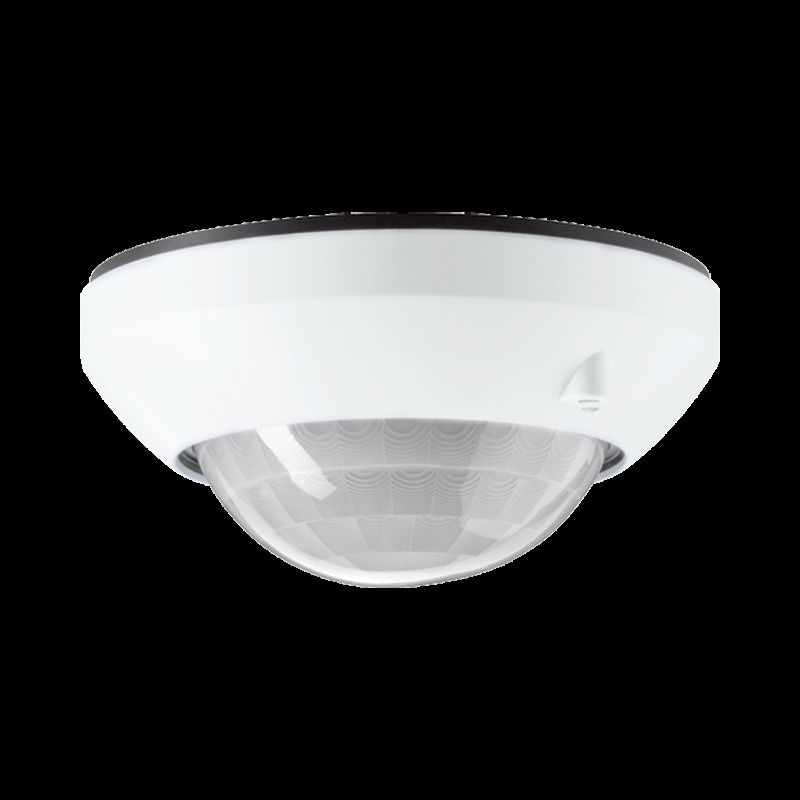

JUNG BT17361WW HOME presence detector
|
117,27 EUR 118,77 EUR |
|
|
( 139,55 EUR incl. VAT ) ≈ £99.56 | ≈ $132.16 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 2023670 |
|---|---|
| Mfg Part No: | BT17361WW |
| UPC/EAN: | 4011377202641 |
| Weight: | 0.159 kg |
| Type: | BT17361WW |
Further Motion Detectors from JUNGFurther products in category Motion Detectors
All products of JUNG
Product information for JUNG BT17361WW:
JUNG HOME presence detector
JUNG HOME presence detector
Intended use
¦ Automatic switching of lighting, depending on heat movement and ambient brightness
¦ Wireless connection with devices of the JUNG HOME system
¦ Operation with system insert for switching or dimming or 3-wire extension
¦ Ceiling mounting on system insert
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Extension of the detection area by combining several JUNG HOME presence detectors or via extension input
¦ Cover for restricting the detection area
¦ Multi-colored status display
¦ Locking the Prog button
¦ Free connection of the motion sensor with load output in the system insert or wirelessly with other JUNG HOME devices
¦ Up to 16 time programs control the functions of the respective system insert (switching on, switching off)
¦ Staircase light function (automatic switch-off) with switch-off warning
¦ Follow-up time, switch-on and switch-off delay
¦ Automatic functions Activate/deactivate via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Maximum brightness and minimum brightness adjustable, with dimmer insert
¦ Switch on with last brightness or fixed switch-on brightness, with dimmer insert
¦ Integration of the load in areas (groups), central functions and scenes
¦ Evaluation of the extension inputs (if available) to control the system use
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Updateable via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Dynamic follow-up time
¦ Lock function and forced operation: permanent ON/OFF or ON/OFF for a fixed time
¦ Night light function with period for brightness reduction, with dimmer insert
¦ Hotel function (orientation light instead of OFF), with dimmer insert
¦ Warm dimming (changing the colour temperature with simultaneous increase in brightness), with DALI insert
¦ Constant light control
¦ Calling up a scene through movement
Technical data
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Dimensions (Ø x H): 103 x 66 mm
Detection angle: 360°
Detection range: Ø approx. 20 m (installation height 3 m)
Sensitivity: 0, 25, 50, 75, 100 %
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Follow-up time: approx. 1 s ... 240 min
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m
Color: alpine white
Manufacturer: JUNG
JUNG HOME presence detector
Intended use
¦ Automatic switching of lighting, depending on heat movement and ambient brightness
¦ Wireless connection with devices of the JUNG HOME system
¦ Operation with system insert for switching or dimming or 3-wire extension
¦ Ceiling mounting on system insert
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Extension of the detection area by combining several JUNG HOME presence detectors or via extension input
¦ Cover for restricting the detection area
¦ Multi-colored status display
¦ Locking the Prog button
¦ Free connection of the motion sensor with load output in the system insert or wirelessly with other JUNG HOME devices
¦ Up to 16 time programs control the functions of the respective system insert (switching on, switching off)
¦ Staircase light function (automatic switch-off) with switch-off warning
¦ Follow-up time, switch-on and switch-off delay
¦ Automatic functions Activate/deactivate via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Maximum brightness and minimum brightness adjustable, with dimmer insert
¦ Switch on with last brightness or fixed switch-on brightness, with dimmer insert
¦ Integration of the load in areas (groups), central functions and scenes
¦ Evaluation of the extension inputs (if available) to control the system use
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Updateable via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Dynamic follow-up time
¦ Lock function and forced operation: permanent ON/OFF or ON/OFF for a fixed time
¦ Night light function with period for brightness reduction, with dimmer insert
¦ Hotel function (orientation light instead of OFF), with dimmer insert
¦ Warm dimming (changing the colour temperature with simultaneous increase in brightness), with DALI insert
¦ Constant light control
¦ Calling up a scene through movement
Technical data
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Dimensions (Ø x H): 103 x 66 mm
Detection angle: 360°
Detection range: Ø approx. 20 m (installation height 3 m)
Sensitivity: 0, 25, 50, 75, 100 %
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Follow-up time: approx. 1 s ... 240 min
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m
Color: alpine white
Manufacturer: JUNG
Questions & answers
What is the delivery time of JUNG BT17361WW HOME presence detector?
The article JUNG BT17361WW HOME presence detector is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG BT17361WW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you JUNG BT17361WW HOME presence detector always at the best possible price. We can give you a discount of 2% on JUNG BT17361WW HOME presence detector if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for JUNG BT17361WW HOME presence detector
 |
JUNG PM-KAPPE Surface-mounted housing for ceiling mount, alpine white presence detectors AM-cap
Surface-mounted housing for receiving the bus coupler for ceiling installation of presence detectors Dimensions: Ø 103 mm, Height 45 mm Color: white Type: PM-CAP Lieske Part No.: 698194 Mfg Part No: PM-KAPPE |
15,49 EUR 16,15 EUR
 ≈ £13.15 | ≈ $17.46
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
