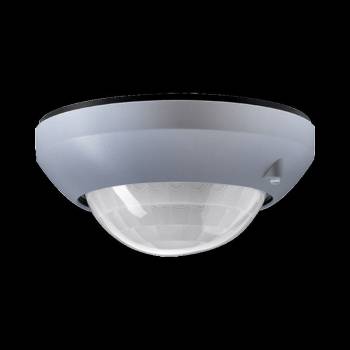

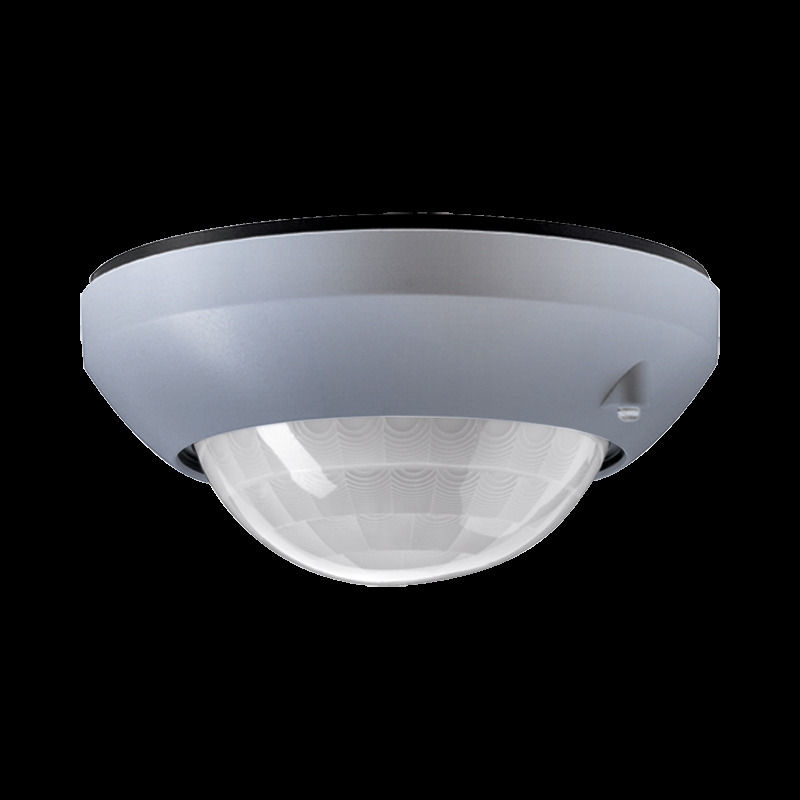

Jung BT17361AL JUNG HOME presence detector

JUNG HOME presence detector
JUNG HOME presence detector
Intended use
¦ Automatic switching of lighting, depending on heat movement and ambient brightness
¦ Wireless connection with devices of the JUNG HOME system
¦ Operation with system insert for switching or dimming or 3-wire extension
¦ Ceiling mounting on system insert
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Extension of the detection area by combining several JUNG HOME presence detectors or via extension input
¦ Cover for restricting the detection area
¦ Multi-colored status display
¦ Locking the Prog button
¦ Free connection of the motion sensor with load output in the system insert or wirelessly with other JUNG HOME devices
¦ Up to 16 time programs control the functions of the respective system insert (switching on, switching off)
¦ Staircase light function (automatic switch-off) with switch-off warning
¦ Follow-up time, switch-on and switch-off delay
¦ Automatic functions Activate/deactivate via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Maximum brightness and minimum brightness adjustable, with dimmer insert
¦ Switch on with last brightness or fixed switch-on brightness, with dimmer insert
¦ Integration of the load in areas (groups), central functions and scenes
¦ Evaluation of the extension inputs (if available) to control the system use
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Updateable via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
¦ Dynamic follow-up time
¦ Lock function and forced operation: permanent ON/OFF or ON/OFF for a fixed time
¦ Night light function with period for brightness reduction, with dimmer insert
¦ Hotel function (orientation light instead of OFF), with dimmer insert
¦ Warm dimming (changing the colour temperature with simultaneous increase in brightness), with DALI insert
¦ Constant light control
¦ Calling up a scene through movement
Technical data
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Dimensions (Ø x H): 103 x 66 mm
Detection angle: 360°
Detection range: Ø approx. 20 m (installation height 3 m)
Sensitivity: 0, 25, 50, 75, 100 %
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Follow-up time: approx. 1 s ... 240 min
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m
Color: aluminum (painted)
Manufacturer: JUNG
Type: BT17361AL
