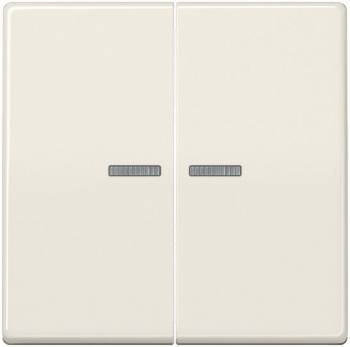

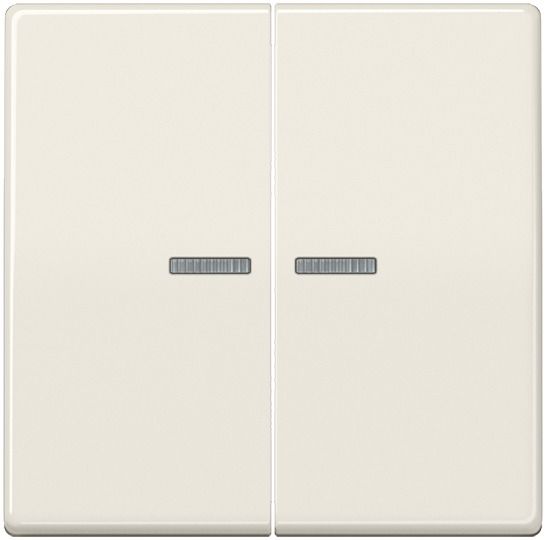

Jung AS10921STRF KNX RF button 2f.Duroplast series AS ws

KNX RF button 2-way
KNX RF button 2-way
Duroplast (highly scratch-resistant) glossy
Intended use
¦ Operating consumers, e.g. B. Light on/off, dimming of brightness and color temperature, blinds up/down, value transmitter 1 byte, 2 byte, 3 byte and 6 byte, brightness values, temperatures, calling up and saving light scenes
¦ Control of room temperature
¦ Operation in wired KNX systems via media coupler (item no.: MK 100 RF)
¦ Operation with system insert for switching, dimming, blinds, for DALI, room temperature control or with 3-wire extension
Product features
¦ Control of blinds, roller shutters, awnings, with blind insert
¦ Switching and dimming of lighting, with switching or dimming insert
¦ Color temperature control of lighting, with DALI touch control device TW
¦ Control of room temperature, with room thermostat insert
¦ Operation with 2- or 3-wire extension, rotary extension or button
¦ Push button sensor functions can be set: switching, dimming, blinds, value transmitter, scene extension, 2-channel operation and controller extension
¦ Operating concept (rocker or button) can be set for each operating surface
¦ Button evaluation (single-surface operation or two-surface operation) can be set
¦ One or two functions per operating surface
¦ Controller extension with operating mode switching, forced operating mode switching, presence function and setpoint shift can be set
¦ Status LED - optionally red, green, blue - can be set for each rocker
¦ LED functions orientation light and night reduction can be set separately
¦ Brightness of the status LED can be set and switched during operation
¦ Locking function: locking or function switching of all or individual button functions
¦ Internal sensor for temperature measurement, can only be used with the following inserts: Item no. 1701 SE, 1701 PSE, 1704 ESE, 1713 DSTE, 1731 JE, 1730 JE, 1790 RTR, 1723 NE
¦ Improved temperature measurement by including external temperature values via communication object
¦ Commissioning with ETS from version 5.7.5
¦ KNX Data Secure compatible from ETS 5.7.5
¦ Updateable with ETS Service app
A labeling order from the GRAPHIC TOOL must be placed together with the order: jung.group/gt
Subsequent labeling of the buttons is not possible.
Technical data
KNX Medium: RF1.R
Security: X-Mode
Commissioning mode: S-Mode
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in the open field: typ. 100 m
Receiver category: 2
Ambient temperature: -5 ... +45 °C
Storage/transport temperature: -25 ... +70 °C
Relative humidity: max. 93 % (no condensation)
Material: Duroplast
Color: white
Manufacturer: JUNG
Type: AS10921STRF
