Jung AL459D1SAN LS Touch
|
490,84 EUR |
|||||||||||
|
( 584,10 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2023970 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | AL459D1SAN | ||||||||||
| UPC/EAN: | 4011377194922 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG AL459D1SAN:

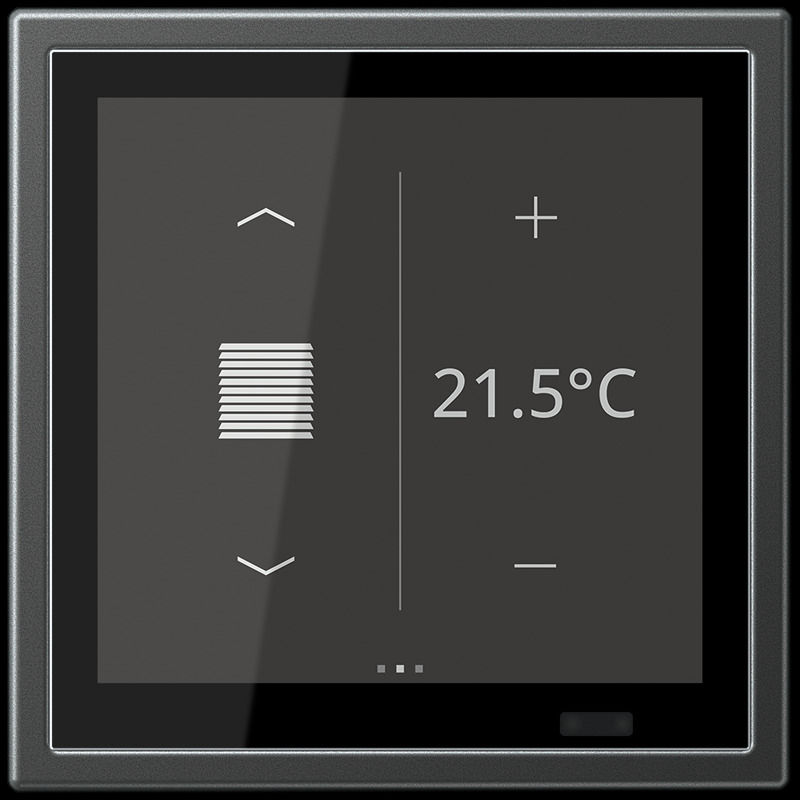

KNX room controller LS TOUCH
Metal versions
Intended use
¦ Operating consumers (switching and dimming lights, controlling blinds and roller shutters, etc.)
¦ Visualizing system states and information (e.g. temperature and brightness)
¦ Measuring and regulating room temperature
¦ Installation in device box with dimensions according to DIN 49073
Product features
¦ High-resolution IPS color display
¦ Capacitive touchscreen
¦ Functions of the favorite pages can be set (without ETS)
¦ Max. 32 operating functions switching, dimming, blind control, value transmitter, scene call, etc.
¦ Integrated room temperature sensor
¦ Room temperature control with setpoint specification
¦ Control of split units (only with update, available from July 2024)
¦ Alarm function (acoustic and/or optical)
¦ Max. 8 timer functions can be activated and set (depending on time, astro or random)
¦ Integrated proximity and brightness sensor
¦ Integrated bus coupler
¦ Connection of installation buttons or reed contacts possible
¦ Commissioning and support of KNX Data Secure with ETS from version 5.7.4
¦ Display of room and target temperature
¦ Remote sensor (item no.: FF NTC) can be connected
¦ Display of outside temperature - with external sensor, e.g. weather station
¦ In conjunction with JUNG Smart Visu Server: Control of music playback and volume control
Technical data
Screen diagonal: 86 mm / 3.4'\lashResolution: 320 x 310
Recommended installation height: 1.5 m
KNX medium: TP 256
Security: X-Mode
Commissioning mode: S-Mode
Nominal voltage: DC 21 ... 32 V SELV
Current consumption KNX: 60 mA
KNX connection: Connection terminal
Connection cable: EIB-Y (St)Y 2x2x0.8
Protection class: III
Number: max. 20
Cable length: max. 25 m
Ambient temperature: -5 ... +45 °C
Storage/transport temperature: -25 ... +70 °C
Relative humidity: 30 % ... 70 %
Material: painted aluminum
Color: anthracite (painted aluminum)
Manufacturer: JUNG
Type: AL459D1SAN
Questions & answers
What is the delivery time of Jung AL459D1SAN LS Touch?
The article Jung AL459D1SAN LS Touch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG AL459D1SAN to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung AL459D1SAN LS Touch always at the best possible price. We can give you a discount of 2% on Jung AL459D1SAN LS Touch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Jung AL459D1SAN LS Touch we can offer you a price of 476,11 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
