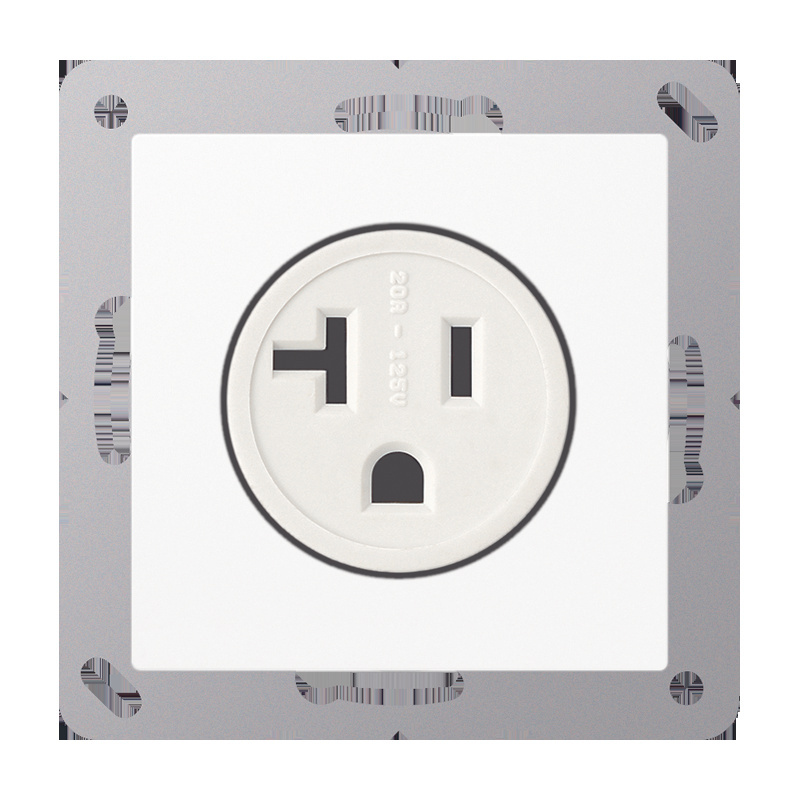

JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white

Your rating:
Average rating
product review for JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white
( 4.4 / 5 ) 10 ratings
JUNG A521-20WW
This image may differ from the desired article.
JUNG A521-20WWJUNG A521-20WW
58,69 EUR 61,16 EUR
( 69,84 EUR incl. VAT )
≈ £48.89  |  ≈ $64.38
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white
Lieske Part No.:634668
Mfg Part No: A521-20WW
UPC/EAN: 4011377049857
Weight:0.828 kg
Type:A 521-20 WW
Graduated prices net
From piecesPrice per pieces
655,61 EUR
1252,53 EUR
2449,45 EUR
3646,37 EUR

Product information for JUNG A521-20WW:

The JUNG socket outlet type A 521-20 WW is an electrical installation component designed for use in installations according to US standards, specifically intended for connecting devices with higher power consumption. The device corresponds to the NEMA socket designation 5-20R and is designed for an operating voltage of 125 V AC. The rated current is 20 amperes, making the socket suitable for operating high-power devices such as machine tools, kitchen appliances, or electric heaters. The socket is finished in alpine white and made of thermoplastic, ensuring high mechanical stability and resistance to environmental influences.

Applications

The socket is intended for indoor use, particularly in areas where higher power supply is required. It is commonly used in commercial and industrial facilities, but also in private households where standard 10-ampere sockets are insufficient. Compliance with the US standard NEMA Series A/AS makes it especially suitable for applications where international devices need to be connected, which are designed to match this standard.

Functions and Equipment in Detail

The socket features a 2-pole connection with grounding (2-pole + E), ensuring safe and reliable power supply. The terminal connections are equipped with screw terminals suitable for both rigid and flexible conductors up to a cross-section of 4 mm². These terminals allow for easy and secure connection of the conductors, ensuring a reliable electrical connection. The construction is designed to meet the requirements of the US NEMA standard, ensuring universal compatibility with compatible plugs.

Technology Explained Simply

The designation 5-20R refers to the NEMA socket category, where the 12,7 cm ( 5 inch ) indicates the voltage class (125 V) and the "50,8 cm ( 20 inch ) indicates the rated current (20 A). The "R" stands for "Receptacle, meaning socket. Thus, the socket is designed for a maximum power of 2500 VA (125 V × 20 A). The use of thermoplastic as material ensures high insulation properties and heat resistance, increasing safety during operation. The screw terminals allow for a mechanically stable connection, which is also durable even with frequent plugging and unplugging of connectors.

Compatibility and Accessories

The socket is compatible with plugs according to NEMA 5-20P, which also support 20 A and 125 V. It can be used in combination with other products from the JUNG NEMA series to ensure a uniform appearance in the installation. The socket is designed for installation in standard socket outlets, with the exact mounting method depending on the specific installation situation.

Installation and Mounting

Mounting is done by installing into a suitable socket outlet. The screw terminals allow for easy and secure connection of the electrical conductors. The socket is intended for indoor use, where environmental conditions such as humidity and temperature can affect its service life. Proper installation by qualified professionals is required to ensure safety and functionality.

Operational Advantages

The socket offers high current-carrying capacity, making it suitable for operating high-power devices. The use of screw terminals ensures a reliable and durable connection of the conductors. Compliance with the US NEMA standard ensures compatibility with a wide range of devices, particularly from the American market. The choice of thermoplastic material ensures high mechanical stability and resistance to environmental influences.

General
Nominal current20 A
Operating voltage125 V
Socket designation5-20R
Number of poles2 pol. + E
Terminal technologyScrew terminals
Conductor cross section4 mm²
NormUS-NEMA
MaterialThermoplastic
Colouralpine white


Questions & answers

What is the delivery time of JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white?

The article JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG A521-20WW to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white always at the best possible price. We can give you a discount of 2% on JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of JUNG A521-20WW socket outlet 20A 125VAC US standard NEMA series A/AS alpin white we can offer you a price of 55,61 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
