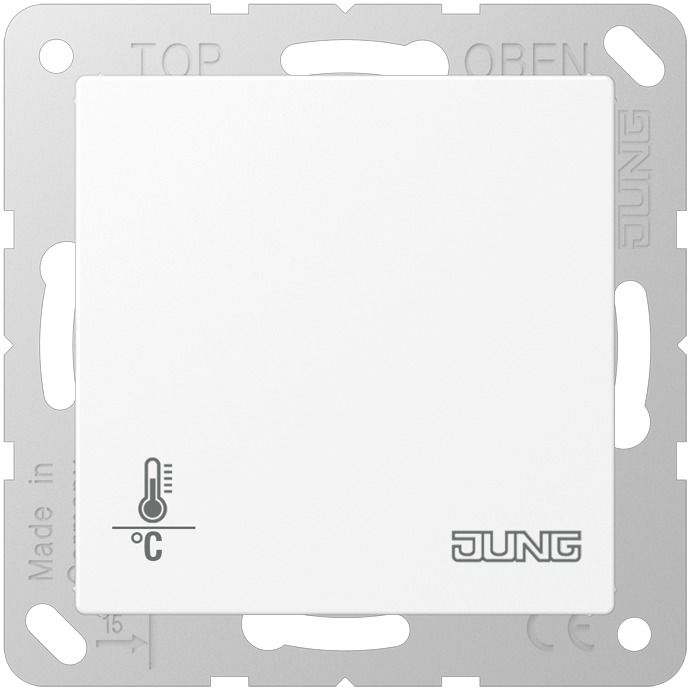

Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f
|
228,90 EUR |
|||||||||||
|
( 272,39 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 139242 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A2178BFORTSWWM | ||||||||||
| UPC/EAN: | 4011377206298 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG A2178BFORTSWWM:
with integrated bus coupler
with integrated 4-way button interface
without adjusting wheel for setpoint adjustment
Controller cannot be manipulated from outside
Full functionality is supported from ETS3.0d or higher.
ETS product family Phys. Sensors
Product type Temperature
Intended use
Individual room temperature control in KNX installations
Installation in device box according to EN 60670-1
Product properties
Measurement of the room temperature and comparison with the target temperature
Target value specification by selecting the operating mode
Operating modes Comfort, standby, night mode, frost/heat protection
Heating and cooling mode
Heating and cooling with basic and additional level
Operation exclusively via the bus
Button interface with four inputs or two outputs and two inputs, e.g. for window contacts, buttons, LEDs, etc.
Function of the inputs: Switching, dimming, blind control, light scene extension, brightness or temperature value transmitter
Optional: External temperature sensor can be connected (accessory item no.: FF 7.8)
KNX medium: TP 256
Nominal voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: max. 7.5 mA
KNX connection: connection terminal
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Output current: 0.8 mA
Inputs and outputs
Cable type: JY(St)Y 2 x 2 x 0.8 mm
Cable length: max. 5 m
Cable length temperature sensor: max. 50 m
Attention: If cables with a cross-section of 1.5 mm2 are generally used, use a switch junction box!
Type: A 2178 BF ORTS WWM
Questions & answers
What is the delivery time of Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f?
The article Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG A2178BFORTSWWM to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f always at the best possible price. We can give you a discount of 2% on Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Jung A 2178 BF ORTS WWM KNX object controller with integrated button interface 4f we can offer you a price of 225,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
