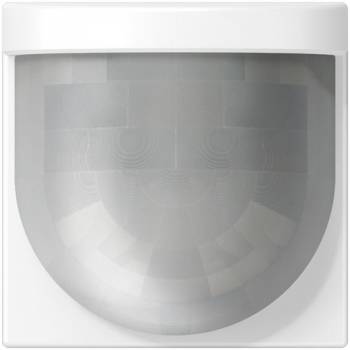

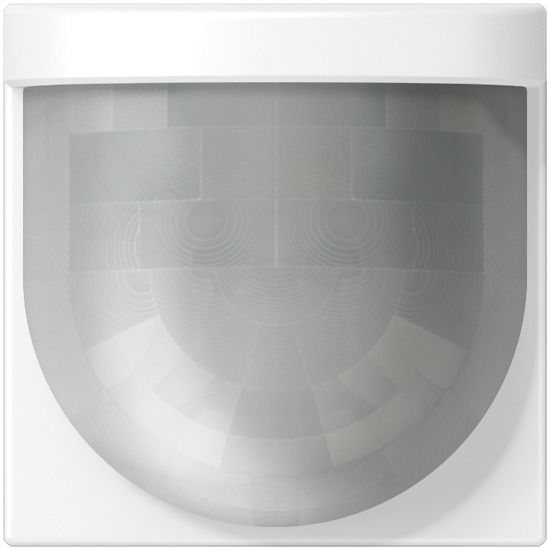

Jung A 17280 WWM automatic switch standard 2.20m IP44 series A snow white
|
81,21 EUR |
|||||||||||
|
( 96,64 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1380980 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A17280WWM | ||||||||||
| UPC/EAN: | 4011377204065 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG A17280WWM:
With sealing set Item no.: AS A 50 DS and program-specific 'IP 44 frame', protection level'IP 44 is guaranteed.
IP-44 installation only permitted indoors
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with flush-mounted insert for switching or dimming or 3-wire extension from the LB management
Wall mounting on flush-mounted insert
Product features
Extension of the detection area in combination with 3-wire extension
Operation with 2- or 3-wire extension, rotary extension or button
Adjustable brightness threshold Adjustable
sensitivity Fixed
run-on time
Switch on with last set brightness or saved switch-on brightness, with dimming
insert Switch-on brightness can be permanently saved via extension, with dimming insert
Light can be dimmed via extension, with dimming insert
Ambient temperature: ?20 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity: 25, 50, 75, 100 %
Run-on time: approx. 2 min
Installation height: 1.10 / 2.20 m
Detection angle: 180°
Detection range (installation at 2.20 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 11 m
Sensitivity 75%: max. 13 m
Sensitivity 100%: max. 15 m
Detection range (installation at 1.10 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 8 m
Sensitivity 75%: max. 9 m
Sensitivity 100%: max. 10 m
Material: Thermoplastic, painted
Dimensions (W x H): 55 x 55 mm
Type: A 17280 WWM
