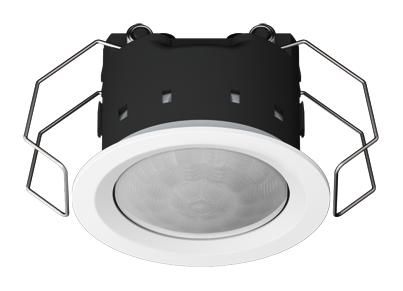

JUNG 3361MWW KNX presence detector mini, standard alpine white

with integrated bus coupler
ETS product family Phys. Sensors
Product type motion detector
Intended use
Control of lighting, room thermostats and other electrical consumers in interior spaces as required
Clamp mounting in suspended ceilings
Ceiling mounting on fixed ceilings in device box according to EN 60670-1 with flush-mounted set (item no.: PMM-UP-SET-WW)
Ceiling mounting surface-mounted on fixed ceilings with surface-mounted set (item no.: PMM-AP-SET-WW)
Product features
Integrated bus coupler
3 PIR sensors
Detection field 360°
Integrated brightness sensor
Use as a presence detector, motion detector or for reporting operation
Output functions: switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode specification for room temperature controller
Extension of the detection range by operating several devices as main and extension units
Adjuster for manual correction of the sensitivity
Status LED: Flashes when motion is detected, depending on programming in normal operation or only during the walk test operation
Presence detector function:
Detection of the smallest movements, e.g. at a workstation to detect presence of people
Switch on: motion detection and brightness threshold undershot
Switch off: no movement in the detection field and the follow-up time has elapsed, or brightness threshold exceeded
Motion detector function:
detection of movements to secure traffic routes in buildings
After being activated and switched on, the motion detection works independently of the brightness.
Reporting mode:
detection of movements in the detection field independent of the brightness
Switch on: after detecting an adjustable number of movements within the set monitoring period
Switch off: no movement in the detection field and the follow-up time has elapsed
