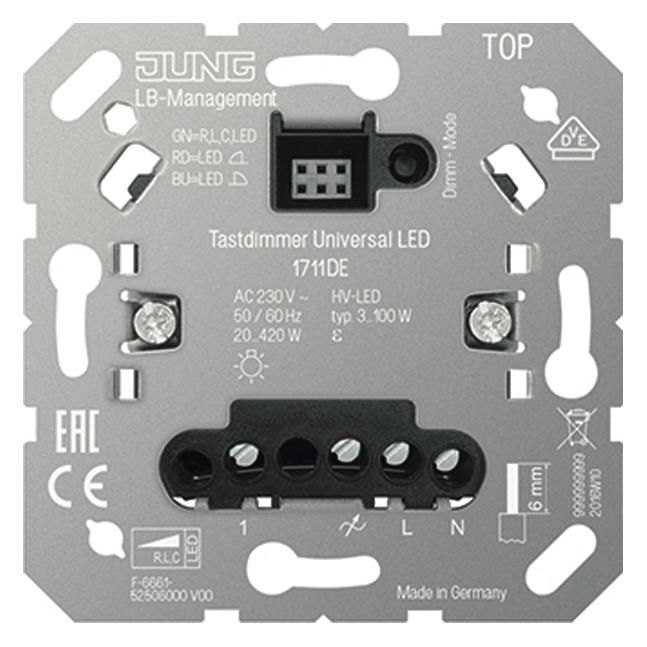

Jung 1711DE touch dimmer UNI LED

with extension input
for attachments Art. Nos.: .. 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT .., .. 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 ..
Intended use
Switching and dimming of lighting
Operation with suitable attachment from LB Management
Installation in device box according to EN 60670-1
Product features
Device works according to the leading or trailing edge phase control principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode via LED
Device can be operated without a neutral conductor
Switching on by means of a lamp-protecting soft start
Switching on with the last set brightness or saved switch-on brightness
Switch-on brightness can be saved permanently
Minimum brightness permanent can be saved
Connection of extensions possible
Electronic short-circuit protection with permanent shutdown after 7 seconds at the latest
Electronic overtemperature protection
Test operation for functional testing
Hotel card function
Performance extension through performance add-ons (Art. No. ULZ 1755 REG) possible
Optional accessories: Compensation module LED, item no.: KM LED 230 U
Nominal voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Standby power depending on attachment: approx. 0.1 ... 0.5 W
Power loss: approx. 4 W
Ambient temperature: ?5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 420 W
HV halogen lamps: 20 ... 420 W
Electronic transformers: 20 ... 420 W
Electronic transformers with LV LED: typically 20 ... 100 W
Inductive transformers: 20 ... 420 VA
Inductive transformers with LV LED: typically 20 ... 100 VA
Dimmable HV LED lamps: typically 3 ... 100 W
Dimmable compact fluorescent lamps: typ. 3 ... 100 W
Operating mode LED trailing edge: Connected load for HV LED lamps typ. 3 ... 400 W, electronic transformers with LV LED typ. 20 ... 200 W.
Ohmic-capacitive: 20 ... 420 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 420 VA
Ohmic and HV LED: typ. 3 ... 100 W
Ohmic and compact fluorescent lamps: typ. 3 ... 100 W
Power supplements: see instructions for power supplements
Connection: screw terminals
single-wire: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-stranded without wire end ferrule: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-stranded with wire end ferrule: 1 x 0.5 ... 4.0 mm22 x 0.5 ... 1.5 mm2
Number of extensions
Extension 2-wire Item No. 1720 NE: unlimited
Extension 3-wire Item No. 1723 NE: 10
Rotary extension 3-wire Item No.: 1733 DNE: 10
Buttons: unlimited
Total length of extension cable: max. 100 m
Total length of load cable: max. 100 m
Type: 1711DE
