Janitza 1401357 B23 312-10J (Modbus) MID energy meter

Your rating:
Average rating
product review for Janitza 1401357 B23 312-10J (Modbus) MID energy meter
( 4.5 / 5 ) 61 ratings

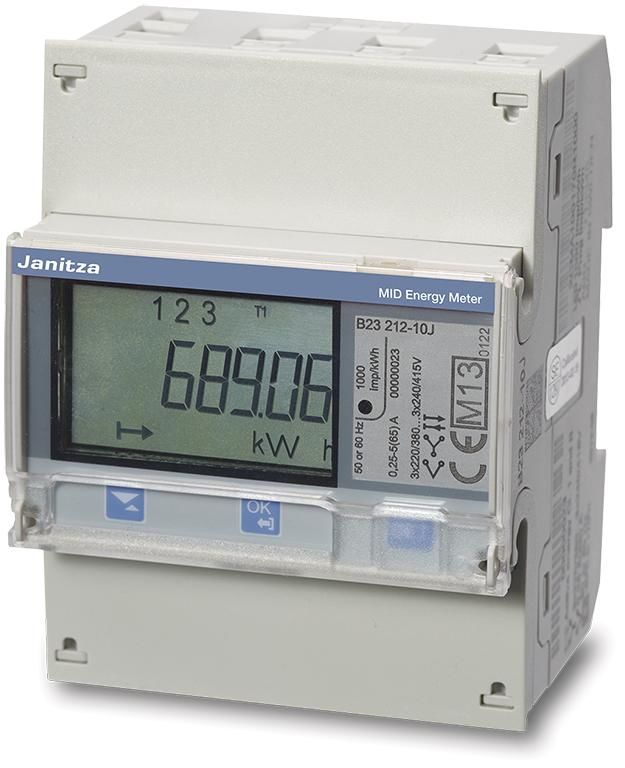

Janitza 1401357
This image may differ from the desired article.
-8% 266,95 EUR 290,84 EUR
( 317,67 EUR incl. VAT )
≈ £222.37  |  ≈ $292.84
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Janitza 1401357 B23 312-10J (Modbus) MID energy meter
Datasheet:file_download Download
Lieske Part No.:1139584
Mfg Part No: 1401357
UPC/EAN: 4251861102891
Weight:0.359 kg
Type:B23 312-10J (Modbus)

Product information for Janitza 1401357:

The Janitza B23 312-10J (Modbus) is a MID-certified energy meter for mounting on a DIN rail in 4TE format. It is designed for precise measurement of active and reactive energy in three-phase AC networks and is intended for use in industrial and commercial installations. The meter features an integrated RS485 interface enabling operation in the Modbus RTU protocol, thus allowing integration into existing building automation or energy management systems. Measurement is performed within a current range of 0.25 to 65 A and a voltage range of 3x 220–240 V AC, with tolerances of –20 % to +15 %. The measurement frequency is designed for 50/60 Hz, enabling application in European and international networks.

Applications

The meter is suitable for use in electrical installations with a nominal voltage of 220–240 V AC and a current range up to 65 A. It is typically used in industrial energy distribution, commercial buildings, or installations with multiple tariff levels. The integrated Modbus interface allows remote monitoring and control, making it suitable for energy efficiency analysis systems or energy consumption billing. Certification according to MID (Measuring Instruments Directive) ensures legal compliance for energy consumption billing.

Functions and Equipment in Detail

The B23 312-10J features two inputs that can either be used to control two tariff levels or to count external pulses. The two outputs can be configured as pulse outputs for active or reactive energy or as alarm outputs. The pulse duration is adjustable and ranges from 10 to 990 milliseconds. The measurement accuracy for active energy is Class 1, and for reactive energy, Class 2. Meter readings cannot be reset, ensuring secure and tamper-proof documentation of consumption.

Technology Explained Simply

The integrated RS485 interface enables communication over a serial network, with the Modbus RTU protocol standardizing data transmission. This is particularly useful in systems where multiple meters are accessed via a common network. Measurement is performed via direct current and voltage measurement, with a maximum cross-section for the measurement conductors of 25 mm². The operating temperature of the device ranges from –40 °C to +70 °C, allowing use in outdoor installations or environments with extreme temperatures. Certification according to IEC (International Electrotechnical Commission) ensures electrical safety and reliability of the device.

Compatibility and Accessories

The meter is designed for mounting on a DIN rail and fits into standard switchboards. Communication is via Modbus RTU, making it compatible with devices and systems supporting this protocol.

Mounting and Installation

Mounting is on a DIN rail in 4TE format. The maximum cross-section for measurement conductors is 25 mm². Installation requires compliance with electrical safety regulations, particularly when connecting current and voltage conductors. Settings such as transformer ratio, measuring instruments, pulse output, and alarm functions can be configured via device settings, with detailed steps described in the product manual.

Operational Advantages

The meter offers high measurement accuracy required for billing purposes and is MID-certified, ensuring legal compliance. The integrated Modbus interface enables easy integration into existing systems. The temperature resistance from –40 to +70 °C allows flexible placement, even in harsh environments. The non-resettable meter readings protect against manipulation and ensure trustworthy documentation.

Protection Rating and Operating Environment

The meter is designed for use in enclosed switchboards. Certification according to IEC and MID ensures electrical safety and reliability under various operating conditions.

Connection and Communication

Communication is via the integrated RS485 interface using the Modbus RTU protocol. This enables remote monitoring and control of the meter. Interface configuration is performed via device settings, with exact parameters described in the product manual. Connection is made using a standardized cable suitable for the RS485 interface.

General
ManufacturerJanitza
Mounting methodDIN rail mounting
Mounting format4TE
Number of tariffs2
InterfaceRS485
ProtocolModbus RTU
Number of inputs2
Number of outputs2
Output functionpulse output for active or reactive energy or alarm output
Pulse duration10-990 ms
Accuracy of active energy measurementKl. 1
Accuracy of reactive energy measurementKl. 2
Connection cross-section measurement25 mm²
Current measurement range0,25-65 A
Voltage range3x 220-240 V AC
Voltage deviation-20% to +15%
Frequency50/60 Hz
Temperature range-40 to +70 °C
ApprovalMID, IEC


Product data sheet
Datasheet for Janitza 1401357, EAN: 4251861102891

Questions & answers

What is the delivery time of Janitza 1401357 B23 312-10J (Modbus) MID energy meter ?

The article Janitza 1401357 B23 312-10J (Modbus) MID energy meter is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Janitza 1401357 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Janitza 1401357 B23 312-10J (Modbus) MID energy meter always at the best possible price. We can give you a discount of 2% on Janitza 1401357 B23 312-10J (Modbus) MID energy meter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
