Issendorff 30151 LCN LCN-touch keypad GT6B sw,

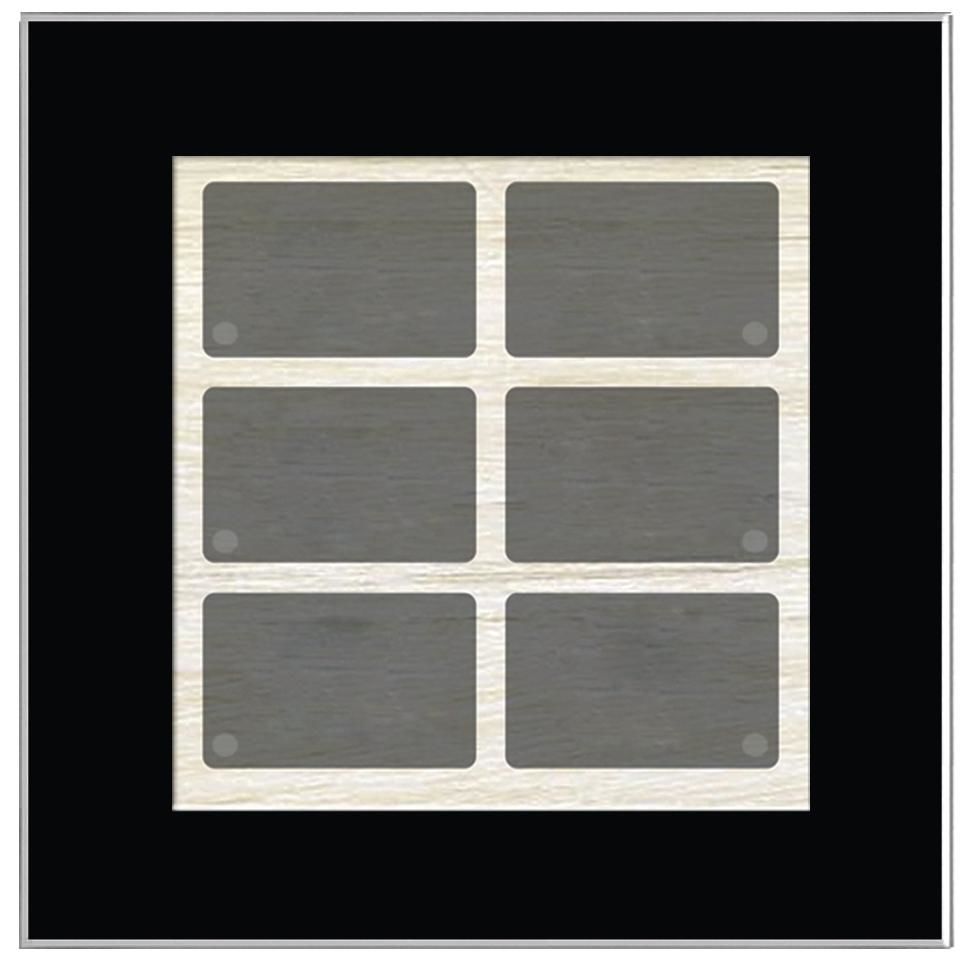

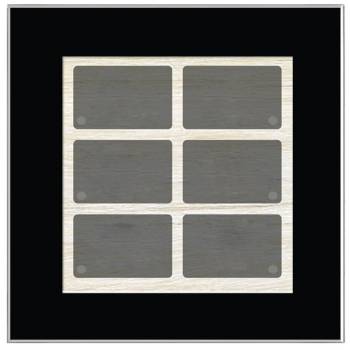

Elegant glass keypad (touch glass) with 6 keys and 6 LEDs (for status information). The contact surfaces are capacitive, so no mechanical contact, no wear parts. Safte a touch is enough. The shallow depth along with the exquisite look is a control panel of a special kind, can be labeled with text or symbols. The blue backlight (switchable) easier to find at night and gives the room a subtle, individual illumination.
Available in white, black and silver mirror (please specify when ordering). For special requirements, other color options are available on request.

Keypad: 6 capacitive buttons, with the LCN function typical short / long / loose.
6 red LEDs on the keys, each LED can be assigned freely selectable module status as on / off / flash / flackerm (eg module 10, output 1), or direct control.
The flat operating area is individually labeled.

Connection: by LCN-TEU (included / see key inputs) to the T connector of a bus module (eg LCN-UPP, UPS or UP24)
supply. connected via the bus module In high ambient light or use the backlight on LCN-NU16 is additionally required (accessory).
Mounting: flush-mounted box
Dimensions: 90mm x 90mm x 16.9 mm (5mm glass)
Protection: IP20



Type: LCN-GT6B item: 1 ST.
