INTELLINET 771917

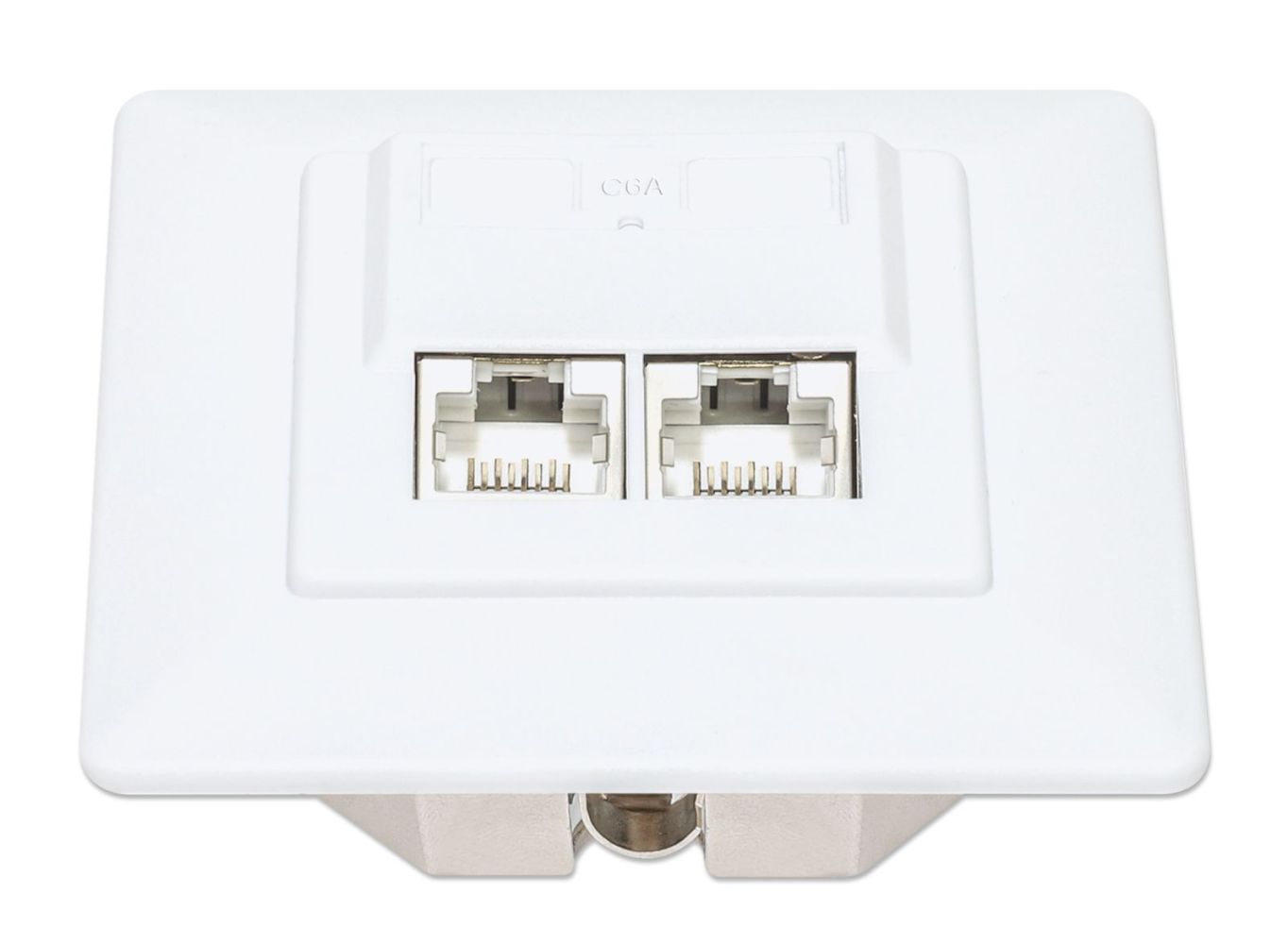

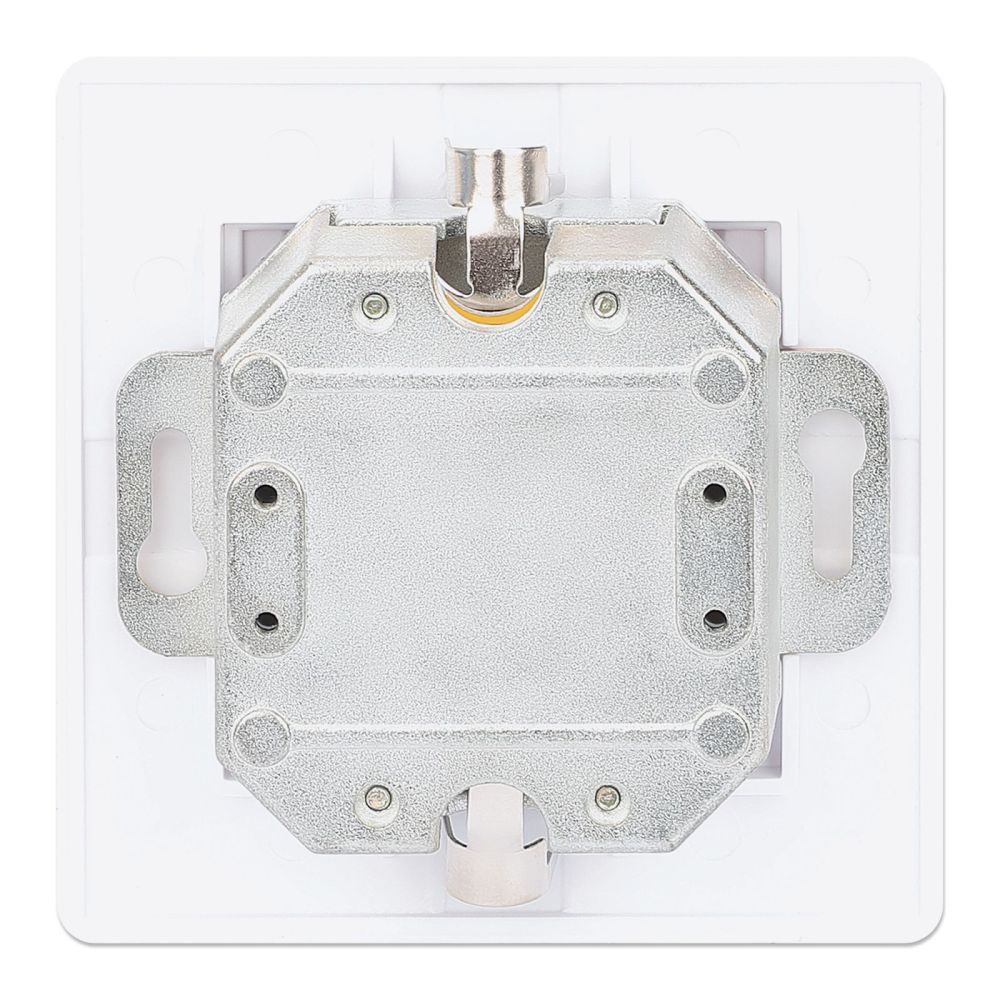

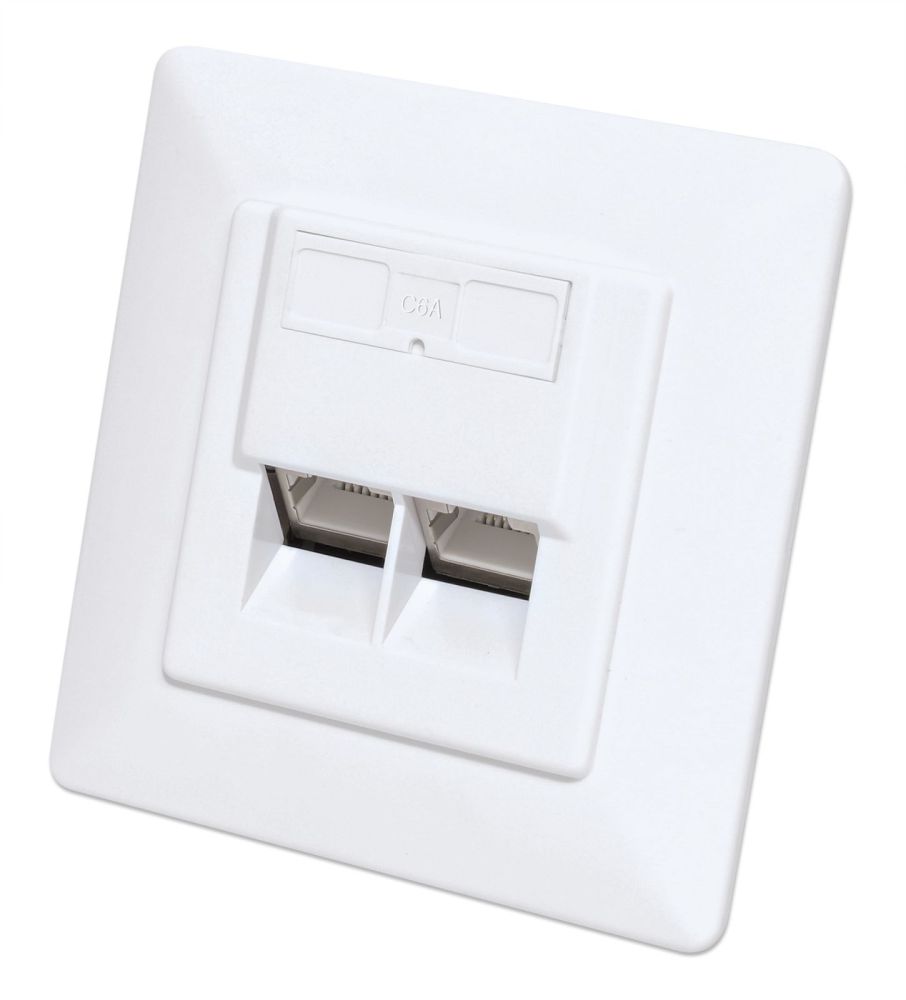

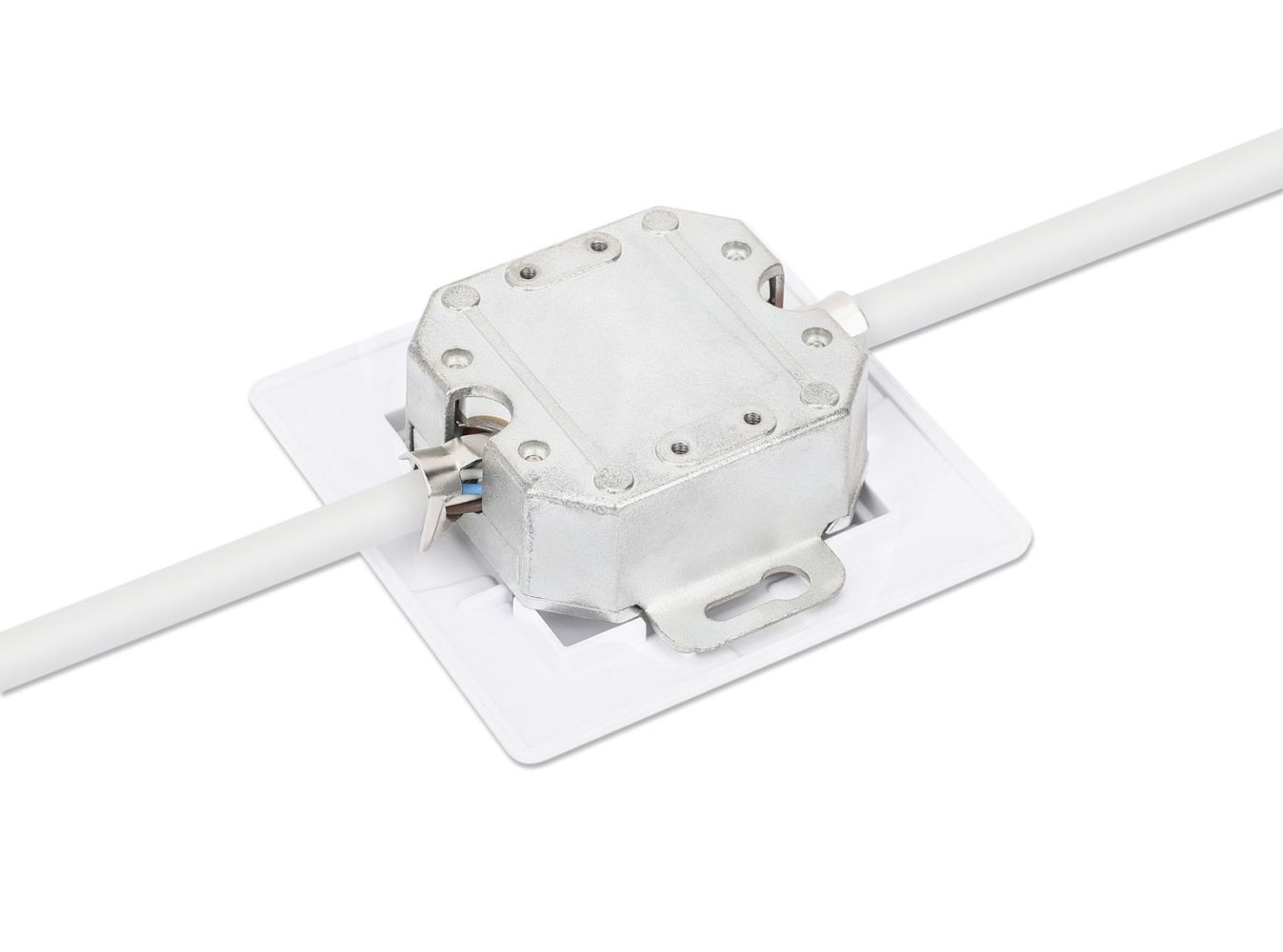

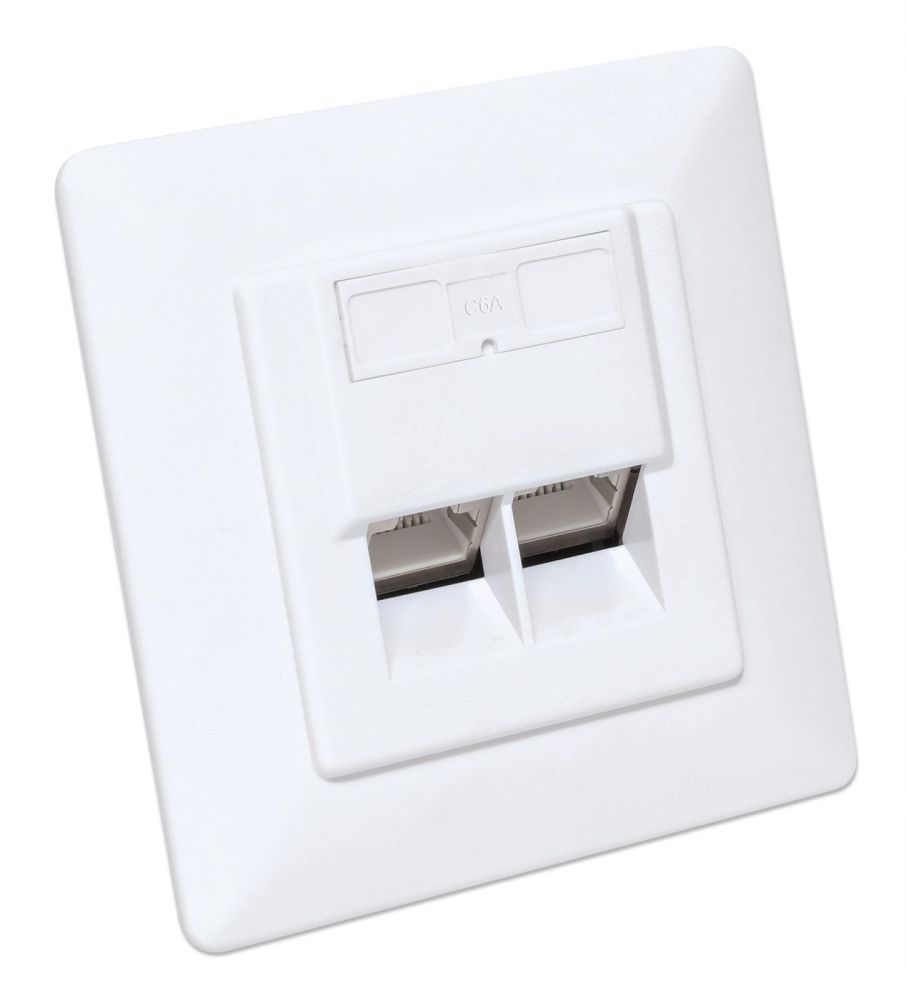

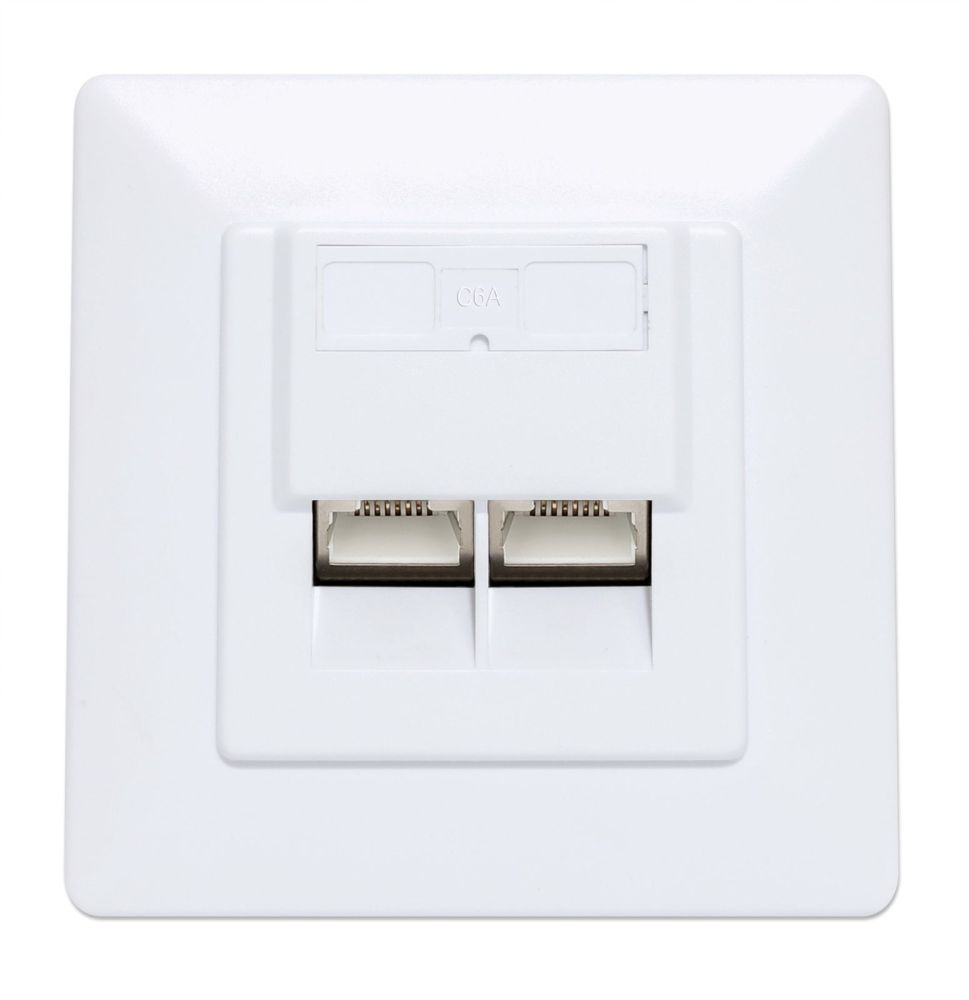

2-port Cat6a 10G RJ45 network socket, shielded flush mounting, junction box with front panel, STP, signal white RAL9003
|
13,13 EUR |
|
|
( 15,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1917383 |
|---|---|
| Mfg Part No: | 771917 |
| UPC/EAN: | 766623771917 |
| Weight: | 0.15 kg |
Product information for INTELLINET 771917:
This shielded 2-port Cat6a 10G RJ45 wall socket is the high-quality flush-mounted outlet for your passive cable infrastructure. The Cat6a sockets support up to 10 Gbit/s at 500 MHz and all PoE applications up to PoE++. To surface-mount this data socket, use the separately available surface-mounting frame #771894. - Cat6a STP 360° shielded RJ45 wall socket for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- Two 40° angled sockets
- Flat flush-mounted frame
- 3 µin gold-plated contacts
- Suitable for solid wire with AWG 26/1 to 22/1
- Conforms to ISO/IEC 11801, DIN EN 50173-1 and ANSI/TIA-568
- Front panel in European format 80 x 80 mm
- Flexible strain relief
- Standard 8P8C design, compatible with all RJ45 network ports
- Integrated labeling field
- LSA insulation displacement connector, suitable for 110, Krone and other lay-up tools
- Suitable for round cables
- 10 year guarantee Standards and certificates
- CE
- RoHS
- ISO/IEC 11801
- DIN EN 50173-1 General
- Supports transmission rates up to 10 Gbit/s
- Max. operating frequency: 500 MHz
- Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- mating cycles : =750 Material
- Contacts: phosphor bronze, galvanized
- Contact plating: 3 µin gold
- Insulation displacement terminal: phosphor bronze
- Shielding:
- Housing: ABS plastic Electrical details
- Insulation resistance: = 250 MOhm
- Dielectric strength: 1000 V DC/700 V AC
- Contact resistance: =20 MOhm Physical details
- Dimensions (L x W x H): 80 x 80 x 31 mm
- Net weight: 150 g
- Gross weight: 160 g Physical details
- Operating ambient temperature: -10 - 60ºC
- Storage ambient temperature : -40 - 70°C
- Humidity (non-condensing): 10 - 90% RH Scope of delivery
- 2-port Cat6a 10G RJ45 network socket, shielded
- Two screws for surface mounting; suitable for surface-mounted frame #771894 This product is also available in other versions
- #771900 - Cat6 version
- #771894 - Surface-mounted frame (converts flush-mounted to surface-mounted) Color: Signal white RAL9003 Product dimensions: 80 (L) x 80 (W) x 31 (H) [mm]
