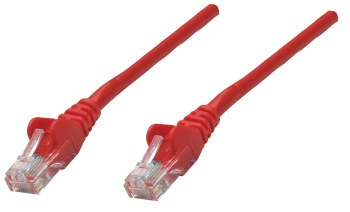

Intellinet 739801 Premium network cable Cat6 S/FTP 100% copper Cat6-certified LS0H RJ45 connector/RJ45 connector 0.25 m red content_copy

The Intellinet Premium network cable, model 739801, is a Cat6 patch cable with a length of 0.25 meters. It features S/FTP shielding (also known as S-STP), meaning each pair of internal conductors is shielded with both foil and braid shielding to minimize electromagnetic interference and ensure high data integrity. The cable is equipped with two RJ-45 connectors, each featuring gold-plated contacts to ensure a reliable and corrosion-resistant connection. The connectors are fitted with a special boot design that protects them from damage caused by bending, especially during frequent installation or in tight spaces.

Applications
This patch cable is designed for use in local area networks (LAN), particularly in environments requiring high data transfer rates and interference protection. The S/FTP shielding construction is especially suitable for environments with high electromagnetic interference, such as server rooms, office buildings, or when connecting network devices near electrical equipment. The 0.25 m length makes it ideal for short connections, such as between a switch and router, or for connecting devices within a rack.

Features and Specifications in Detail
The cable consists of 100% copper conductors with an AWG size of 28, ensuring sufficient conductivity to meet Cat6 standards. The PVC jacket provides flexibility and mechanical durability, preventing damage even when frequently bent or installed. The gold-plated contacts on the RJ-45 connectors enhance contact quality and prevent oxidation, extending the connection's lifespan. The special boot design protects the connectors from mechanical stress and prevents the shielding from tearing during insertion.

Technology Explained Simply
The S/FTP shielding (foil and braid shielding) offers high protection against electromagnetic interference (EMI) and crosstalk, which is especially important at high data rates. The Cat6 standard supports data rates up to 1 Gbit/s over distances up to 100 meters, with the 0.25 m length posing no limitation. The AWG size 28 indicates the conductor diameter, where a smaller value (higher AWG number) means a thinner conductor — sufficient for short connections like 0.25 m. The PVC jacket is flexible and durable, but not suitable for outdoor use, as it does not meet specific weather resistance standards.

Compatibility and Accessories
The cable is compatible with all devices featuring RJ-45 ports, such as switches, routers, network interface controllers (NICs), and other LAN devices. It complies with ISO/IEC 11801 and TIA/EIA 568B standards, which govern data cable installation in office and enterprise environments. Certifications including CE, RoHS, and REACH confirm compliance with European safety and environmental regulations. No special accessories are required, as the RJ-45 connectors fit directly into corresponding ports.

Installation and Mounting
Installation is done by simply inserting the RJ-45 connectors into the corresponding ports on network devices. Due to its short 0.25 m length, the cable is particularly suitable for use in racks or server rooms where space is limited. The strain relief boots facilitate installation and protect the connectors from mechanical stress. No special tools are required.

Operational Advantages
The combination of S/FTP shielding, gold-plated contacts, and PVC jacket ensures reliable, interference-free data transmission. The 10-year warranty underscores the product's quality and durability. Designed for indoor use, the cable provides a stable connection for short runs in network infrastructures. Compliance with ISO/IEC 11801 and TIA/EIA 568B standards ensures interoperability with other network products.

Certificates
Compliance certificates	CE, RoHS, REACH
Certification	ISO/IEC 11801 & TIA/EIA 568B
Features
Product colour	Red
Cable length	0.25 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	28
Snagless cable boot
Logistics data
Harmonized System (HS) code	84733080
Packaging content
Quantity per pack	1 pc(s)
Weight & dimensions
Weight	16 g

---
