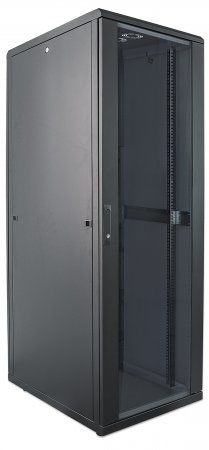

Intellinet 713368
48,3 cm ( 19 inch )network cabinet 42U, 2057 (H) x 800 (W) x 800 (D) mm, protection class IP20, fully assembled, black content_copy

The INTELLINET network cabinets offer a flexible and comprehensive solution for your network installations. Already at the delivery state we come to you like - you can be comfortable to completely mounted network cabinet supply or save space and money with the respective Flatpack variant. In brackets you can choose from several 19 options. From 16 to 42 height units, installation depths of 600 to 800 mm and in each case in black (RAL 9005) or gray (RAL 7035), we offer you an item for every need. The removable side walls and lockable security glass door make wiring and component replacement particularly comfortable. In materials and workmanship, we ensure top quality. This includes a cold-rolled steel frame, zinc plated 48,3 cm ( 19 inch )rails and antistatic powder coating on all sides. - Ideal for all 48,3 cm ( 19 inch )applications - Maximum lifting capacity 1500 kg - Safety-glass door - Galvanized 19 rails - Antistatic powder coating on all sides - steel frame with 2 mm thickness - housing with protection class IP20 - Easy abzunehmende side and back walls - Lockable front door with swing handle - Two openings enable cable entry up or down - vents for optimum air circulation - Delivery completely assembled - 3 years warranty

• 48,3 cm ( 19 inch )
• 42 height units
• Color: Black RAL9005
• Certificates: RoHS, UL, Gost-R
• Protection class: IP20
Dimensions
2057 (H) x 800 (W) x 800 (D) mm
Delivery

• 4 depth-adjustable mounting rails
• 4 leveling feet
• mounting material Colour: Black RAL9005 Product Dimensions: 800 (L) x 800 (W) x 2057 (H) [mm]

Features
Rack capacity	42U
Type	Freestanding rack
Maximum weight capacity	1500 kg
Product colour	Black
Frame type	Closed
Front door construction	Glass
International Protection (IP) code	IP20
Certification	UL, Gost-R
Removable side panels
Side panels included
Key lock
Front door key lock
Adjustable mounting rails
Adjustable depth
Adjustable feet
Logistics data
Harmonized System (HS) code	85381000
Technical details
Compliance certificates	RoHS
Weight & dimensions
Size (imperial)	48.3 cm (19")
Width	800 mm
Depth	800 mm
Height	2033 mm
Weight	131 kg

---
