Server Schrank INTELLINET ZUB 48,3 cm ( 19 inch ) Kabeldurchführung mit Bürstenleiste 1HE [gy] content_copy

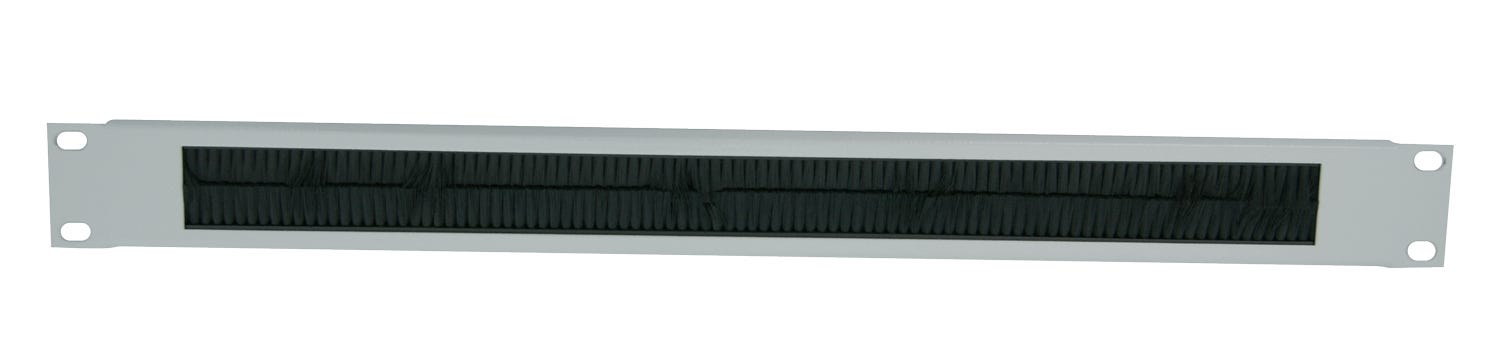

The Intellinet cable entry 48,3 cm ( 19 inch ) 1U in Grey RAL7035 is an accessory for 19-inch racks, enabling the orderly routing of network cables from the rear area of the enclosure into the desired height unit. The device is specifically designed for horizontal installation and serves structured cable management in server and network environments. The integrated brush strip ensures that dust and particles are kept away from sensitive components, supporting the lifespan and reliability of installed devices.

Applications

The cable entry is used in IT infrastructures where clean and structured cable routing within the rack is required. It is particularly suitable for server rooms, data centers, network enclosure installations, and other environments where cables must be introduced from the rear into the rack. The horizontal mounting allows for easy integration into existing rack systems without additional tools or modifications.

Functions and Features in Detail

The device features an integrated brush strip that acts as dust protection while enabling flexible cable routing. The brush strip is designed to accommodate cables of various thicknesses without compromising the integrity of the cabling. The surface is coated with an anti-static powder coating that minimizes electrostatic charging, thereby enhancing the safety of connected devices.

Technology Explained Simply

The frame of the cable entry is made of steel with a wall thickness of 1.2 mm, ensuring high mechanical stability and durability. The material thickness ensures the device remains undistorted even under load from multiple cables or frequent access. The Grey RAL7035 color is standard and visually matches most rack systems. Dimensions are 483 mm (width) × 45 mm (height) × 15 mm (depth), with the height exactly matching 1 height unit (1U). The weight is 210 g, enabling easy handling and installation.

Compatibility and Accessories

The cable entry is designed for 19-inch racks and fits into standard rack structures. It is available in various height units (1U or 2U) and colors (Grey or Black), with the variant described here being 1U and Grey. The brush strip is permanently integrated and requires no additional mounting components. Use in combination with other rack accessories such as cable ties, covers, or cable ducts is possible, provided the physical dimensions are compatible.

Installation and Mounting

Mounting is done horizontally into the rack, placing the cable entry into the desired height unit. Installation requires no special tools, as fastening is done through standard rack openings. The brush strip is pre-mounted and requires no additional adjustment. Cables can be routed directly through the brush strip, ensuring clean and orderly cabling.

Operational Advantages

The cable entry improves the clarity and accessibility of cabling within the rack. The integrated brush strip reduces dust ingress into the rack, promoting easier maintenance and extending the lifespan of installed devices. The anti-static coating minimizes the risk of electrostatic discharges that could damage sensitive electronics. The robust steel construction ensures long-term durability even in professional environments.

The cable entry comes with a 3-year warranty, underscoring the product’s reliability. The width is uniformly 483 mm, the height is 45 mm (equivalent to 1U), and the weight is specified as 210 g.

Features
Product colour	Grey
Housing material	Steel
Rack capacity	1U
Logistics data
Harmonized System (HS) code	85389099
Packaging data
Quantity per pack	1 pc(s)
Weight & dimensions
Size (imperial)	48.3 cm (19")
Width	483 mm
Depth	15 mm
Height	45 mm
Weight	210 g

---
