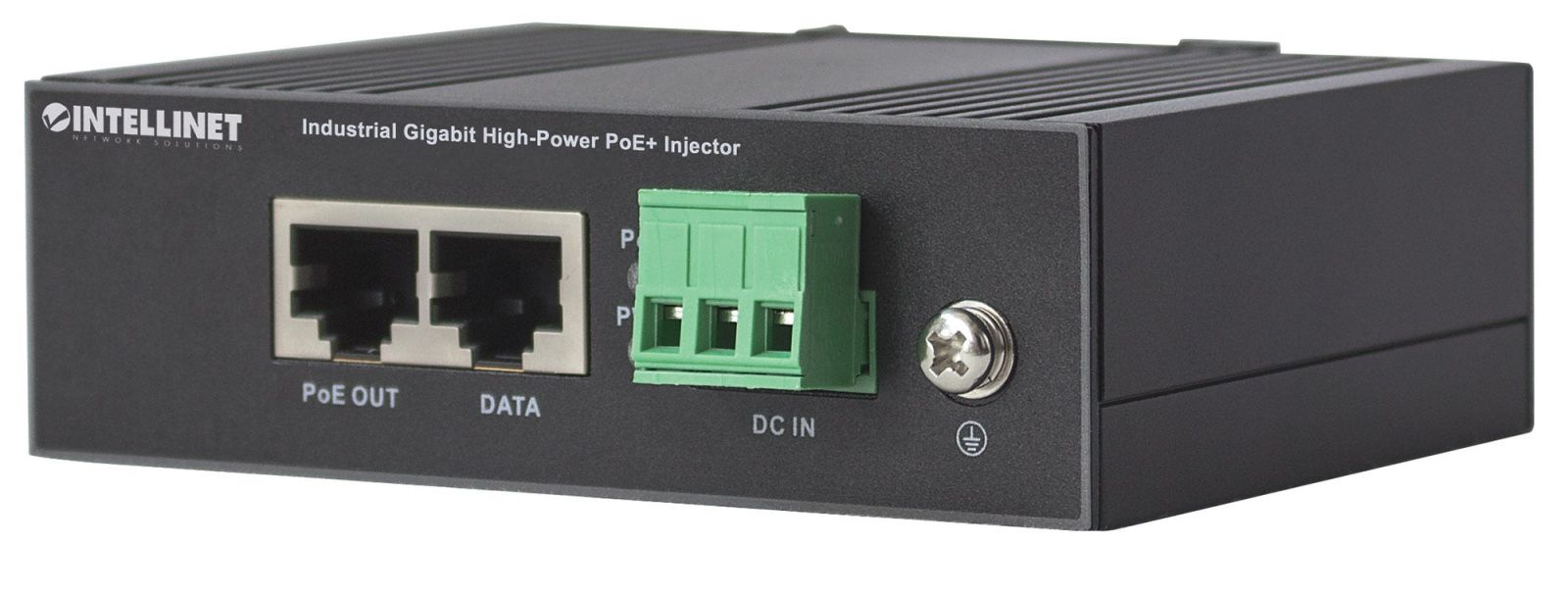

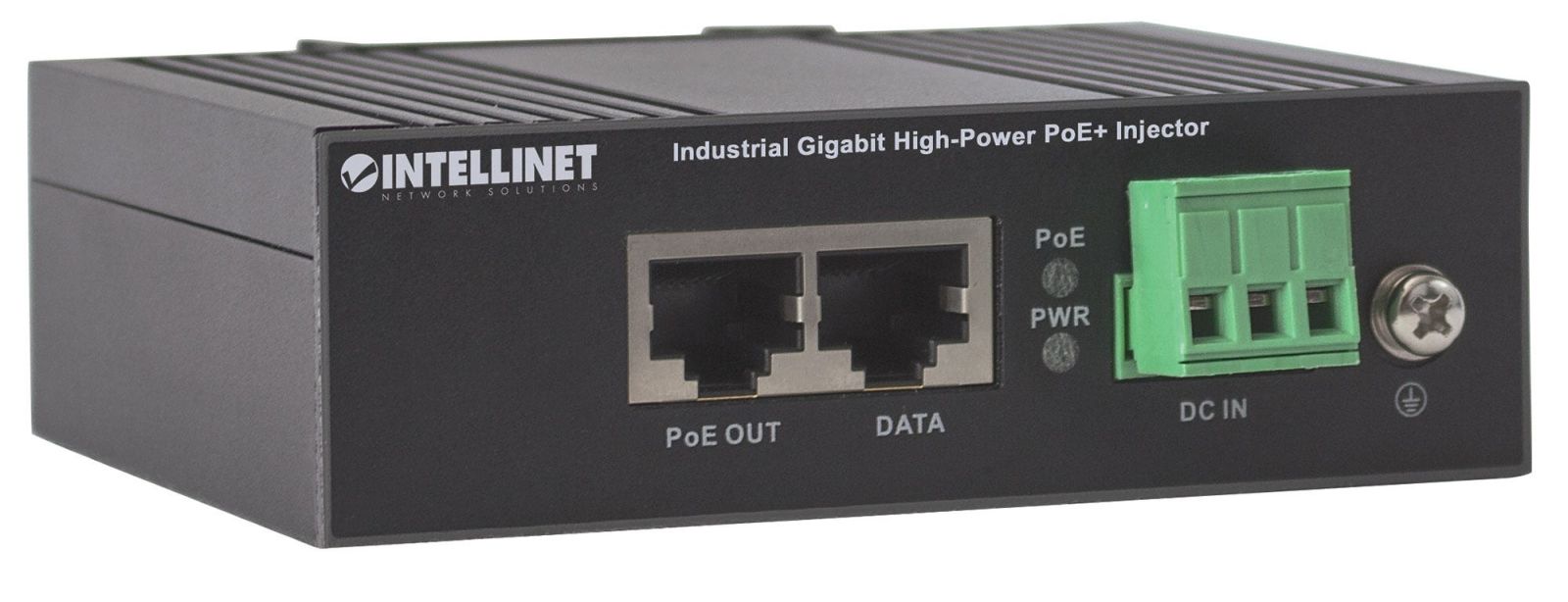

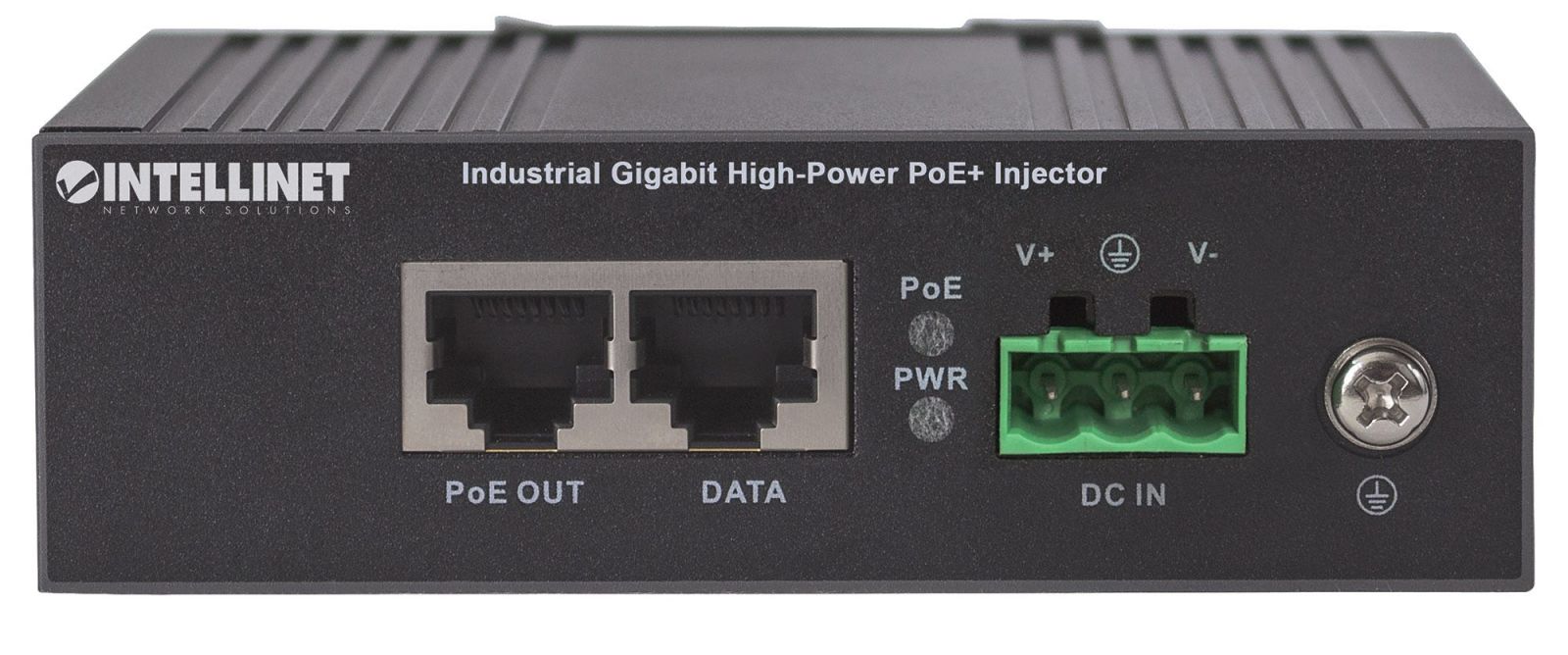

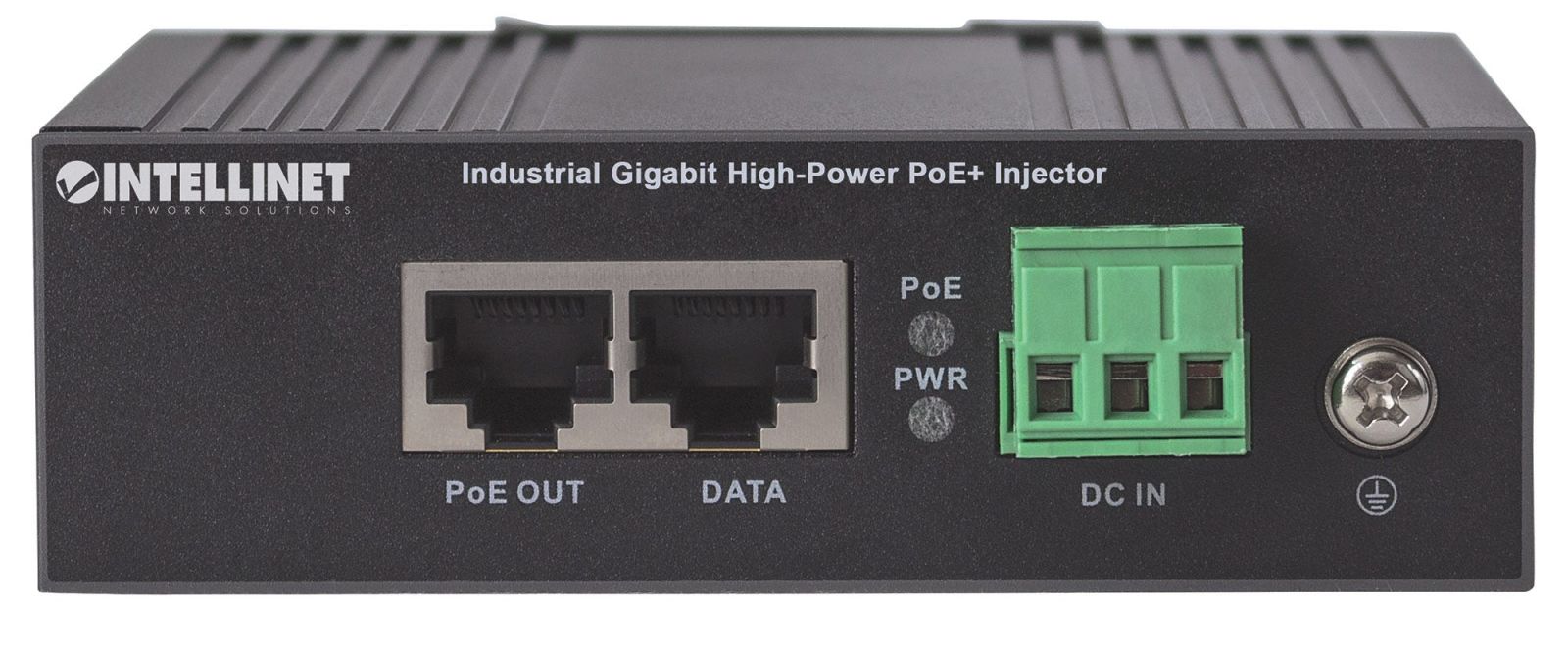

INTELLINET 561365
Gigabit high-power PoE+ industrial injector 1 x 30 watt port, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal housing
|
-10% 79,38 EUR 88,30 EUR |
|
|
( 94,46 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1377927 |
|---|---|
| Mfg Part No: | 561365 |
| UPC/EAN: | 766623561365 |
| Weight: | 0.29 kg |
Product information for INTELLINET 561365:
The Gigabit high-power PoE+ industrial injector connects your IEEE 802.3af/at-compliant devices to the port of a non-PoE-capable one Switches. This means you can provide both power and data to access points, VoIP phones, network cameras and more with a single network cable. Thanks to an output power of up to 30 watts, this injector offers enough energy for most common PoE devices.
Save installation costs and time with PoE
This intelligent solution eliminates the need for power lines to your network cameras or VoIP phones. This saves you a lot of time and money on cabling. You also remain very flexible if you need to redistribute these Powered Devices (PD) in your office at a later date.
Suitable for industrial applications
In With its robust metal housing, this injector has useful properties for industrial applications. These include protection class IP30 and the ability to mount on DIN rails. - Fully IEEE 802.3af and IEEE 802.3at compliant
- Up to 30 W power on two pairs of wires
- Automatic detection of IEEE 802.3af - or IEEE 802.3at-PD devices (Powered Devices)
- Supports 10/100/1000Base-T applications
- LED indicators for input current and PoE output power
- Supports ranges up to 100 m
- Input voltage 45 – 56 V

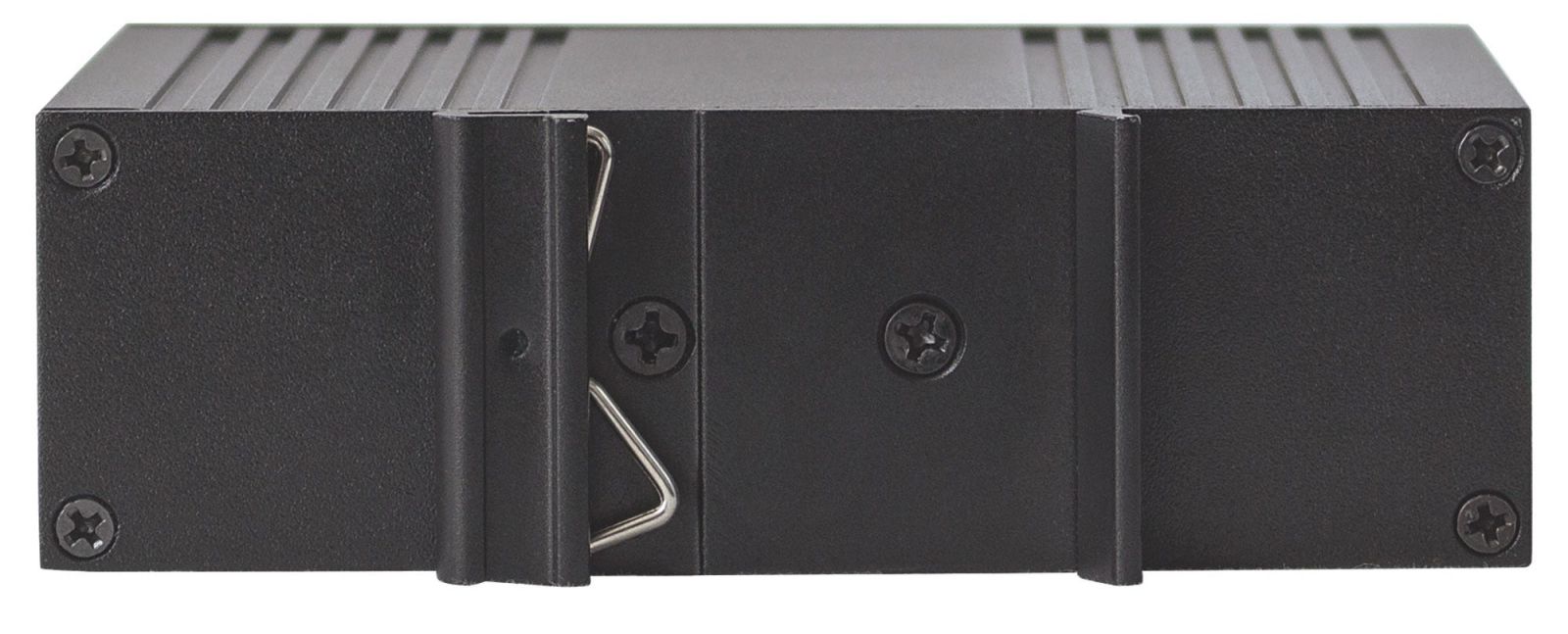

- On DIN -Rail mountable
- Slim metal housing with protection class IP30
- Protection against electrostatic discharge (ESD) up to 6 kV
- Surge protection on the power socket with 8/20 µs, DM/CM 3 kA
- Surge protection on the RJ45 port with 10/700 µs, DM /CM 6 kV
- Operating temperature -40 to 75?
- Requires additional power supply for industrial applications (not included)
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (High-Power PoE+ Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet) General
- Supported media:
- 100Base-TX UTP/STP RJ45, 8-pin.
- 1000Base-T UTP/STP RJ45, 8-pin.
- Ports:
- 1 x RJ45 1000 Mbps input port
- 1 x RJ45 1000 Mbps output port for data and power
- 1 x power input (terminal block)
- Compatibility:
- Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices Certificates:
- FCC Class A Part 15B
- CE EMI
- IEC 60068-2-32 (drop)
- 3/6(+), 1/2(-)
- MODE A Power Delivery (power supply as end span) LEDs
- PoE, Power Current
- DC input: 45.0 - 56.0 V; 0.6A; 31.0 W
- PoE output: 44.0 - 55.0 V (corresponding to input current); 0.6A; 30.0 W Physical data
- Metal housing IP30
- Dimensions: 78 (L) x 32 (W) x 103 (H) mm
- Weight: 295 g
- Operating temperature: -40 - 75°C
- Humidity: 5 - 95% RH, non-condensing
- Storage temperature: -40 – 85°C Scope of delivery
- Gigabit high-power PoE+ industrial injector
- manual Color: Black Product dimensions: 78 (L) x 32 (W) x 103 (H) [mm]
EN 55022
EN 61000-3-2
EN 61000-3- 3
EMS
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
EN 61000-4-4 (EFT)
EN 61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000- 4-8 (PFMF)
60068-2-27 (shock resistance)
60068-2-6 (vibration)
Power pin assignment
