INTELLINET 561211
Outdoor Gigabit High-Power PoE+ Extender IEEE 802.3at/af Power over Ethernet (PoE+/PoE), extends the range of a PoE connection by an additional 100 meters, metal, IP65

More range for PoE connections - even in harsh outdoor weather
The Intellinet Outdoor Gigabit High-Power PoE+ Extender, model 561211, extends the range of a connection between PoE source and PoE end device by a further 100 m using a Cat5 or Cat6 cable . This overcomes the 100 m range limitation that normally limits PoE connections. For even greater distances, up to five extenders can be cascaded. No power supply is required for power supply; the extender draws power directly from the PoE source.
Designed for outdoor use
With a protection class of IP65 and functionality in temperatures between -40 and 75°C, this extender defies even the most adverse conditions. For purely indoor use, you can alternatively use the Intellinet PoE+ Extender Model 560962.
Easy installation

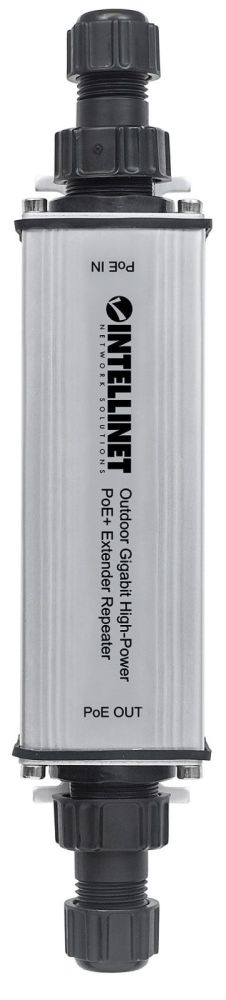

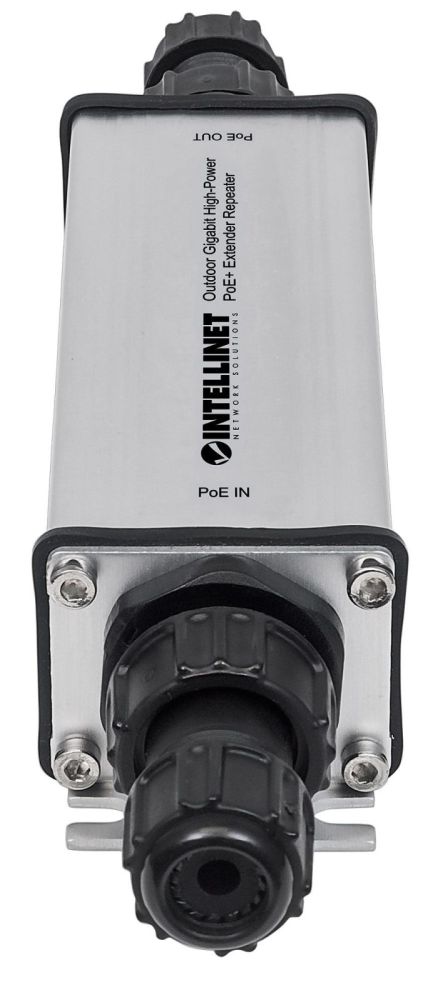

Simply connect your PoE injector or PoE switch to the PoE In" port and the PoE end device such as VoIP phone or camera to the "PoE Out port. That's all. No further configuration is necessary.
Less cabling costs
Access points, cameras and VoIP phones that are otherwise too far from your switch or injector to power them via PoE are within reach with this extender. This saves you time and money on power cables and sockets that you would have to lay without PoE.
Power over Ethernet 802.3at Compliant
This Gigabit High-Power PoE+ Extender supports the IEEE 802.3at protocol. It transports data at up to 1000 Mbit/s and power at up to 30 watts. It is also backwards compatible with IEEE 802.3af PoE devices. The cable length at both ends can be up to 100 m for a total data and power range of 200 m.
Cascadable
To bridge even greater distances, you can connect several extenders in series. Please note that for each additional extender you lose approximately 4 watts of usable power. If possible, use a PoE injector with a 30 watt rating (e.g. Intellinet Model 560566). Up to four cascaded extenders are possible for a total range of 500 m. - Extends an existing PoE connection beyond the 100 m distance limit

• Saves time and installation costs by transmitting data and power over the existing network cables
• By cascading multiple PoE -Extenders (model 561211) can be used to bridge even greater distances
• Up to four PoE extenders can be cascaded for a total range of up to 500 m
• Supports 10/100/1000 Mbit/s transfer rates and provides up to 25 W for one PoE device available
• Power is only transmitted to IEEE 802.3af/at-compliant devices, non-PoE-capable devices only receive data
• Does not require an external power supply; Power consumption occurs directly via the PoE input
• Compatible with all IEEE 802.3at/af-compliant PoE injectors and switches (PSE)
• Compatible with all IEEE 802.3at/af-compliant Powered Devices (PD)
• Fan-free design for quiet operation

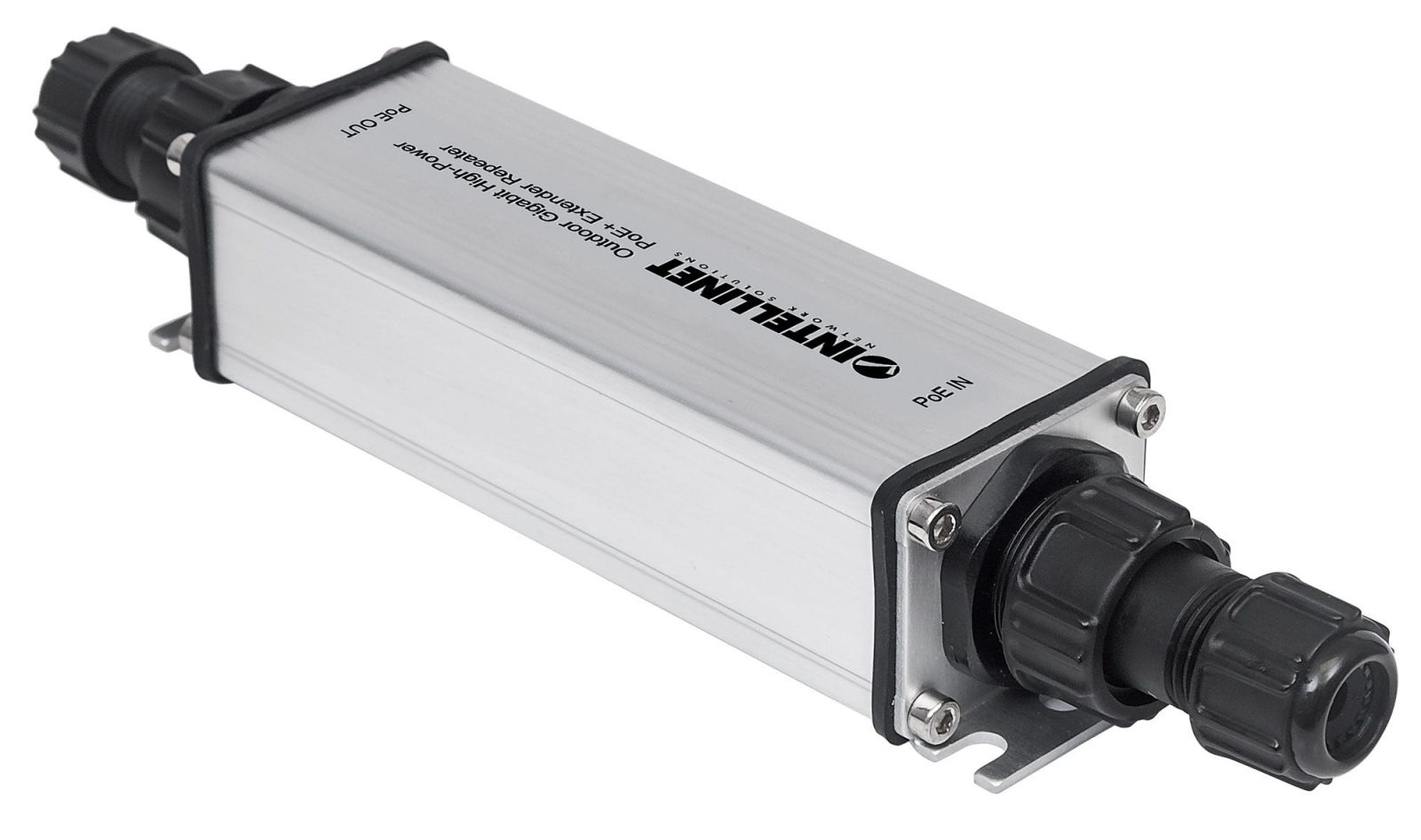

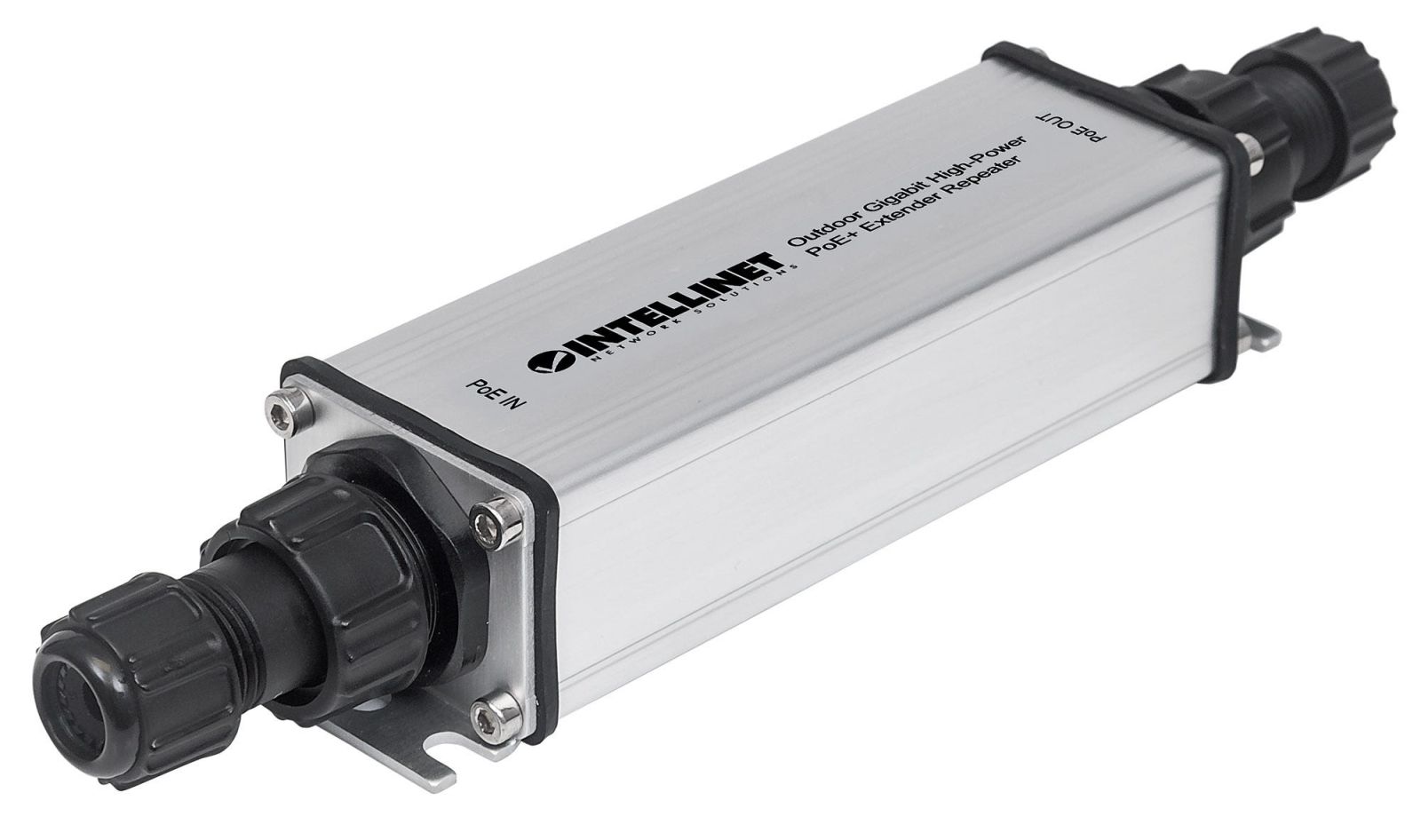

• Compact aluminum housing
• Protection class IP65 — waterproof and dust-proof
• Suitable for wall mounting
• 3-year warranty Standards
• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
General

• Ports:

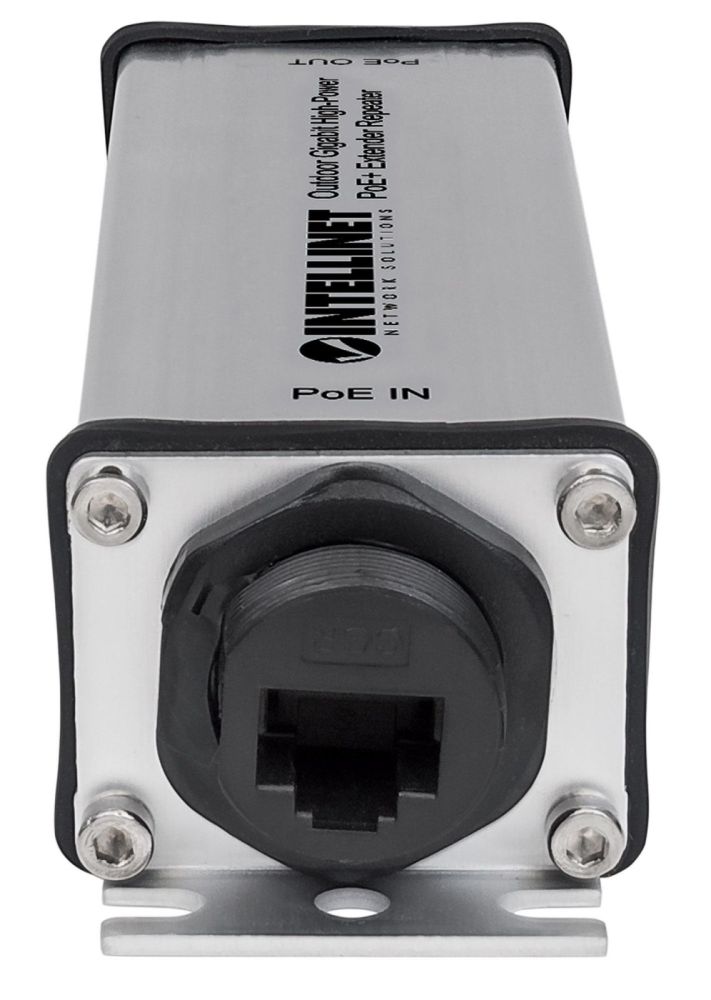

• 1 x RJ45 10/100/1000 Mbit/s input port for 48V IEEE 802.3af/at compliant signal
• 1 x RJ45 10 /100/1000 Mbps PoE output port
• Certificates: FCC Class B, CE
Power

• Max PD output power: 25W
• Max power consumption 4W
• Input power: IEEE 802.3af/at compliant PSE
• PoE pin input assignment
• IEEE Alternative A (Pairs 1/2 and 3/6)
• IEEE Alternative B (Pairs 4/5 and 7/8)
• PoE Pin Output Assignment
• IEEE Alternative A (Pairs 1/2 and 3/6)
Physical Data

• Metal housing: IP65
• Dimensions: 145 (L) x 38 (W) x 30 (H) mm
• Net weight: 130 g
• Gross weight: 150 g
• Operating temperature: -40 - 75°C
Scope of delivery

• Outdoor Gigabit High-Power PoE+ Extender
• Quick guide Color: Black Product dimensions: 145 (L) x 38 (W) x 30 (H) [mm]
