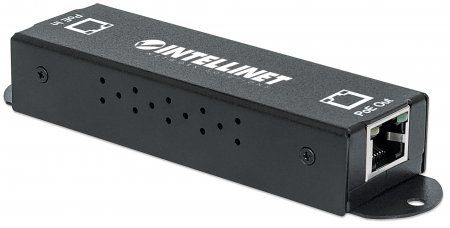

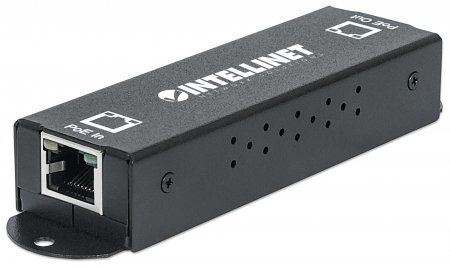

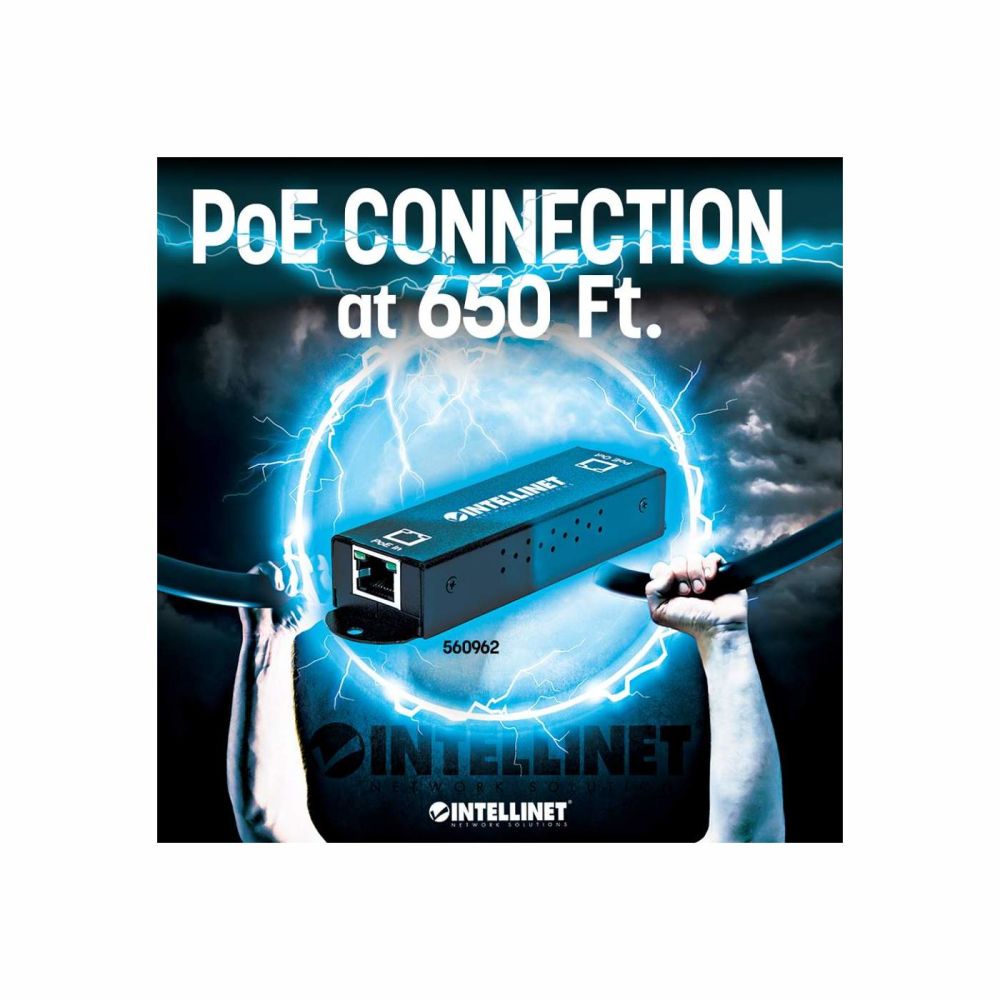

INTELLINET 560962 1-Port Gigabit High Power PoE + IEEE 802.3at Extenders + Repeater / af Power over Ethernet (PoE + / PoE), metal
|
90,58 EUR |
|||||||||||
|
( 107,79 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 257282 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 560962 | ||||||||||
| UPC/EAN: | 766623560962 | ||||||||||
| Weight: | 0.1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for INTELLINET 560962:
- Saves time and installation costs by transferring data and power over existing network cables
- By cascading multiple PoE Extender (Model 560962) can even greater distances to be bridged
- Supports 10 / 100/1000-Mbit / s data transfer rates and provides up to 25 W for a PoE device available
- current 802.3af / at-compliant devices will be transmitted only to IEEE, non-PoE devices only receive data
- Requires no external Power Supply; Current consumption directly via the PoE input
- Supports all IEEE 802.3at and IEEE 802.3af-compliant PoE injectors and switches (PSE)
- Supports all IEEE 802.3at and IEEE 802.3af-compliant PoE devices (PD)
- LEDs for PoE and data connection compact metal housing -
- Suitable for wall mounting
- 3 years warranty standards
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (high power PoE + Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3 from (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet) General
- Supported Media:
- 100Base-TX Category 5 UTP / STP RJ45, 8-pole.
- 1000Base-T Cat5e UTP / STP RJ45, 8-pole.
- Ports:

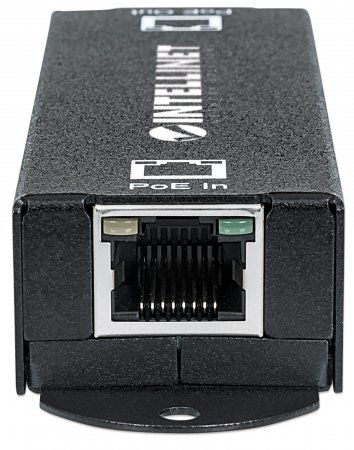

- 1 RJ45 10/100/1000 Mbit / s input port for 48V IEEE 802.3af / at-Conf. Signal

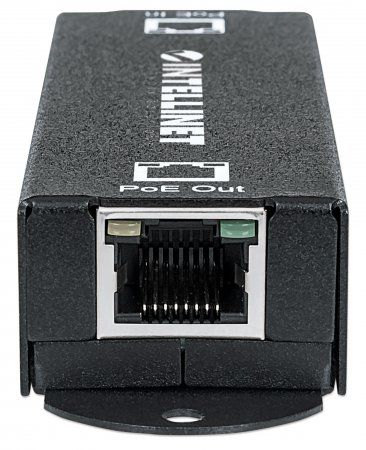

- 1 RJ45 10/100/1000 Mbit / s output port
- Certifications: FCC Class A, CE current
- Maximum PoE output
- 24.6 W with a PoE Extender to 200 m cable length
- 20 W with two PoE extenders to 300 m cable length
- 16.2 W with three PoE extenders to 400 m cable length
- 12.5 W with four PoE extenders to 500 m cable length
- input power: IEEE 802.3af / at-compliant PSE Delivery

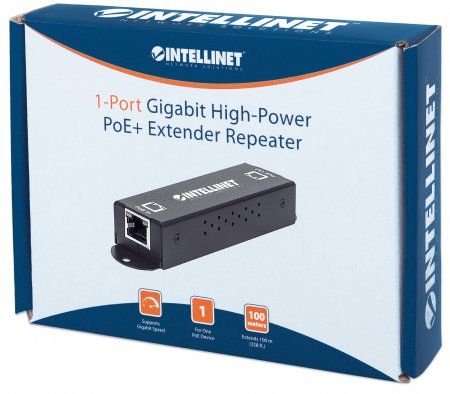

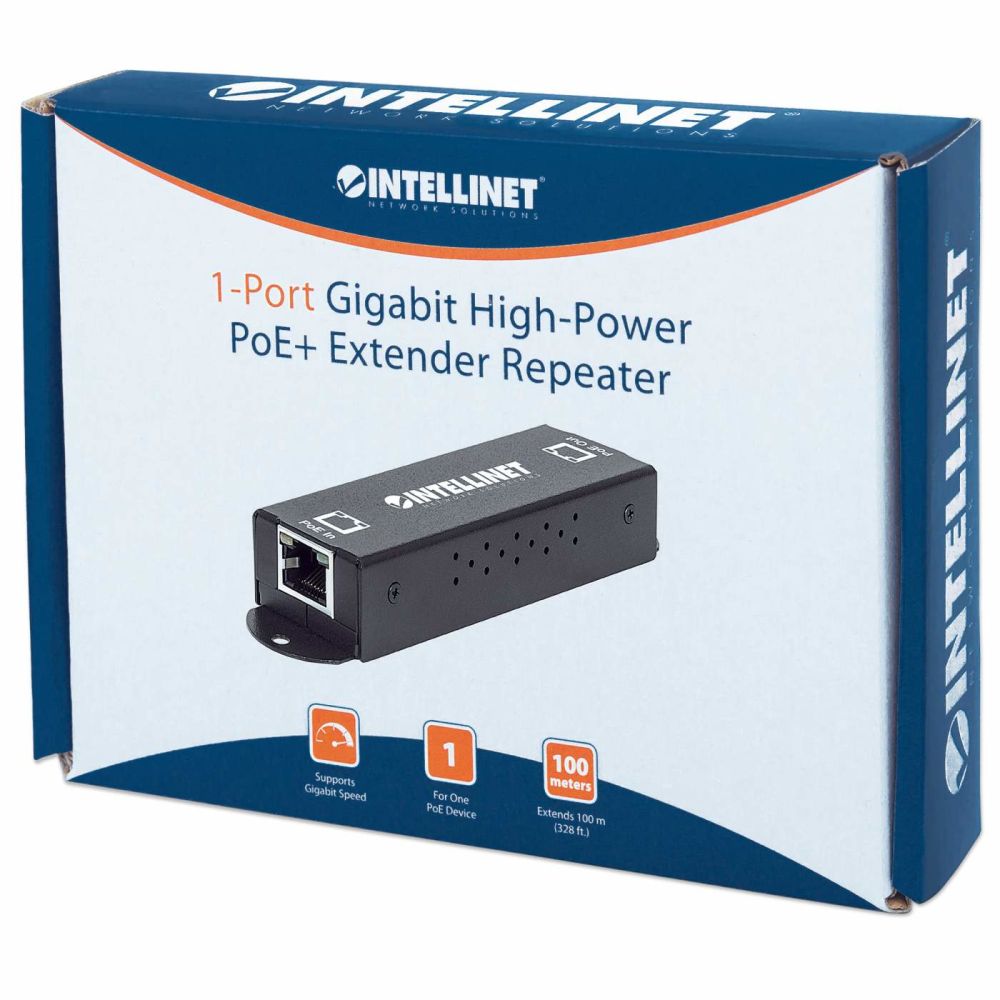

- 1-Port Gigabit High Power PoE + Extender Repeater
- Quick Start Guide Color: Black Product Dimensions: 102.8 (L) x 31 (W) x 20 (H) [mm]
