IT-Equipment ➤ Networks ➤ Accessories ➤ Power Supply / Wall Plug Transformers ➤ Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE)
Intellinet Logo

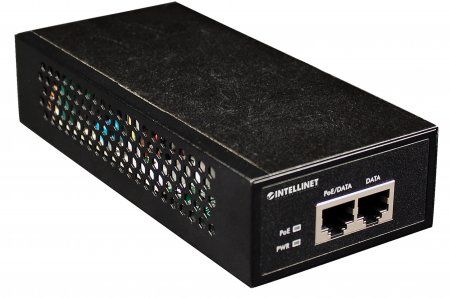

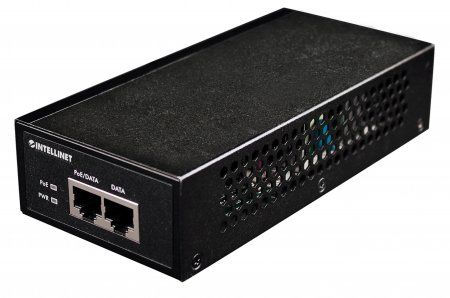

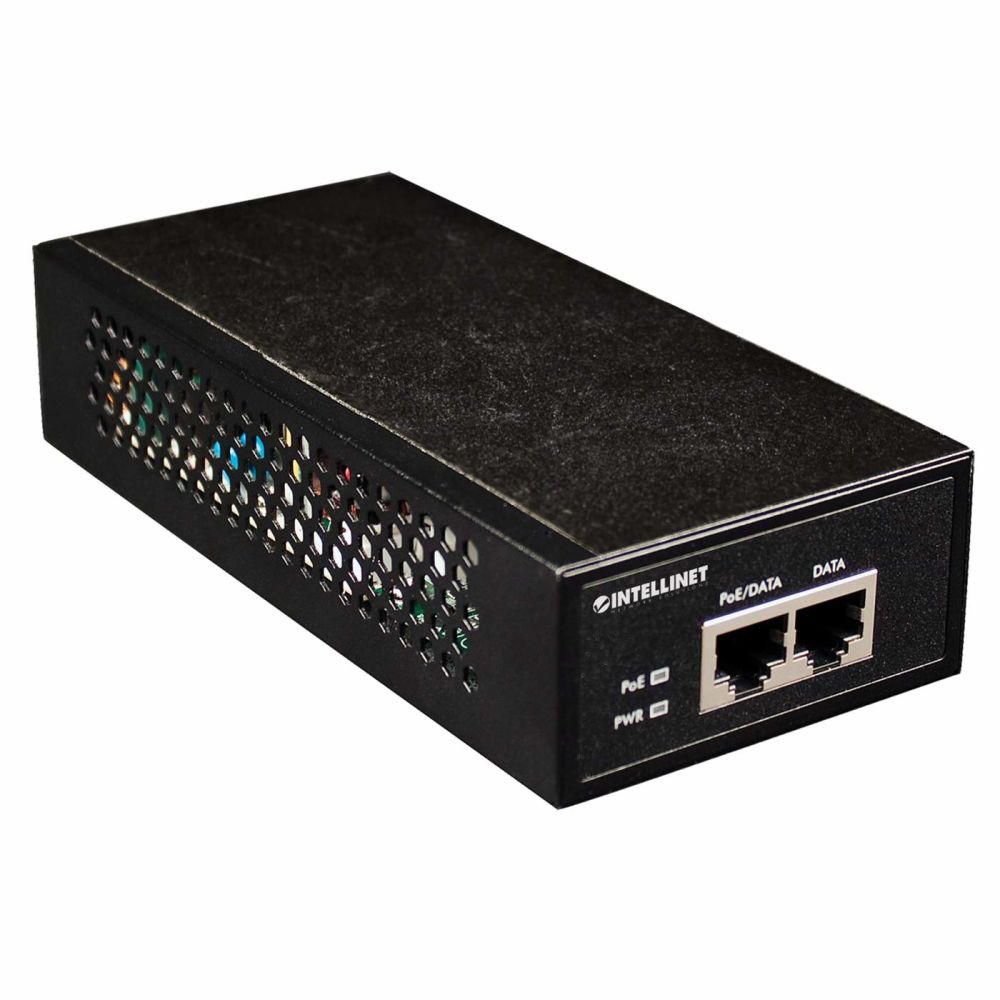

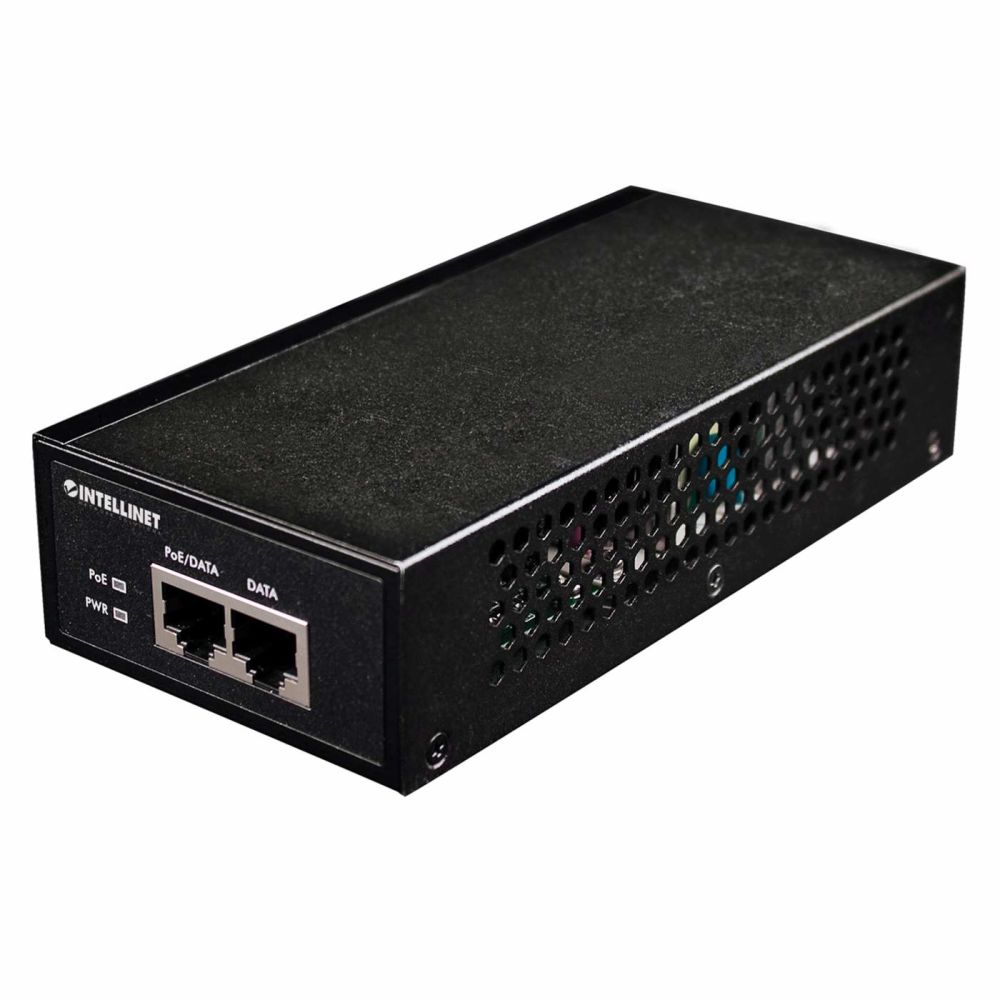

Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE)

Your rating:
Average rating
product review for Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE)
( 0 / 5 ) 0 ratings
41,01 EUR
( 48,80 EUR incl. VAT )
≈ £35.11  |  ≈ $47.37
plus delivery charges: 53,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >25 pieces
1x Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE)
Printing view Bookmark Wholesale Inquiry
End-Of-Life: 13. May 2026
Lieske Part No.:474791
Mfg Part No: 560566
UPC/EAN: 766623560566
Weight:0.677 kg
Graduated prices net
From piecesPrice per pieces
1038,86 EUR
2536,70 EUR
5034,55 EUR
7532,40 EUR
Further Power Supply / Wall Plug Transformers from IntellinetFurther products in category Power Supply / Wall Plug Transformers All products of Intellinet

Product information for Intellinet 560566:

  • Saves installation costs through the transmission of data and power over existing network cable
    • Output power up to 30 watts
    • Supports all IEEE 802.3af and IEEE 802.3at-compliant PoE devices (wireless access points and bridges, VoIP phones, network cameras)
      • - Supports IEEE 802.3at/af-Erkennung and protection against short circuit, overload and overvoltage
      - 3 years warranty standards
      - IEEE 802.3af (Power over Ethernet)
      - IEEE 802.3at (PoE + High-Power Power over Ethernet)
      - IEEE 802.3 (10Base-T Ethernet)
      - IEEE 802.3ab (Gigabit Ethernet)
      - IEEE 802.3u (100Base-TX Fast Ethernet)

      Generally
    • Untestützte media:
    • 100Base-TX Cat5 UTP / STP RJ45, 8-pole.
    • 1000Base-T Cat5e UTP / STP RJ45, 8-pole.

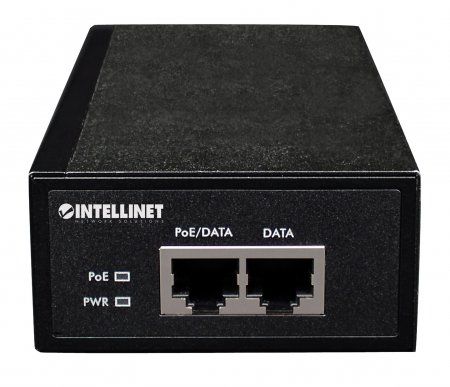

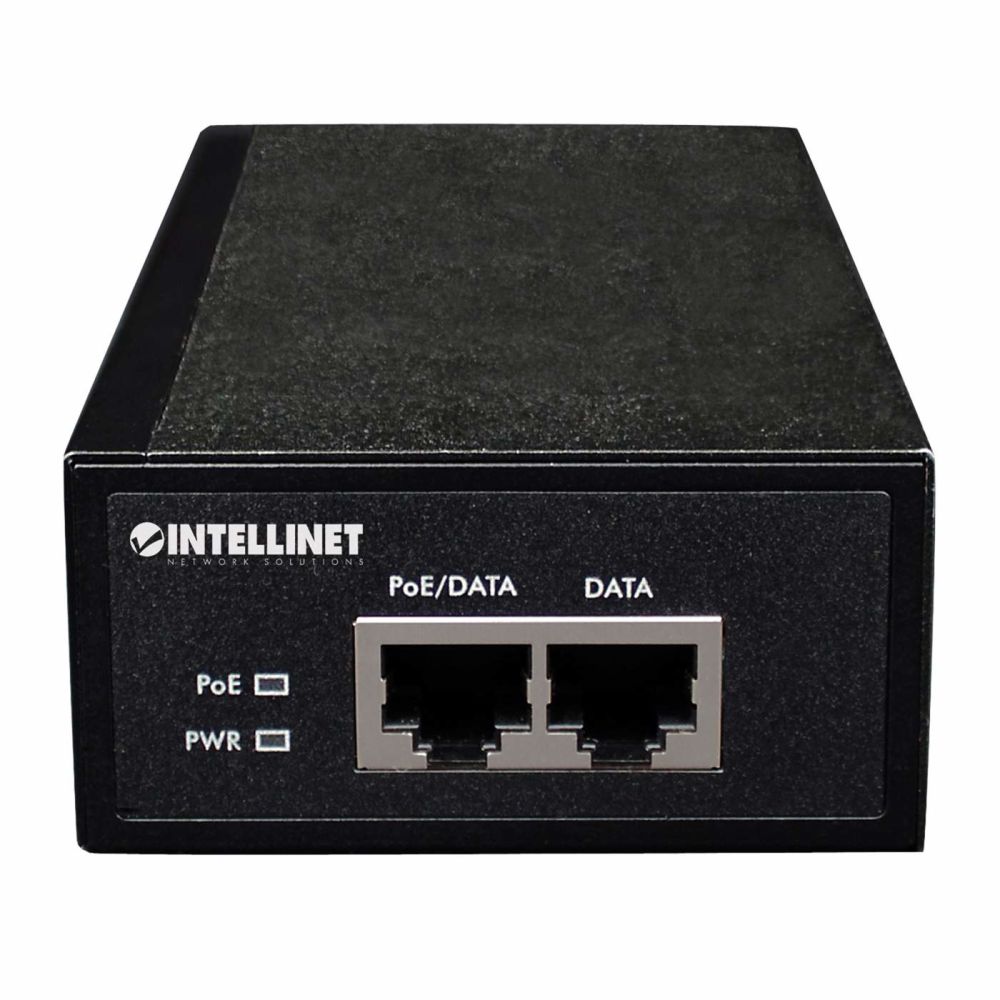

    • Ports:
    • 1 RJ45 1000Mbps input port
    • 1 RJ45 1000Mbps output port data and power
    • 1 connector for external power supplies
    • Protection:
    • Short circuit / earth fault
    • Overload at voltages above 1.8 A
    • Surge protection for more than 58 V
    • Compatibility - general: all IEEE 802.3at and IEEE 802.3af-compliant PoE-powered devices
    • Supported INTELLINET NETWORK SOLUTIONS products:
    • Wireless 300N Access Point (524735, 524711, 525251)
    • IEEE 802.3at PoE + Splitter (560443)
    • Network Cameras (550932 NBCC30-IR 550963 NFC30-IR 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR , 551229 NFD130-IR 551236 NFD130-IRV)
    • Certifications: FCC Class A Part 15, CE 89/336/EEC RJ45 input pins - Pin 1: + Rx (Receive Data) - Pin 2: Rx (Receive Data) - Pin 3: Tx + (data transfer) - Pin 4: NC (not connected) - Pin 5: NC (not connected) - Pin 6: Tx (data transfer) - Pin 7: NC (not connected) - Pin 8: NC (not connected ) RJ45 output pins (data + power) - Pin 1: Rx + (Receive Data) and stream [+] - Pin 2: Rx (Receive Data) and stream [+] - Pin 3: Tx + (data transfer), and power [- ] - Pin 4: NC (not connected) - Pin 5: NC (not connected) - Pin 6: Tx (data transfer) and power [-] - Pin 7: NC (not connected) - Pin 8: NC (not connected )





















    LED
    - PoE Power

    Current

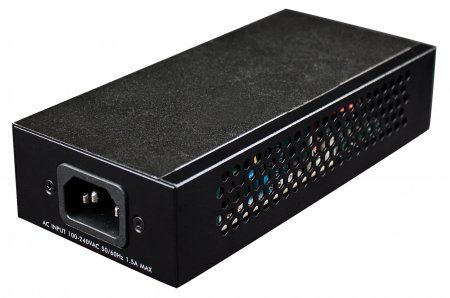

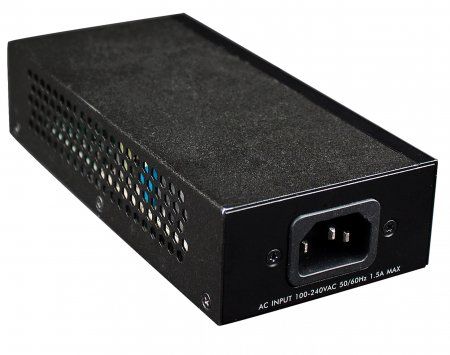

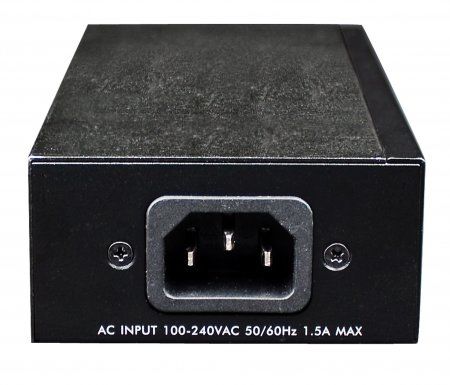

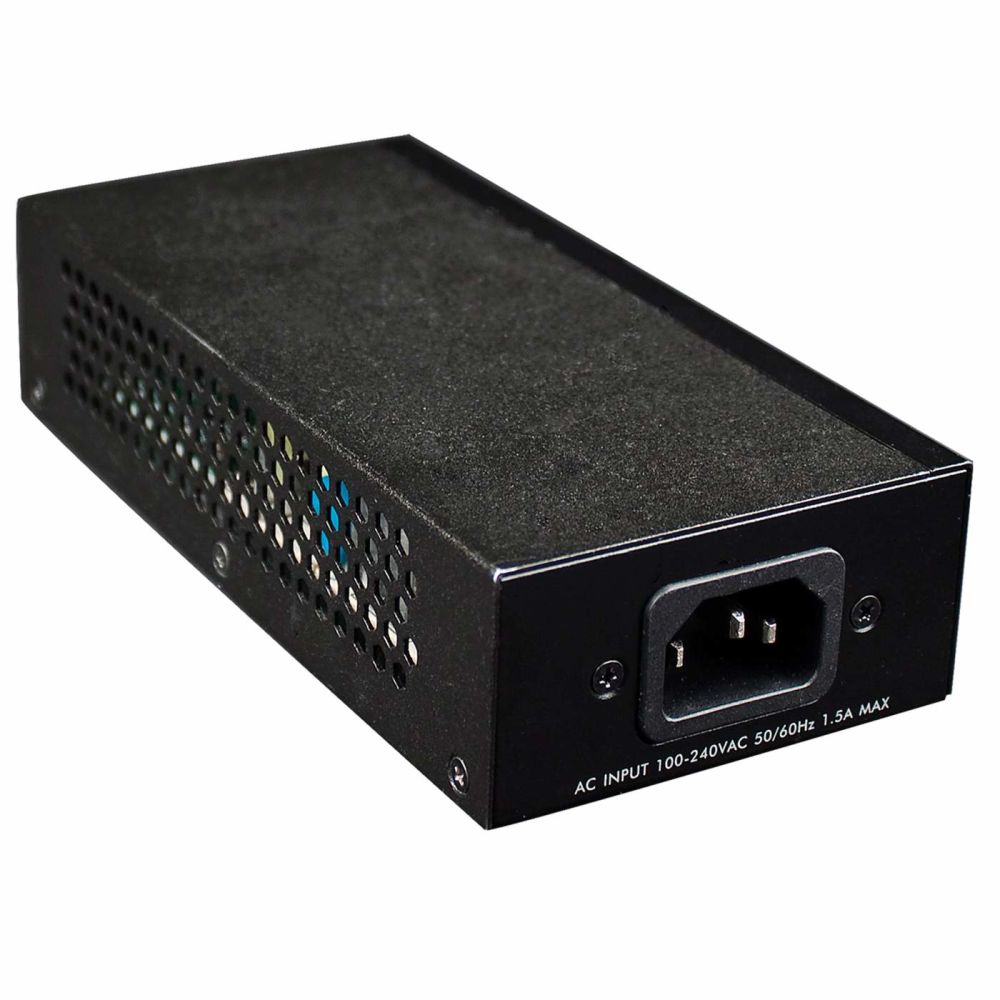

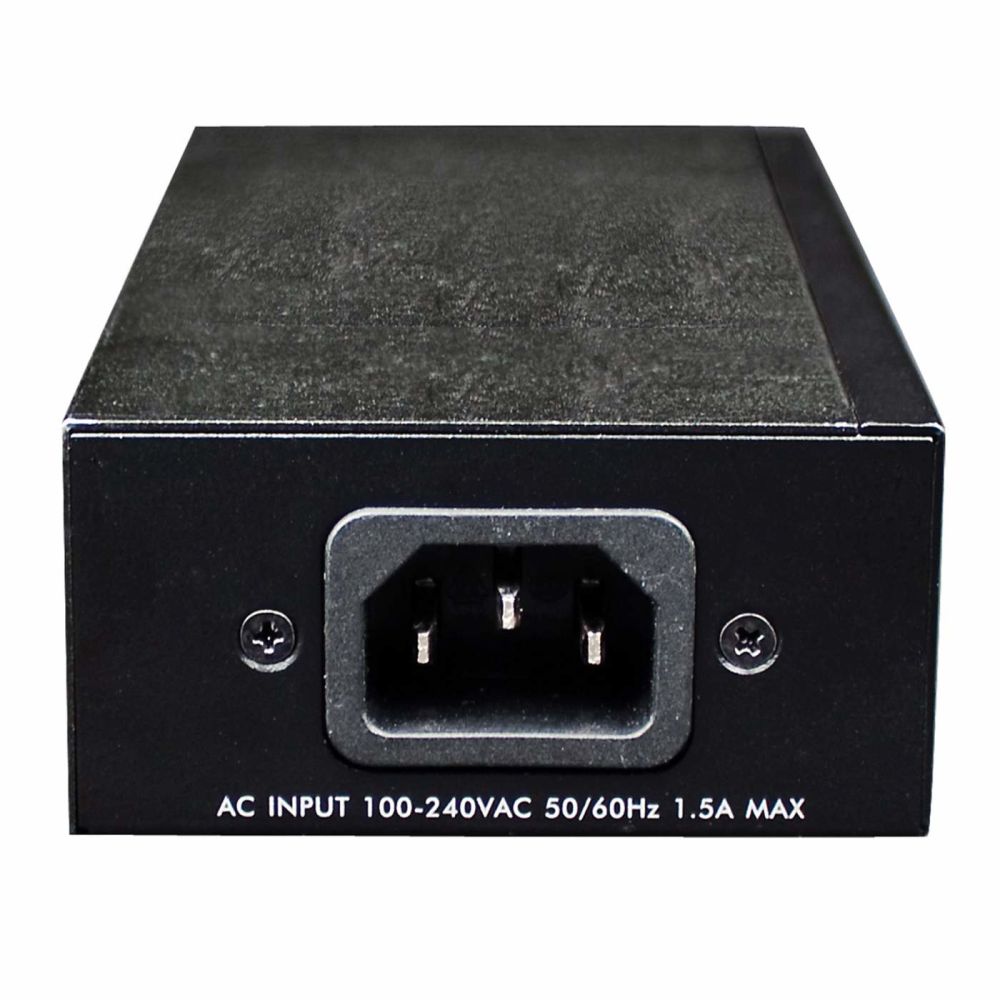

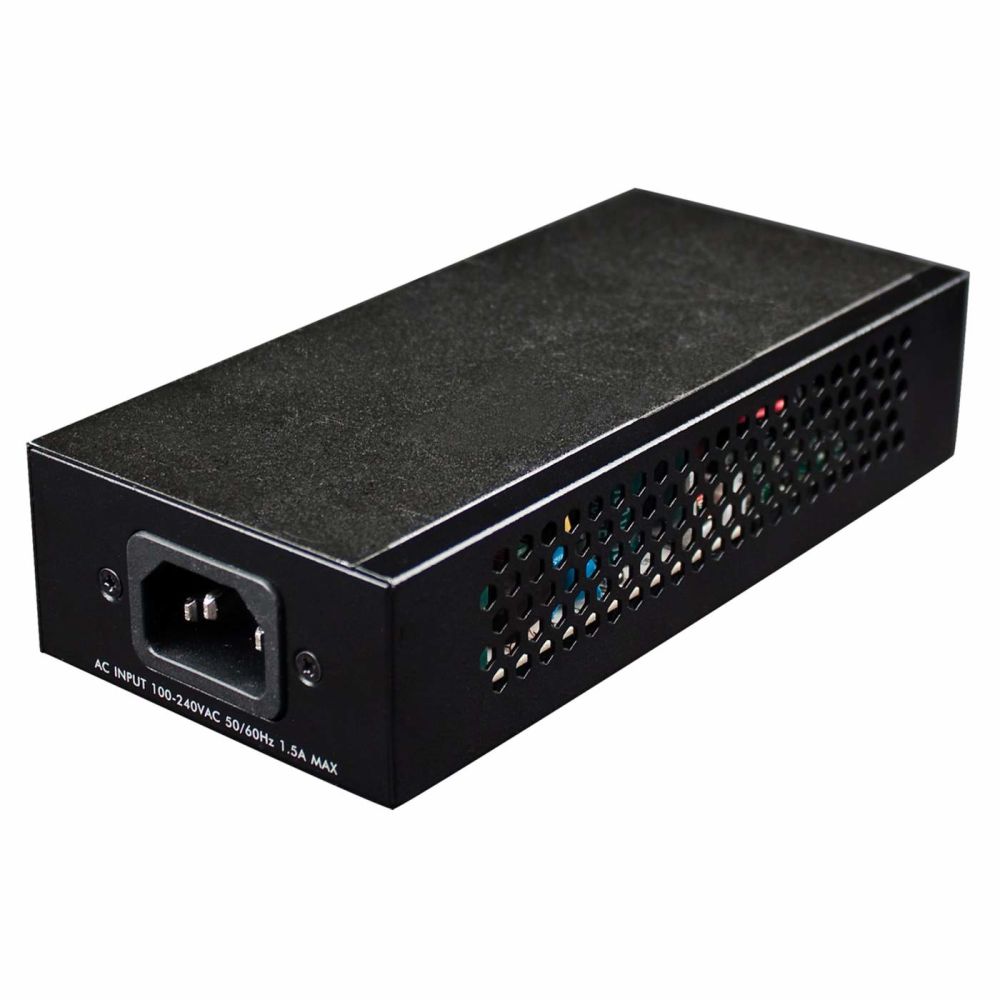

    • Input: 100 - 240V AC, 50 - 60 Hz
    • Power consumption: 42 watts (max)

    Technical Details
    - Metal housing
    • Dimensions: 154 (L) x 72 (W) x 35 (H) mm
    • Weight: 0.79 kg
    • Operating Temperature: 5 - 45 ° C
      • - Humidity: 10 - 90% RH, non-condensing
      - Storage temperature: -20 - 55 ° C

      Scope of delivery
      - 1-Port Gigabit High Power PoE Injector
      - Power cable
      - Screws and dowels
      - Manual Color: Black Product dimensions: 154 (L) x 72 (W) x 35 (H) mm


    Please note...
    We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.

    Questions & answers

    What is the delivery time of Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE)?

    The article Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE) is currently in stock

    According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 560566 to our sales team for an exact delivery time.

    How can I buy the item at a lower price?

    We offer you Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE) always at the best possible price. We can give you a discount of 2% on Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE) if you choose payment in advance on ordering.

    In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Intellinet 560566 1-Port Gigabit High Power PoE Injector + 1 x 30 W, 802.3at/af IEEE Power over Ethernet (PoE + / PoE) we can offer you a price of 38,86 EUR per piece. The more you buy, the cheaper the article will be.

    We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
