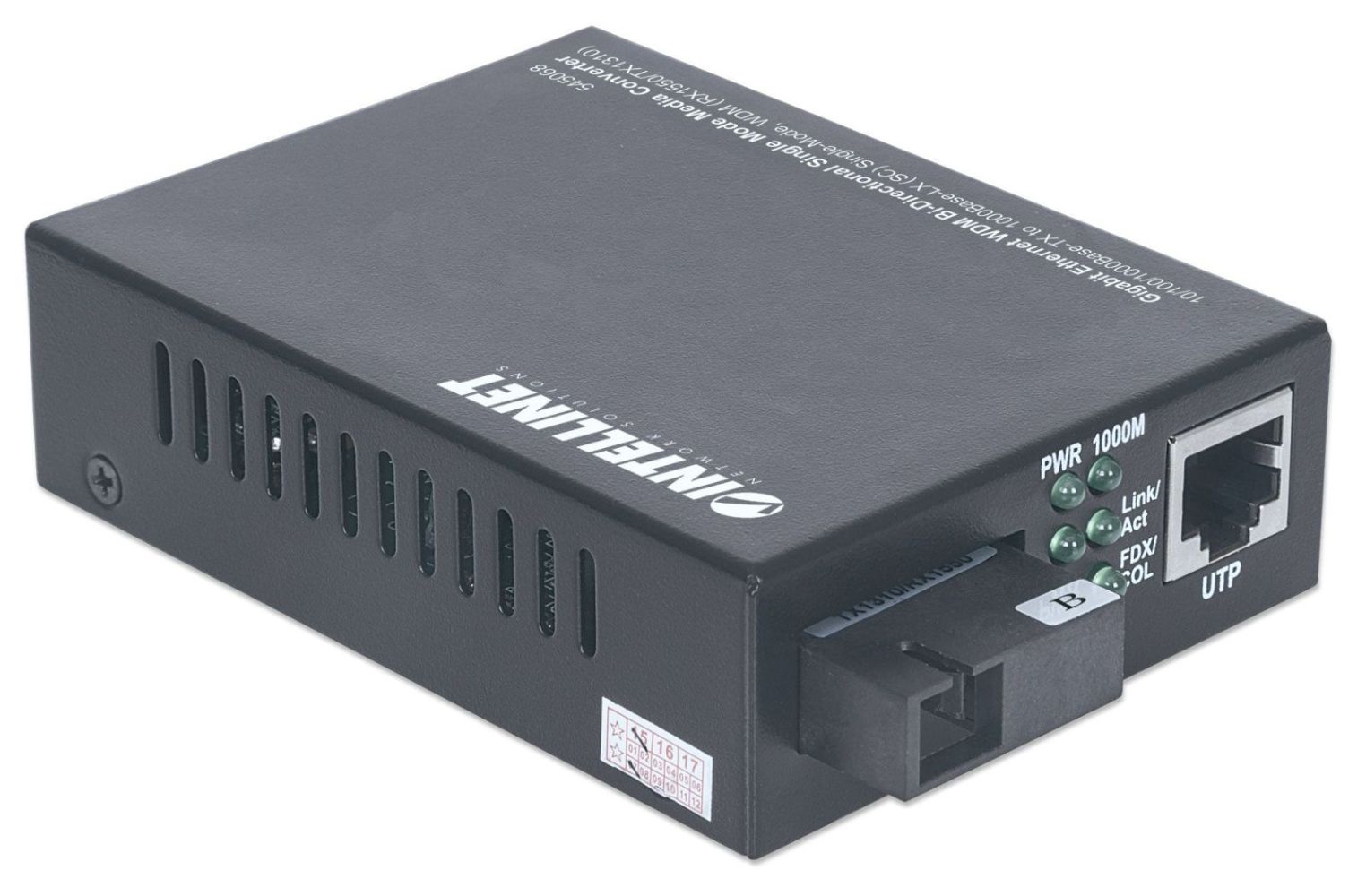

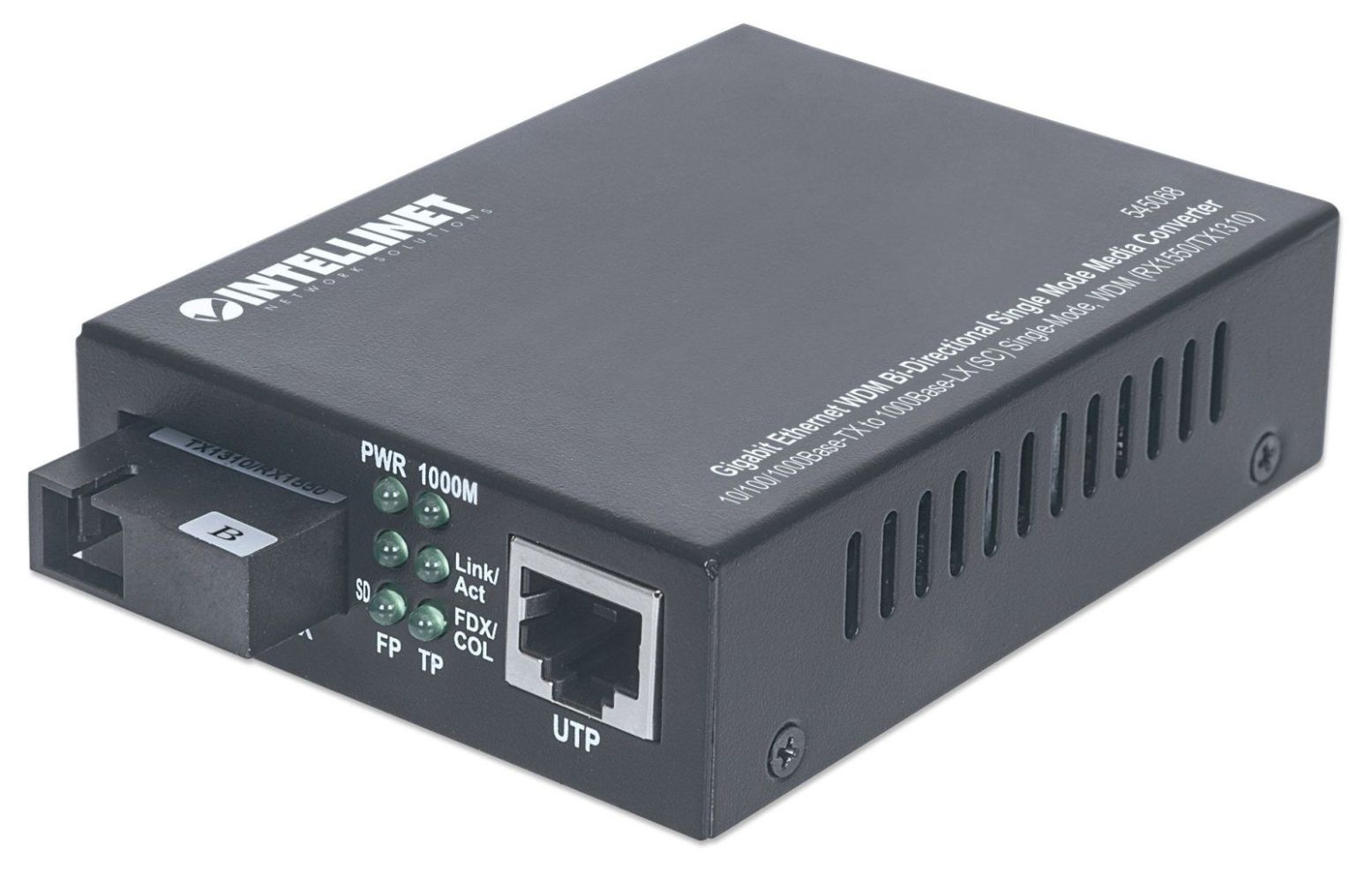

INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310)
|
86,93 EUR |
|||||||||||
|
( 103,45 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 413836 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 545068 | ||||||||||
| UPC/EAN: | 766623545068 | ||||||||||
| Weight: | 0.18 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for INTELLINET 545068:
- Requires use with Gigabit Ethernet WDM bidirectional singlemode media converter, model 545 075
- Data Transfer Rate: 10/100/1000 Mbit / s
- WDM technology (Wavelength Division Multiplexing ) uses only one fiber for data transmission and reception on separate wavelengths
- Wavelengths: receiving (RX), 1550 nm; Send (TX), 1310 nm
- 10/100 / 1000Base-TX RJ45 port, maximum range 100 m (CAT5e or higher)
- RJ45 port with Auto MDI / MDI-X support

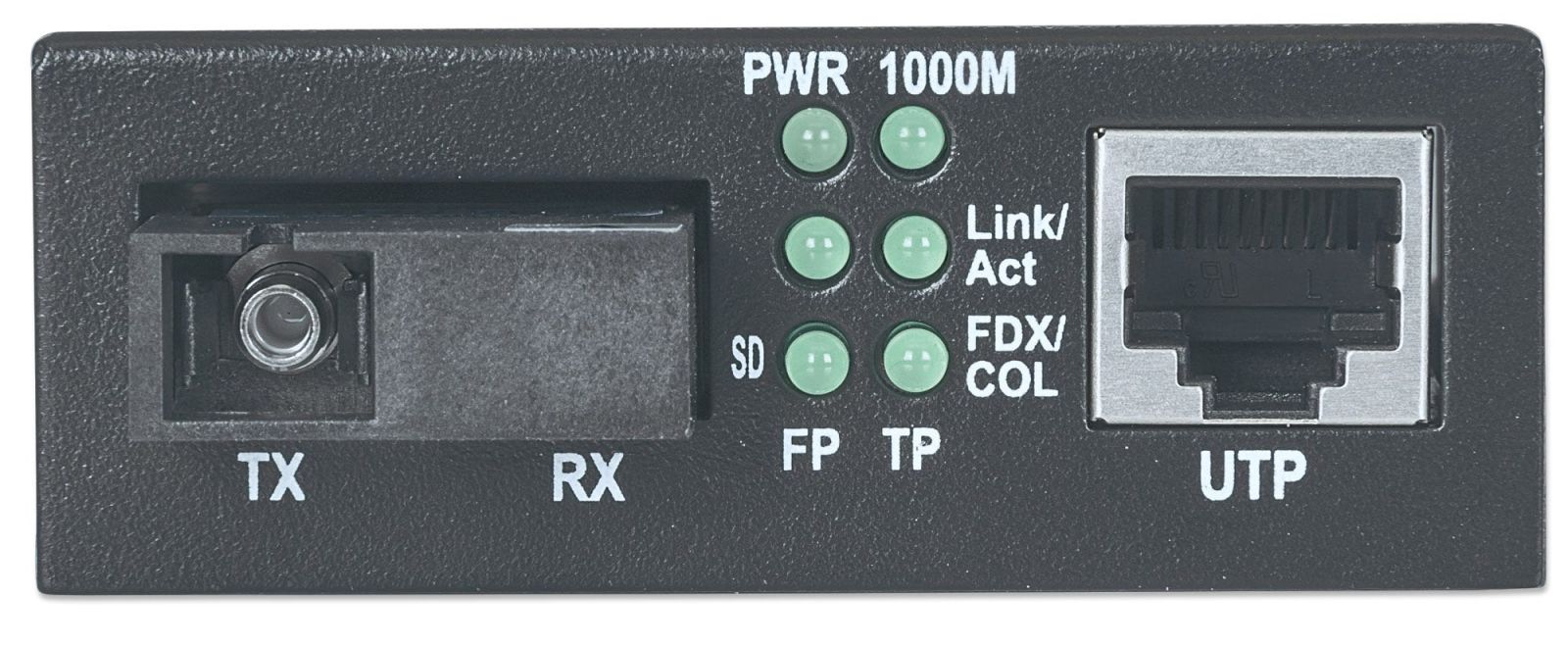

- LEDs for device status
- Can be used as a stand-alone converter or with the 14-slot Media Converter Chassis, Model 507356

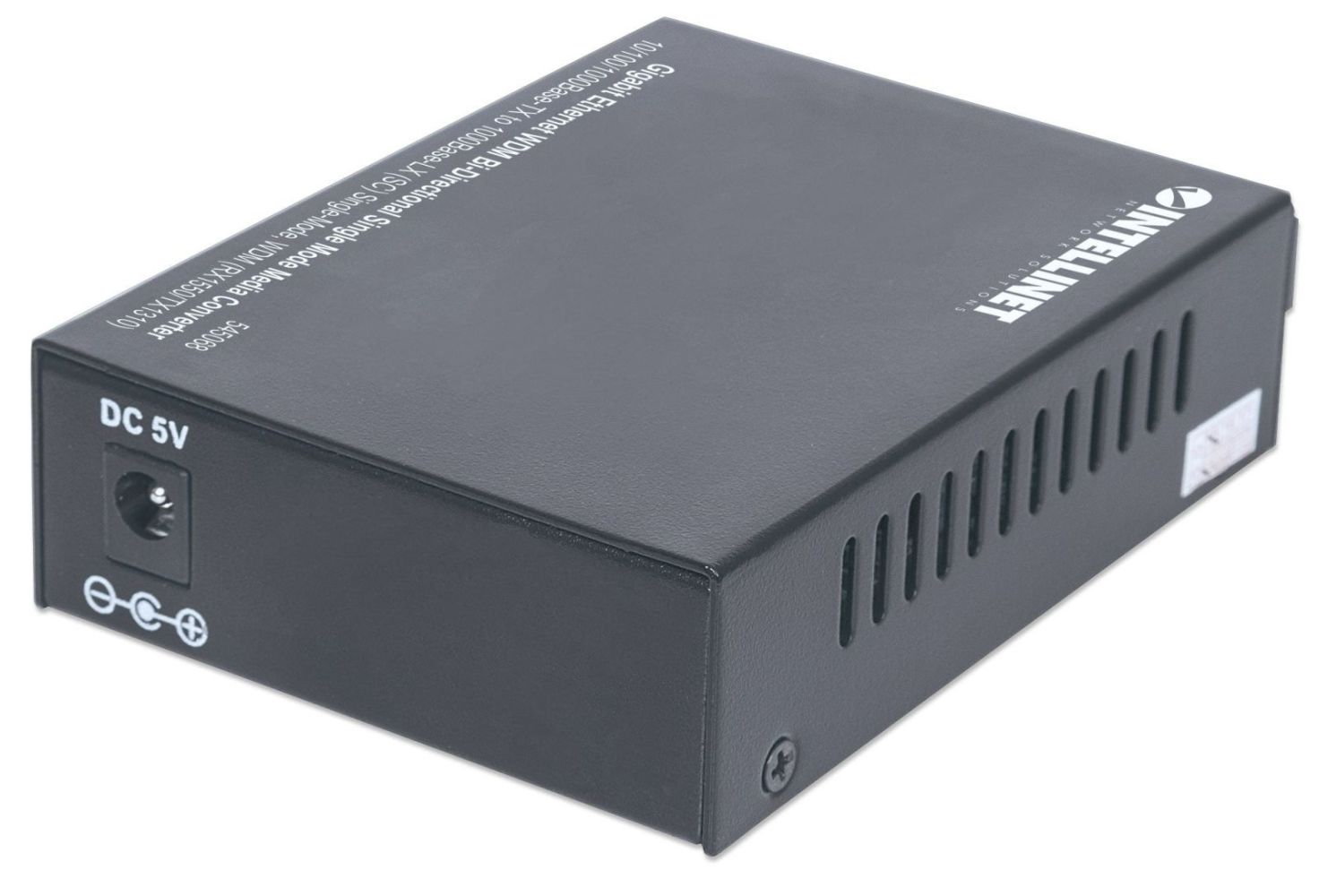

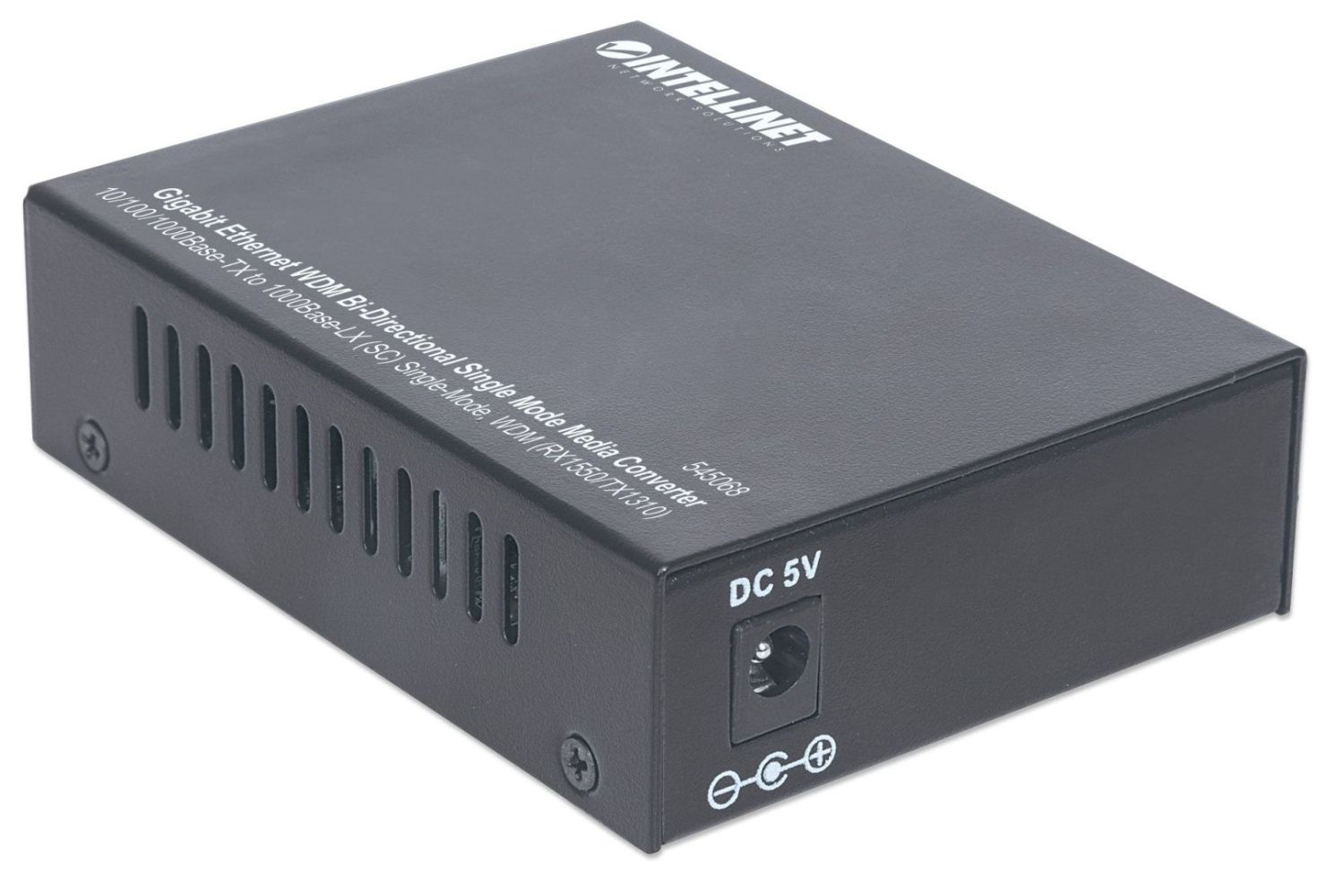

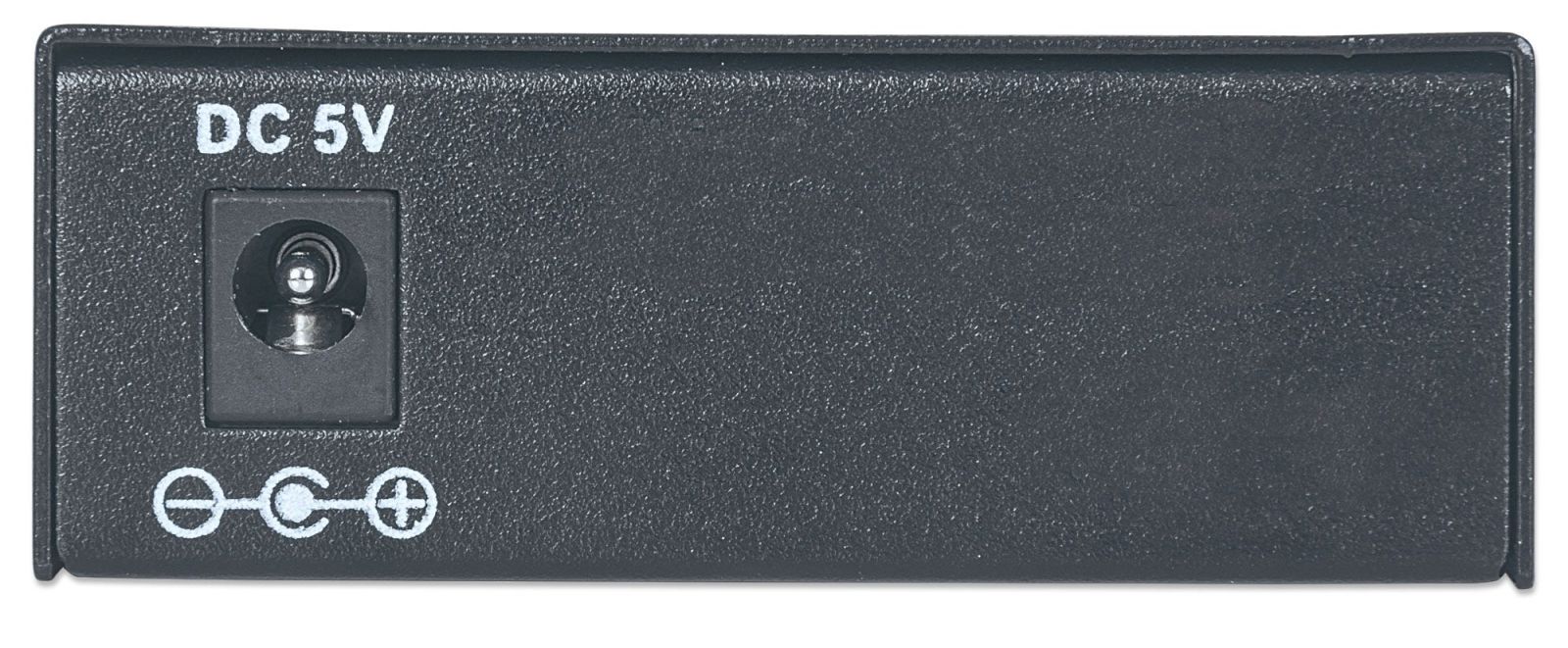

- External Power Supply, 5 V
- 3 years warranty Standards
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Supported Media:
- 1000Base-T CAT5 or higher UTP / STP RJ45, EIA / TIA 568
- 1000Base-LX Single-mode 8.3 / 125 microns or 8.7 / 125 micron or 8/125 microns or 10/125 micron
- Connections:
- RJ45 Port, 10 / 100Base-TX
- SC port 100Base-FX
- Range:
- 20 km (fiber optic cables)
- 100 m (RJ45 cable)
- Wavelength:
- receiving (RX): 1550 nm
- transmission (TX): 1310 nm
- Power output: -8 - -3 dBm
- RX sensitivity: -22 dBm =
- signal attenuation: 0.2 dB / km
- MTBF> 100,000 hours
- Certifications: FCC Class A, CE LEDs
- Electricity
- Link / Activity
- Full duplex / Collision
- 1000 Mbit / s display for RJ45 port
- Link display for fiber optic port electricity
- External power supply: 12 V, 1.2 A
- Power consumption: 5 watts (max.) Technical details
- Metal housing
- Dimensions: 105 (L) x 69 (W) x 25 (H) mm
- Weight: 180g
- Operating temperature: 0 - 50 ° C
- Humidity: 10 - 80% RH, non-condensing
- Storage temperature: -20 - 70 ° C Delivery
- Gigabit Ethernet WDM bidirectional singlemode media converter
- power supply
- manual Color: Black Product dimensions: 105 (L) x 69 (W) x 25 (H) [mm]
Questions & answers
What is the delivery time of INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310)?
The article INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310) is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of INTELLINET 545068 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310) always at the best possible price. We can give you a discount of 2% on INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310) we can offer you a price of 84,32 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of INTELLINET 545068 Gigabit Ethernet WDM bidirectional singlemode media converter 10/100 / 1000Base-TX to 1000Base-LX (SC) singlemode, 20 km, WDM (RX1550 / TX1310) via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
