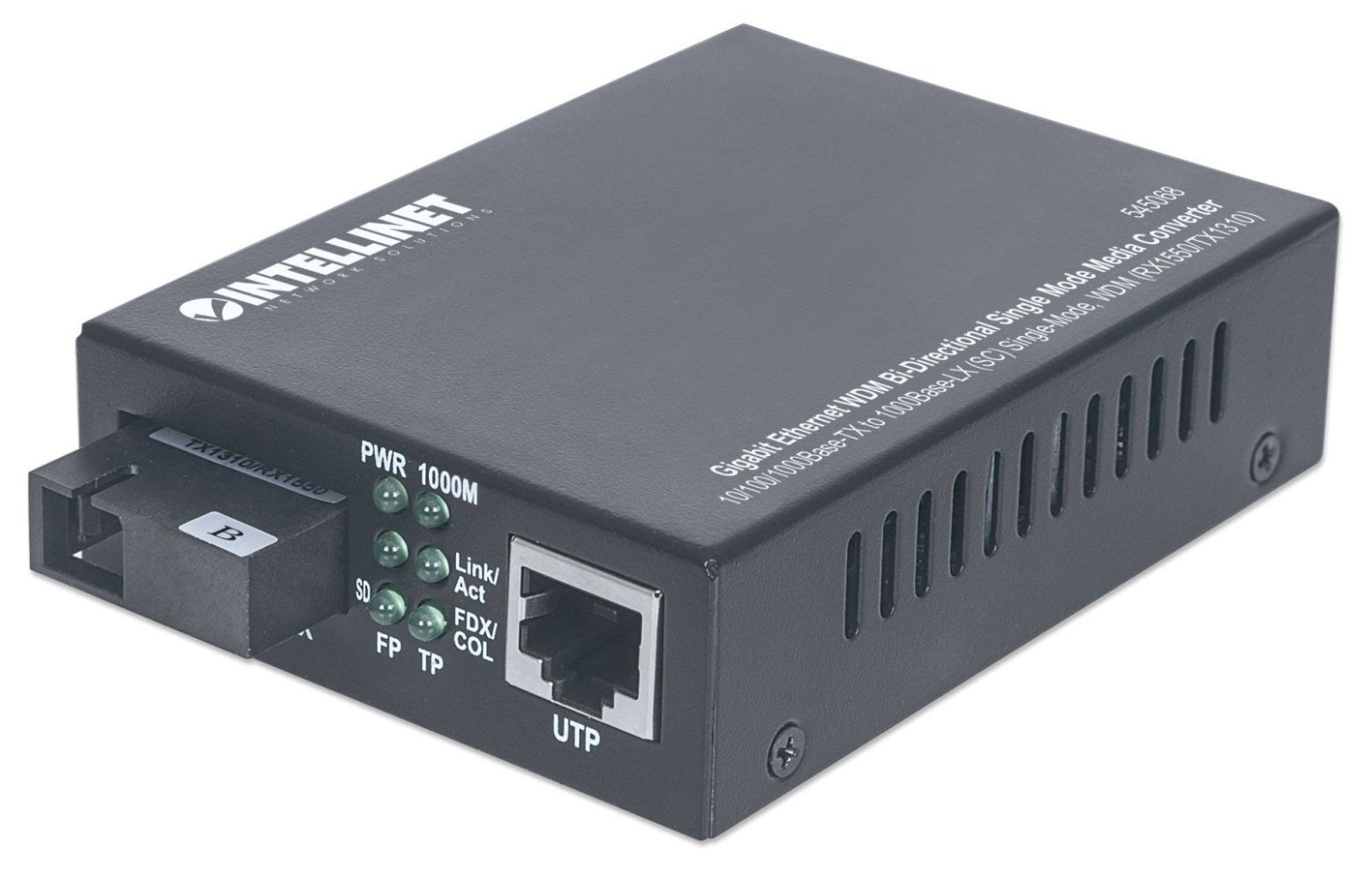

INTELLINET Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter 10/100/1000Base-TX to 1000Base-LX SC 20km
|
37,84 EUR |
|
|
( 45,03 EUR incl. VAT ) ≈ £31.86 | ≈ $42.49 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 468935 |
| Mfg Part No: | 545068 |
| UPC/EAN: | 0766623545068 |
| Weight: | 0.427 kg |
| Certificates | |
| Certification | FCC Class A, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Duplex system | Full |
| Cable types supported | Cat5 |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,8.7/125,8/125,10/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -22 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Wavelength-division multiplexing (WDM) | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

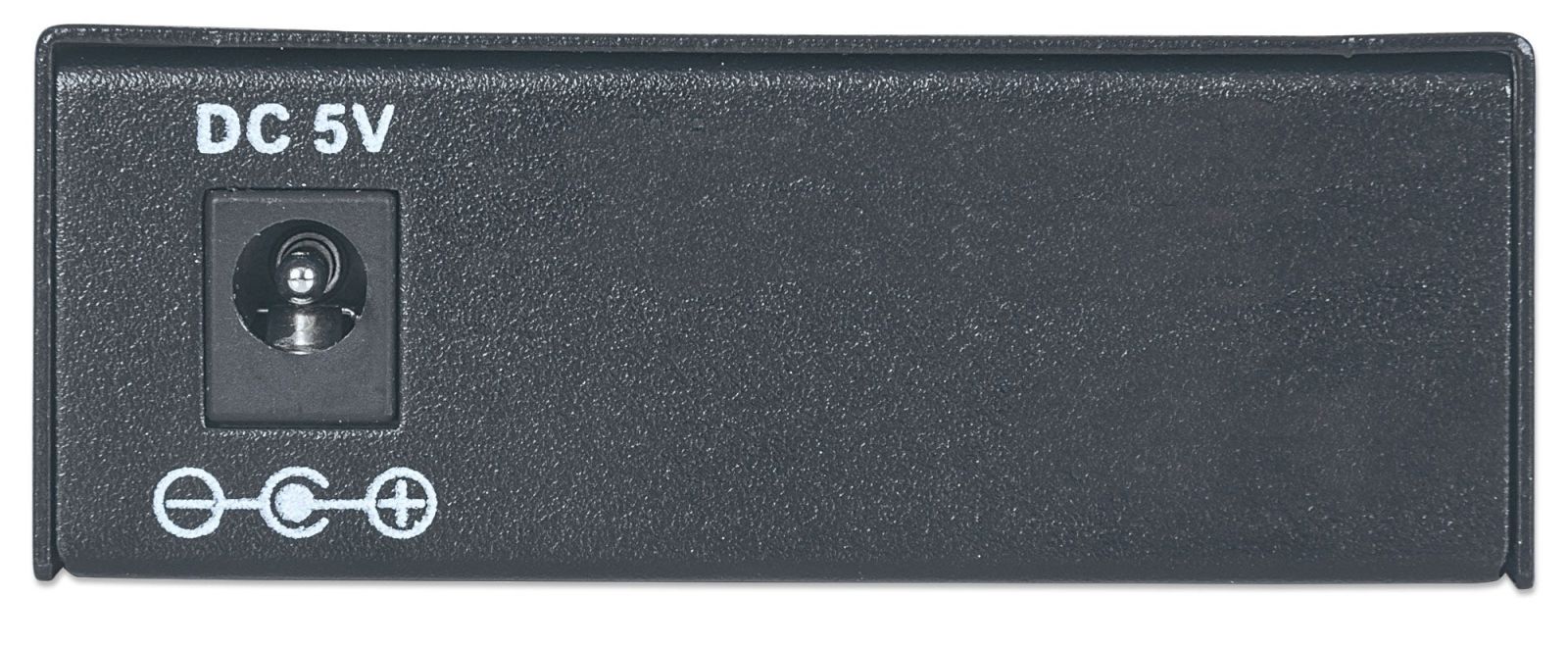

| DC-in jack | |
| Power | |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
Questions & answers
What is the delivery time of INTELLINET Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter 10/100/1000Base-TX to 1000Base-LX SC 20km?
The article INTELLINET Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter 10/100/1000Base-TX to 1000Base-LX SC 20km is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 545068 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter 10/100/1000Base-TX to 1000Base-LX SC 20km always at the best possible price. We can give you a discount of 2% on INTELLINET Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter 10/100/1000Base-TX to 1000Base-LX SC 20km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
