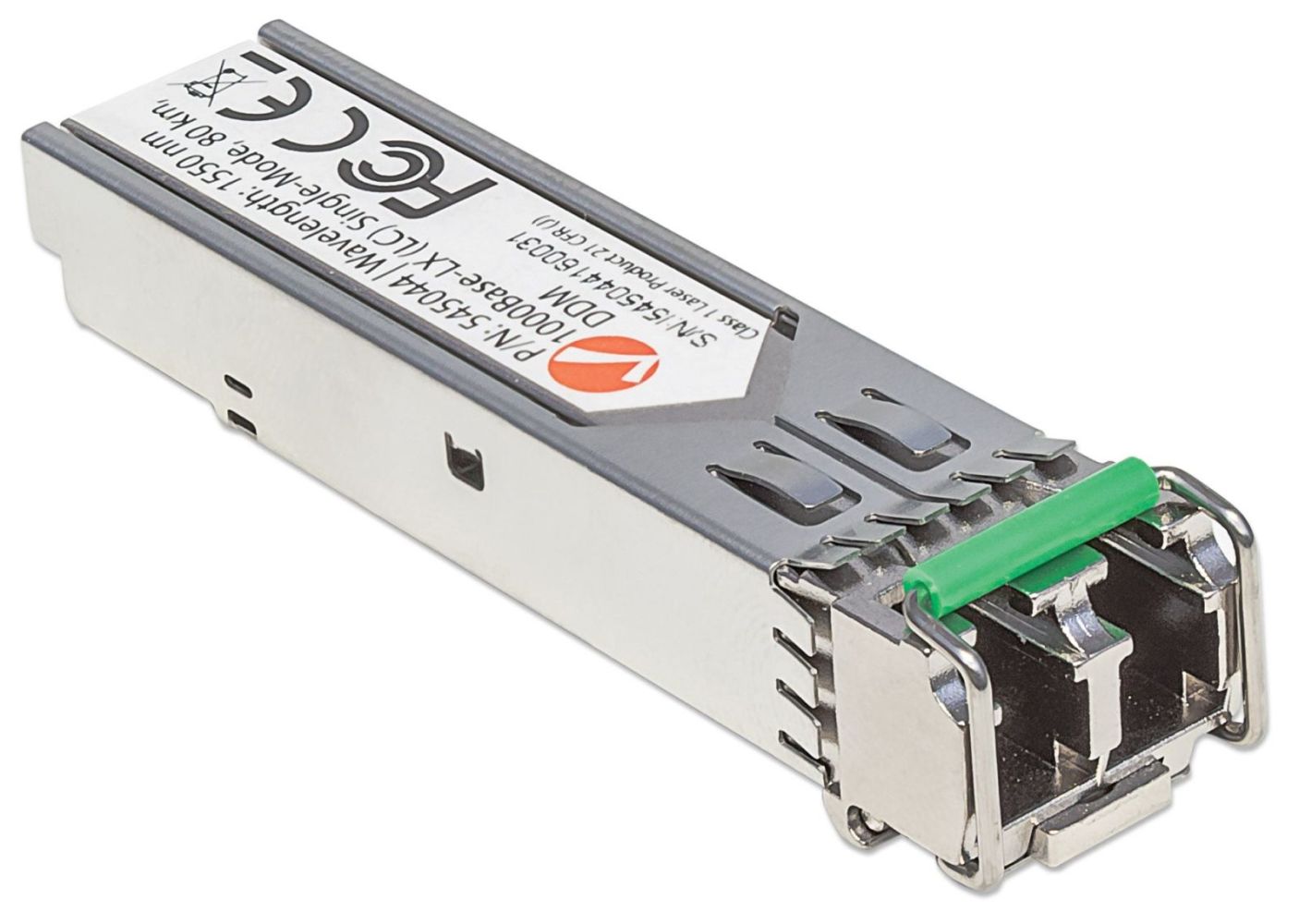

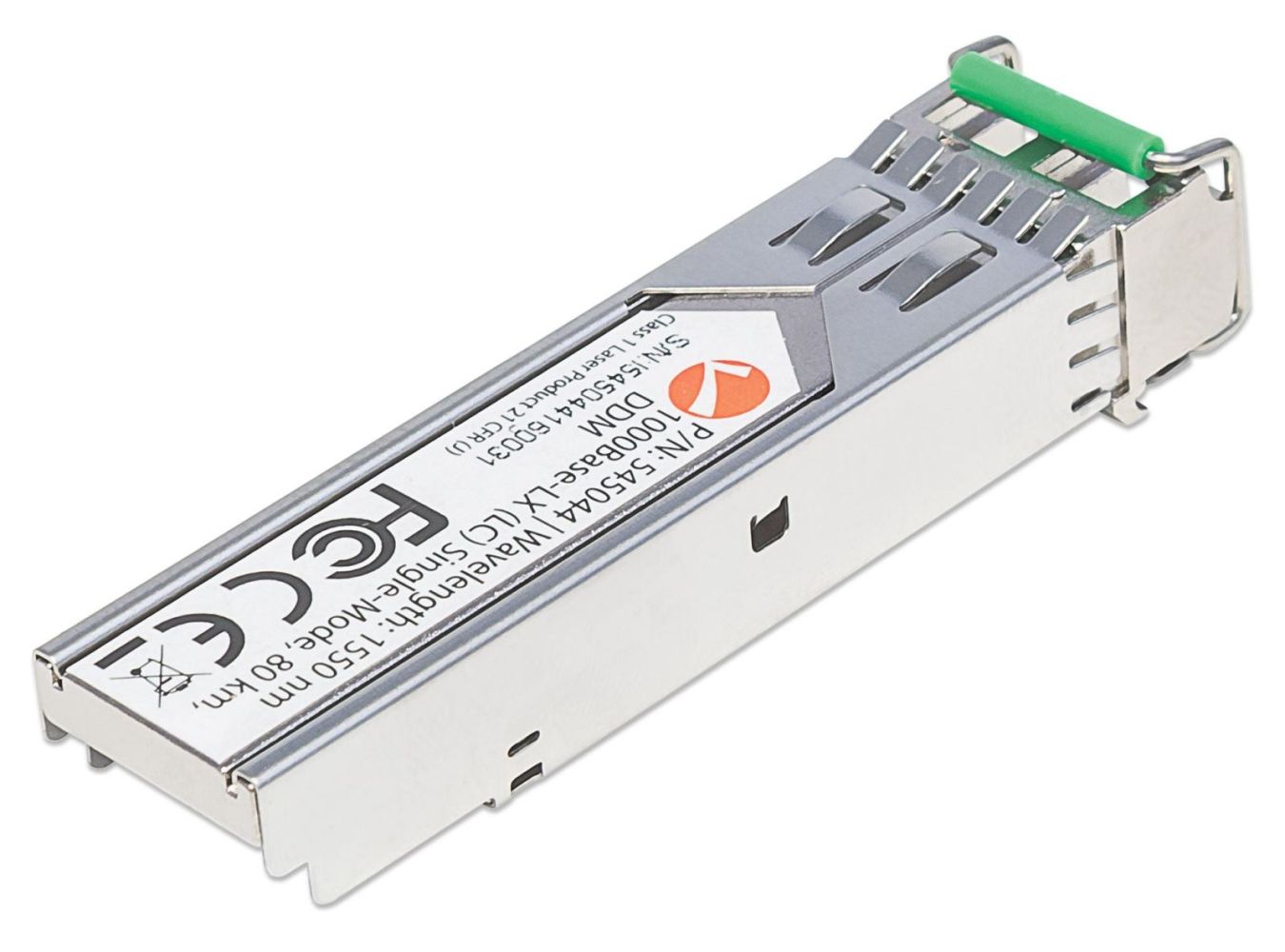

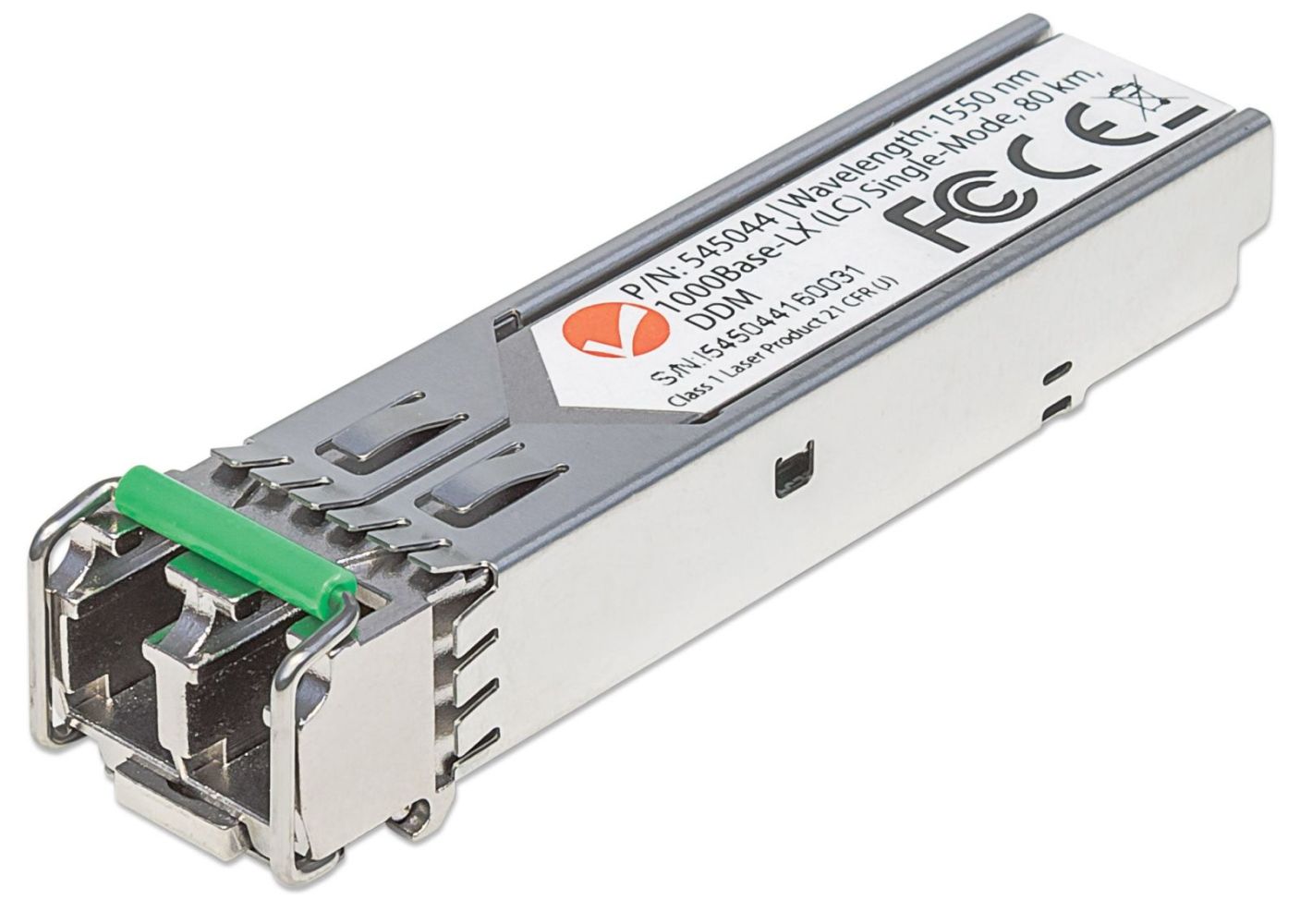

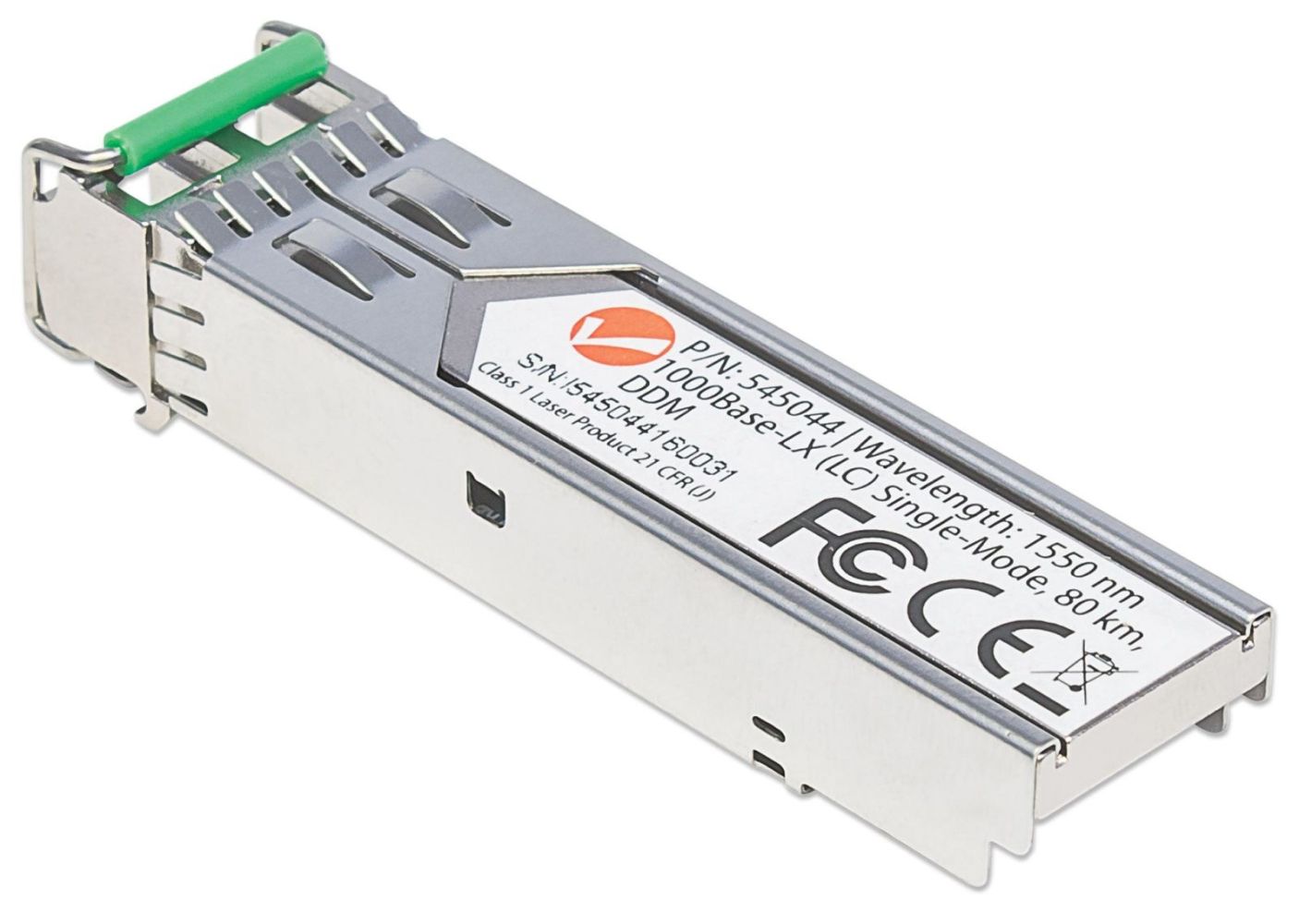

Intellinet 545044
Gigabit SFP mini GBIC transceivers for fiber optic cables 1000Base-LX (LC) singlemode port, 80 km
|
77,59 EUR |
|||||||||||
|
( 92,34 EUR incl. VAT ) ≈ £65.33 | ≈ $87.14 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| End-Of-Life: | 13. May 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 953853 | ||||||||||
| Mfg Part No: | 545044 | ||||||||||
| UPC/EAN: | 766623545044 | ||||||||||
| Weight: | 0.018 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Intellinet 545044:
- Data transfer rate: 1000 Mbit / s
- A 1000Base-LX singlemode LC duplex port for fiber-optic cable
- Supported FO range: up to 80 km
- wavelength: 1550nm
- Compliant with SFP Multi-source Agreement (MSA)
- Compatible with Cisco, HP and more
- SFP standard form factor
- Supports Digital Diagnostics monitoring (DDM)
- metal housing reduces electromagnetic interference
- up to 1.25 Gbit / s bidirectional communication
- Supports hot plugging
- 3 years warranty standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Supported Media: 1000Base-LX singlemode 9/125 microns fiber
- Connector: LC duplex port 1000Base-LX
- Range: 80 km
- Wavelength: 1550 nm
- Fiber Power Budget:
- Max TX Power:. 5 dB
- Min. TX Power: -2 dB
- Sensitivity: -24 dB
- Power budget: 22 dB
- construction: SFP (Small form Factor Pluggable), 1.25 Gbit / s
- Certificates: FCC Class A, CE Mark, RoHS electricity
- Voltage: 3.3V
- Consumption: 1.0 watts (max.) Physical Details
- Dimensions: 57 (L) x 14 (W) x 12 (H) mm
- Weight: 20 g
- Operating temperature: 0 - 70 ° C
- Humidity: 10 - 85%, non-condensing
- storage temperature: -40 - 85 ° C delivery
- Gigabit SFP mini GBIC transceivers for fiber optic cables Color: Silver Product dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
| Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE Mark |
| Features | |
| Product colour | Silver |
| Hot-Plug support | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 5 dBmW |
| Link budget | 22 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Single-mode fiber (SMF) supported | |
| Ethernet LAN | |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 18 g |
