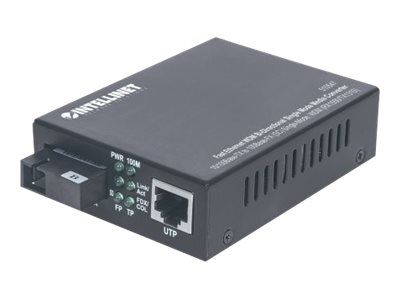

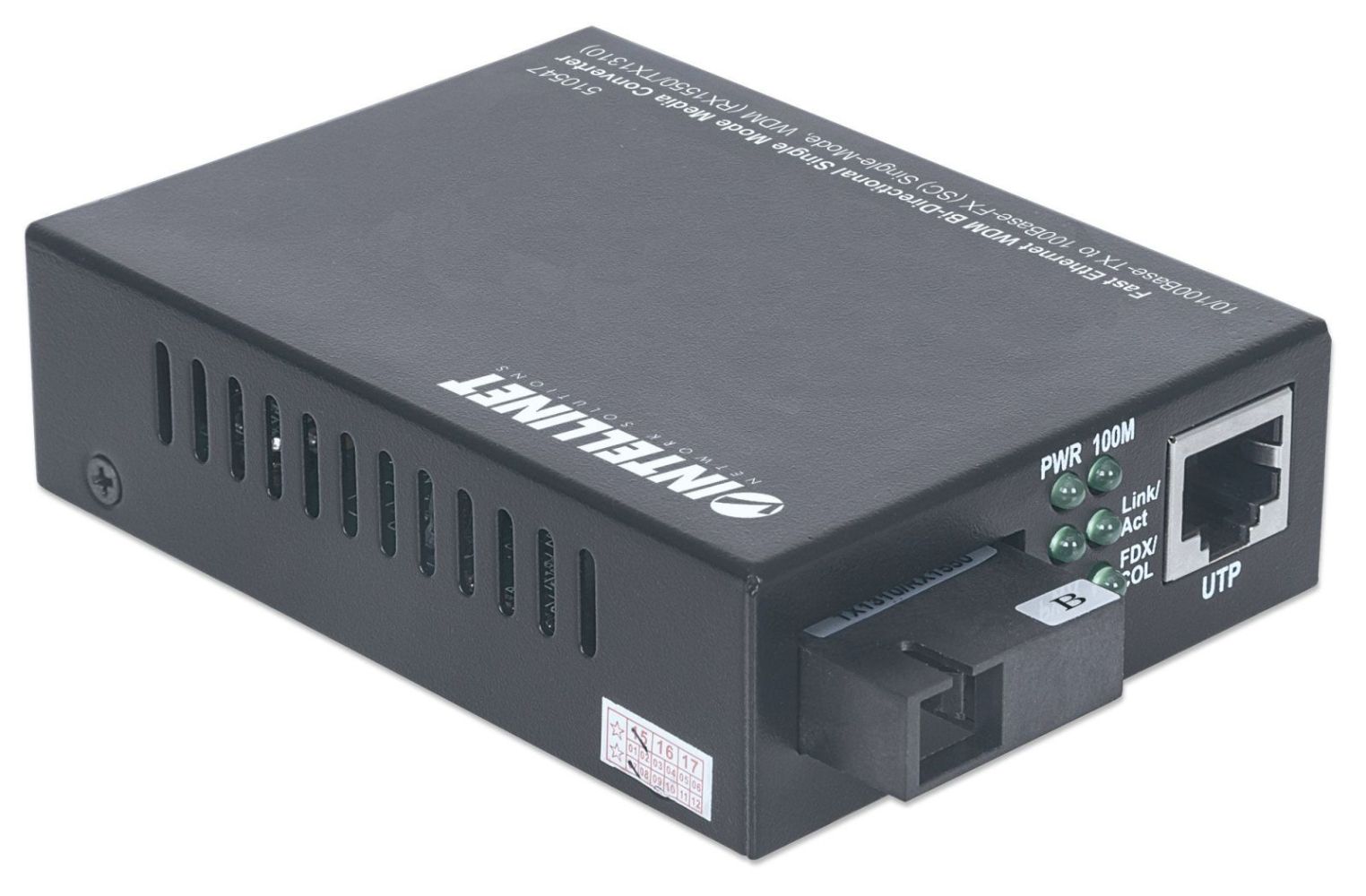

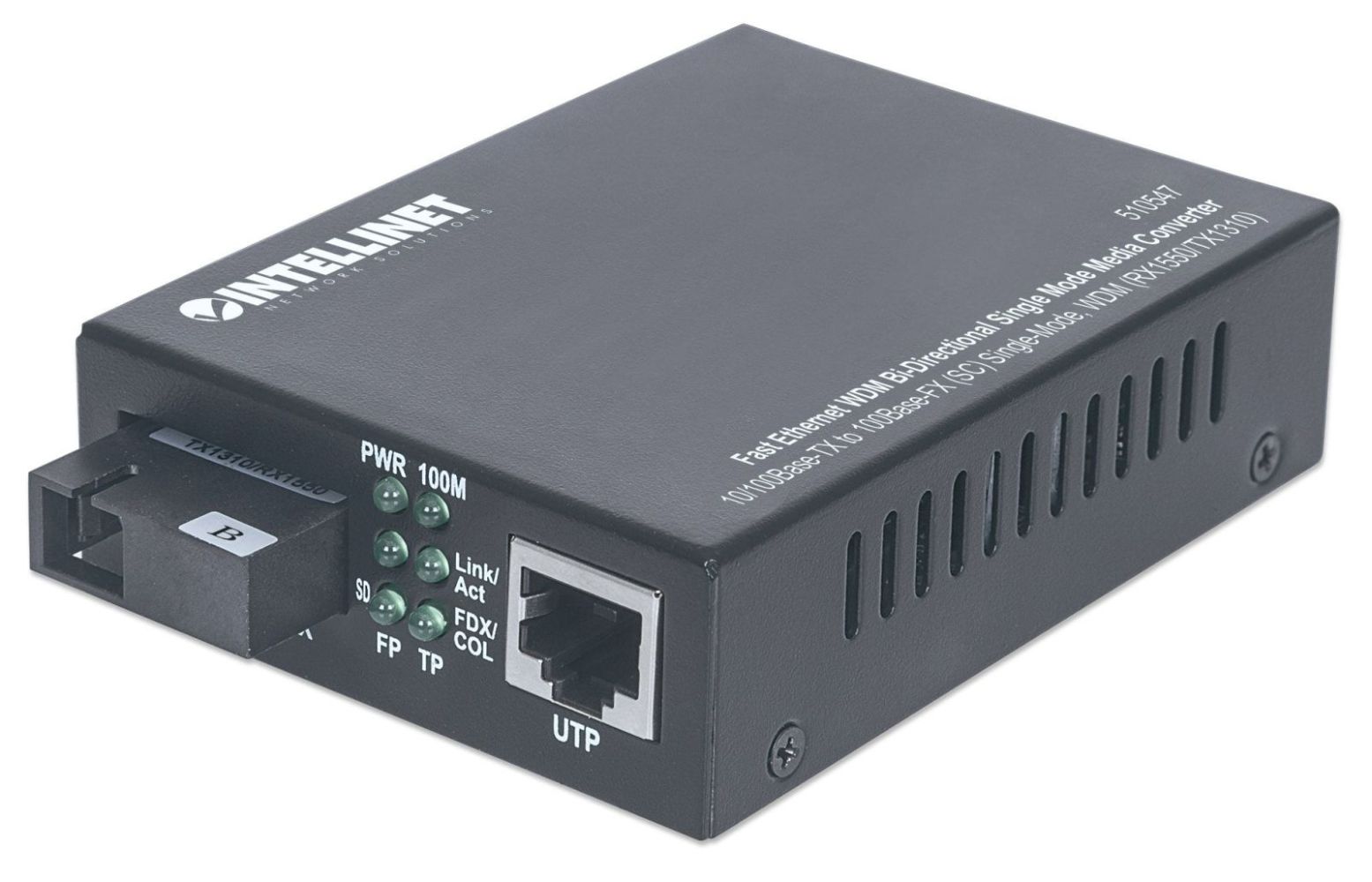

Intellinet 510547 Fast Ethernet WDM bidirectional singlemode media converter 10/100Base-TX to 100Base-FX (SC) single mode, 20 km, WDM (RX1550/TX1310)
|
40,84 EUR |
|||||||||||
|
( 48,61 EUR incl. VAT ) ≈ £34.19 | ≈ $44.89 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 414007 | ||||||||||
| Mfg Part No: | 510547 | ||||||||||
| UPC/EAN: | 0766623510547 | ||||||||||
| Weight: | 0.377 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Intellinet 510547:
- Requires use with Fast Ethernet WDM bidirectional singlemode media converter, model 510530
- Data transfer rate: 100 Mbit / s
- WDM technology (Wavelength Division Multiplexing) uses only one fiber for data transmission and reception on separate wavelengths
- Wavelengths: receiving (RX), 1550 nm; Send (TX), 1310 nm
- 10 / 100Base-TX RJ45 port, maximum range 100 m (CAT5e or higher)
- RJ45 port with Auto MDI / MDI-X support
- 100Base FX Single Mode SC port

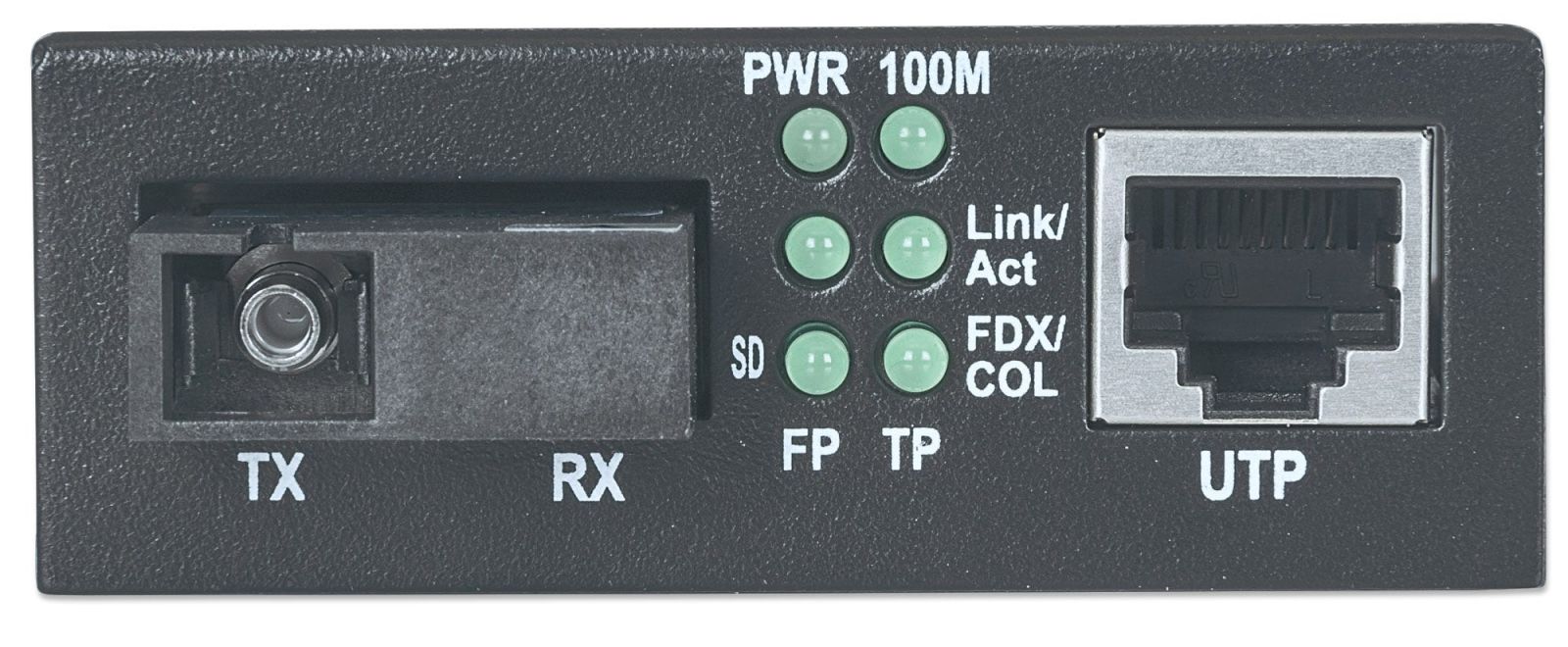

- LEDs Device Status
- Can be used as a stand-alone converter or with the 14-slot Media Converter Chassis, Model 507356

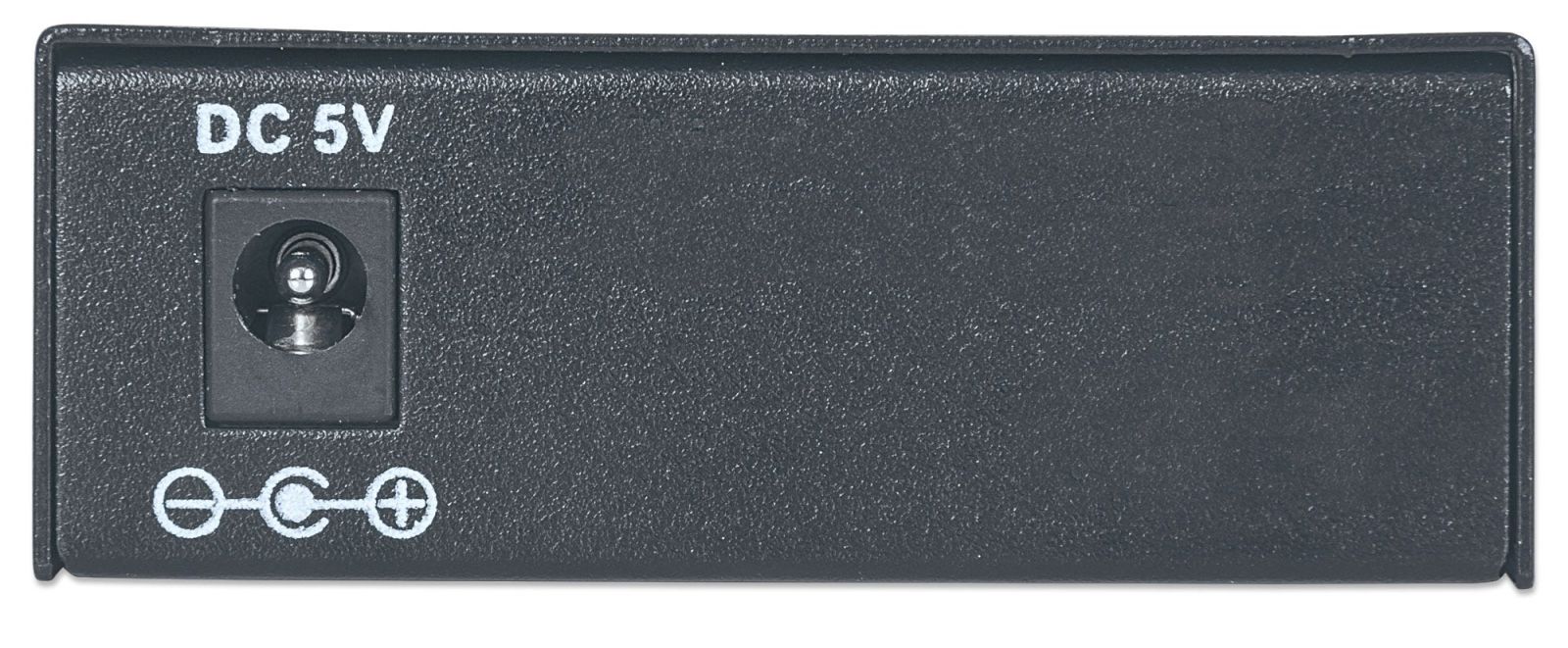

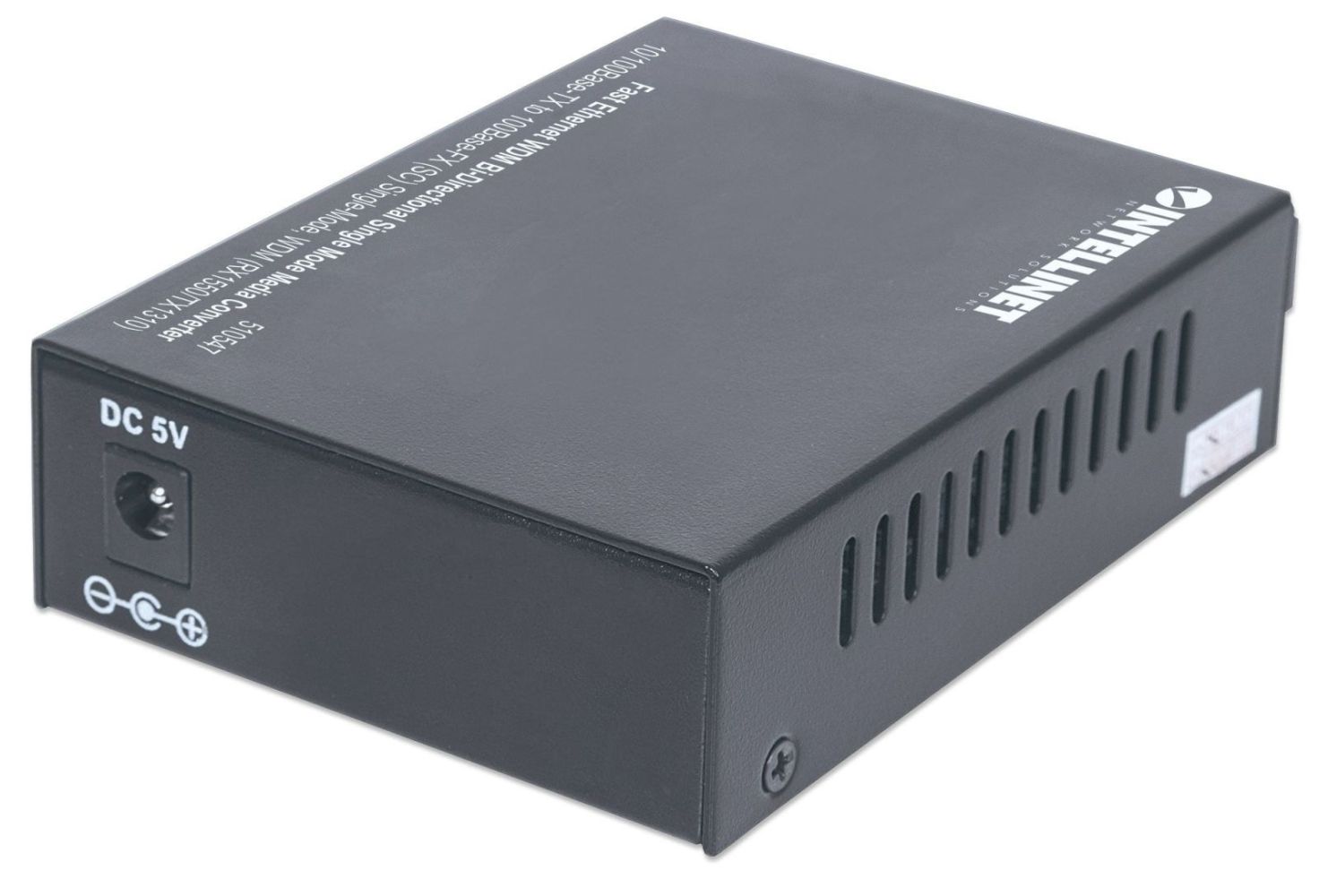

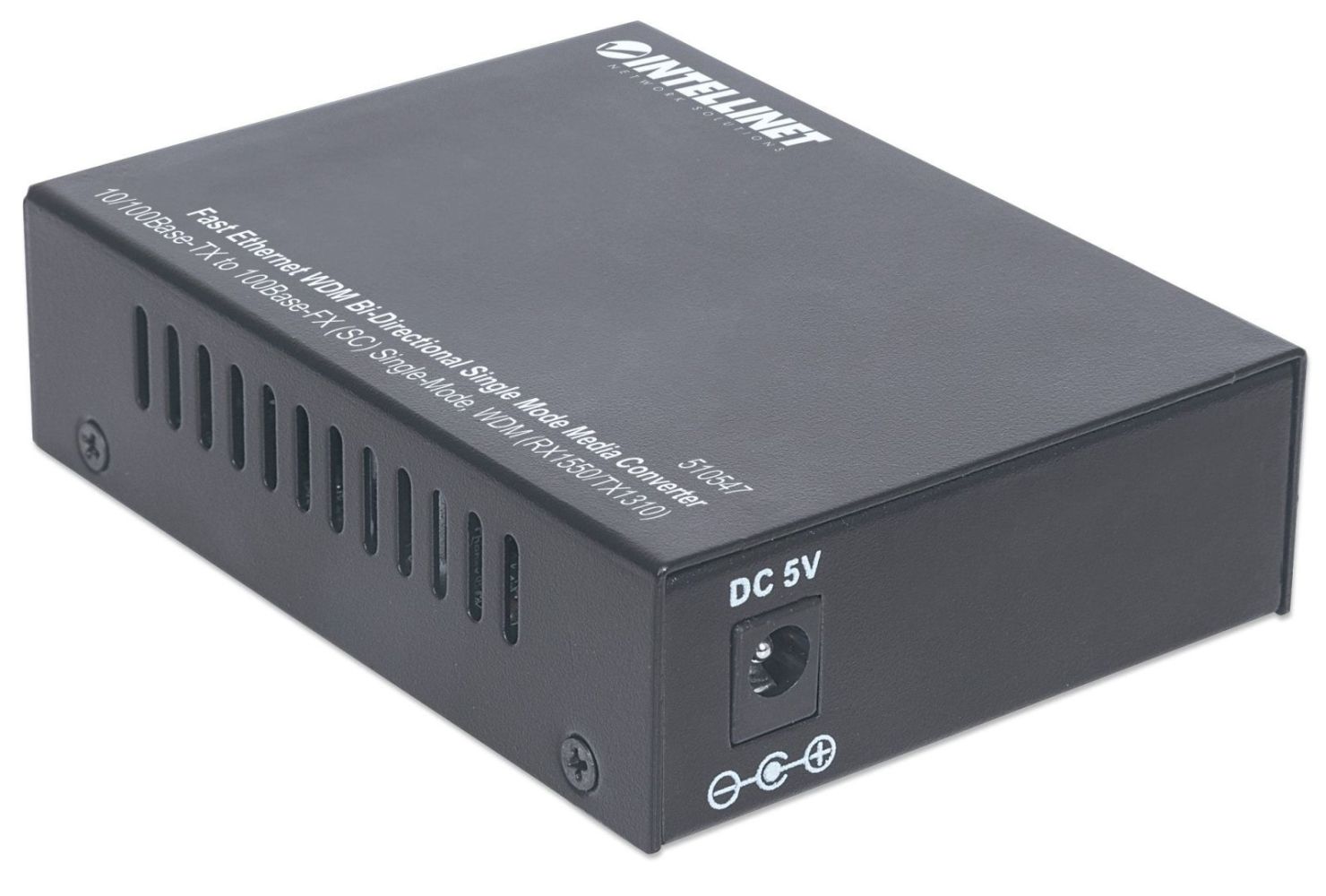

- External Power Supply, 5 V
- 3 years warranty Standards
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet) General
- Supported Media:
- 10 / 100Base-TX Cat5e or higher UTP / STP RJ45
- 100Base-FX single mode 9/125 micron fiber
- Connections:
- RJ45 Port, 10 / 100Base-TX
- SC port 100Base-FX
- Range:
- 20 km (9/125 micron fiber optic cable)
- 100 m (RJ45 cable)
- Wavelength:
- receiving (RX): 1550 nm
- Transmission (TX): 1310 nm
- Power output: -15 - -3 dBm
- RX sensitivity: -32 dBm =
- signal attenuation: 0.2 dB / km
- MTBF> 100,000 hours
- Certifications: FCC Class A, CE LEDs
- Electricity
- Link / Activity
- Full duplex / Collision
- display 100 MBit / s connection speed on RJ45 port
- Link display for fiber optic port electricity
- External power supply: 12 V, 1.2 A
- Power consumption: 5 watts (max.) Other Details
- Metal housing
- Dimensions: 105 (L) x 69 (W) x 25 (H) mm
- Weight: 180g
- Operating temperature: 0 - 50 ° C
- Humidity: 10 - 80% RH, non-condensing
- Storage temperature: -20 ° - 70 ° C Delivery
- Fast Ethernet WDM bidirectional singlemode media converter
- power supply
- manual Color: Black Product dimensions: 105 (L) x 69 (W) x 25 (H) [mm]
| Certificates | |
| Certification | FCC Class A, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Cable types supported | Cat5e |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Wavelength-division multiplexing (WDM) | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | |
| Power | |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
