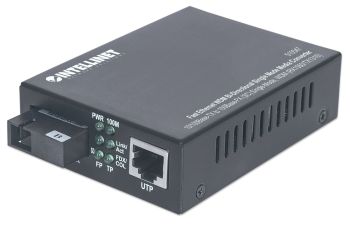

INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km
|
32,31 EUR |
|
|
( 38,44 EUR incl. VAT ) ≈ £27.20 | ≈ $36.28 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 469969 |
| Mfg Part No: | 510547 |
| UPC/EAN: | 0766623510547 |
| Weight: | 0.377 kg |
| Certificates | |
| Certification | FCC Class A, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Cable types supported | Cat5e |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Wavelength-division multiplexing (WDM) | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | |
| Power | |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
