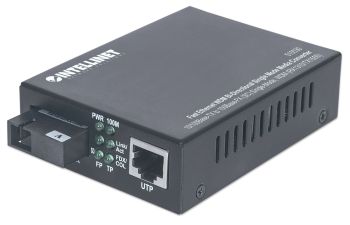

INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km
|
33,16 EUR |
|||||||||||
|
( 39,47 EUR incl. VAT ) ≈ £27.92 | ≈ $37.24 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 469587 | ||||||||||
| Mfg Part No: | 510530 | ||||||||||
| UPC/EAN: | 0766623510530 | ||||||||||
| Weight: | 0.31 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
| Certificates | |
| Certification | FCC Class A, CE |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Cable types supported | Cat5e |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Wavelength-division multiplexing (WDM) | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | |
| Power | |
| Output current | 1.2 A |
| Power consumption (max) | 2.5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
Questions & answers
What is the delivery time of INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km?
The article INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 510530 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km always at the best possible price. We can give you a discount of 2% on INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of INTELLINET Fast Ethernet WDM Bi-Directional Single Mode Media Converter 10/100Base-TX to 100Base-FX (SC) Single-Mode 20 km we can offer you a price of 32,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
