Intellinet 510493
Gigabit Ethernet to SFP media converter 10/100/1000Base-TX to SFP slot, empty
|
56,35 EUR |
|
|
( 67,05 EUR incl. VAT ) ≈ £47.61 | ≈ $63.00 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 429829 |
| Mfg Part No: | 510493 |
| UPC/EAN: | 766623510493 |
| Weight: | 0.21 kg |
Further Media-Converters from IntellinetFurther products in category Media-Converters
All products of Intellinet
Product information for Intellinet 510493:
The Intellinet Media Converter integrates fiber optic cable into an existing copper cable network for a LAN upgrade with low cost and effort. He works transparently — the performance and functionality remain unchanged, the network will only be expanded to support both media - Copper and fiber optic — expanded.
Higher range
Thanks to the fiber optic support, even distant workgroups can be integrated into your network. Building-to-building connections are easily possible without additional access points.
Flexibility in cabling
Thanks to its compact design, this can Converters can be used in both desktop applications with limited space and in wall cabinets. Several converters can also be integrated into an Intellinet 19” Install media converter housing. - Data transfer rate: 1000 Mbit/s
Higher range
Thanks to the fiber optic support, even distant workgroups can be integrated into your network. Building-to-building connections are easily possible without additional access points.
Flexibility in cabling
Thanks to its compact design, this can Converters can be used in both desktop applications with limited space and in wall cabinets. Several converters can also be integrated into an Intellinet 19” Install media converter housing. - Data transfer rate: 1000 Mbit/s
- 10/100/1000Base-T auto-sensing RJ45 port, maximum range 100 m (Cat5e or higher)
- RJ45 port with Auto MDI/MDI X support
- SFP port for optical transceiver modules (SFP module not included)
- Port for Mini GBIC 1.25G SFP modules - Gigabit multimode or singlemode

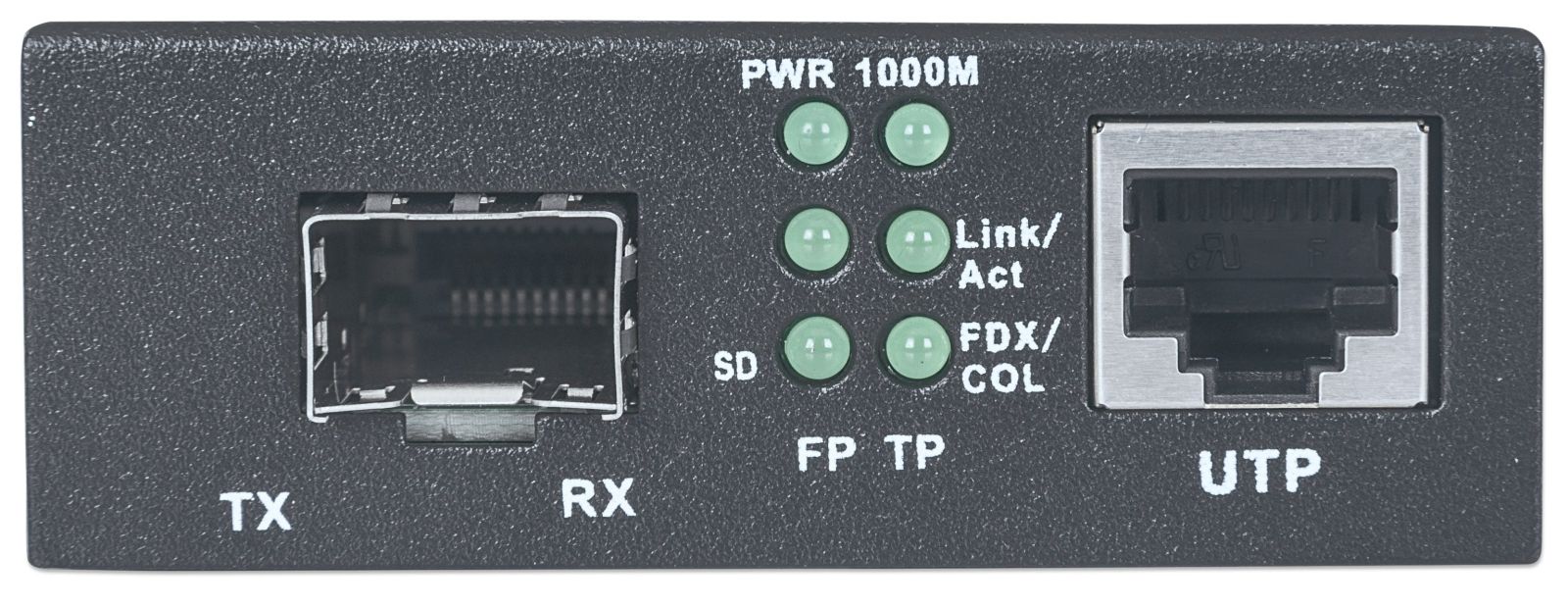

- Status LEDs for power and link/TX for both ports
- Supports jumbo frames up to 9K
- External power supply, 5V
- Usable as a standalone converter or with the 14-slot media converter enclosure, model 507356
- Fully NDAA compliant
- 3-year warranty Standards
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3u (Twisted Pair Fast Ethernet)
- IEEE 802.3z (Fiber Optic Gigabit Ethernet) General
- Media support:
- 1000Base-T Cat5e or higher UTP/STP RJ45
- Fiber optic media support according to inserted SFP module
- Connections:
- RJ45 port, 1000Base-T
- SFP module slot
- Range:
- 100 m (RJ45 cable)
- Fiber optic range according to inserted SFP module
- Certificates: FCC Class A, CE Mark LEDs
- Power
- Link/ Activity
- Full duplex/collision
- 1000 Mbps display for RJ45 port
- Link display for fiber optic port Power
- External power supply 5 V, 1,0 A
- Power consumption: 3.0 watts (max.) Other details
- Metal housing
- Dimensions: 96 (L) x 70 (W) x 26 (H) mm
- Net weight: 210 g
- Gross weight: 320 g
- Operating temperature: 0 - 50°C
- Humidity: 10 - 80% RH, non-condensing
- Storage temperature: -20 – 70°C Scope of delivery
- Gigabit Ethernet media converter
- Power supply
- Manual Color: Black Product dimensions: 96 (L) x 70 (W) x 26 (H) [mm]
| Certificates | |
| Certification | FCC Class A, CE |
| Features | |
| LED indicators | Link, Power |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Duplex system | Full |
| Cable types supported | Cat5e, Fiber |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| User guide | |
| Performance | |
| Maximum transfer distance | 100 m |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Input voltage | 12 V |
| Input current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 96 mm |
| Height | 26 mm |
| Weight | 170 g |
