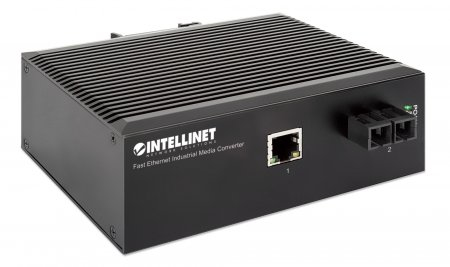

INTELLINET 508322
Fast Ethernet industrial media converter 100Base-TX to 100Base-FX (SC) single mode, 20 km, metal housing with protection class IP40, DIN rail mounting
|
-12% 109,14 EUR 123,34 EUR |
|
|
( 129,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 984678 |
|---|---|
| Mfg Part No: | 508322 |
| UPC/EAN: | 766623508322 |
| Weight: | 0.6 kg |
Product information for INTELLINET 508322:
This industrial Fast Ethernet media converter from Intellinet Network Solutions allows installers to integrate fiber optic cables into an existing copper cable network for a LAN -Upgrade with low cost and labor. He works transparently — the performance and functionality remain unchanged, the network will only be expanded to support both media - Copper and fiber optic — expanded. Thanks to fiber optic support, even distant workgroups can be integrated into your network. Without additional access points, building-to-building connections are easily possible.
Fully equipped for challenging industrial environments
Through Thanks to its extremely robust housing with protection class IP40, the converter works reliably, even in extreme ambient temperatures of -40 to 75°C. Combined with its DIN rail mounting option and two redundant DC power inputs as well as numerous other security features, it is ideal for IoT applications in Industry 4.0 and much more. - One 10/100 RJ45 port supports one maximum range of 100 m
- A 100Base-FX single-mode fiber SC port supports a maximum range of 20 km
- Slim metal housing with IP40 protection for demanding industrial environments

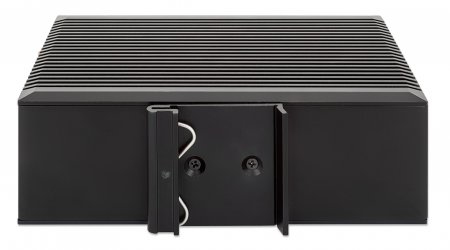

- DIN rail mountable

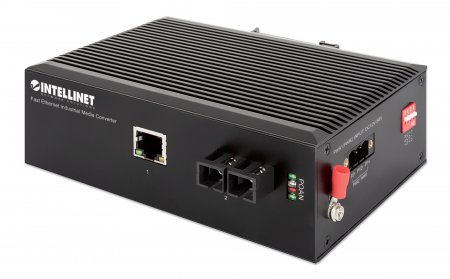

- Redundant power supply with two inputs (12 - 58 V DC) and I/O terminal block
- Requires industrial power supply (not included)
- Port surge protection up to 6 kV
- Tested for shock resistance (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibration ( IEC 60068-2-6)
- Wavelength 1310 nm
- Supports operation in full duplex mode or half duplex mode with autonegotiation
- For ambient temperatures from -40 to 75°C
- Supports 8,000 MAC addresses with auto-learning and auto-aging
- 1 MB buffer
- Supported Jumbo frames up to 10 KByte
- Fan-free design for quiet operation
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet) General
- Supported media:
- 100Base-TX Cat5e or higher UTP/STP RJ45
- 100Base-FX singlemode 8.3/125 µm, 8.7/125 µm, 8/125 µm or 10/125 µm
- Range:
- Fiber optic cable: 20 km
- RJ45 cable: 100 m
- Wavelength: 1310 nm
- Min. TX power: -9 dBm
- Max. TX power: -3 dBm
- Forwarding rate: 1.0416 Mpps
- Switching capacity : 1.4 Gbit/s
- Certificates: FCC Class B, CE, RoHS LEDs

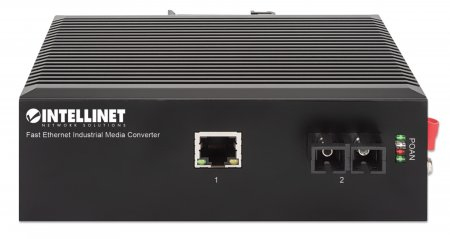

- P for Power
- O for Optical Fiber Port
- N for NMC
- A for Alarm (Voltage) DIP Switch
- C/D for Remote PD -Reset
- LGY to switch between fully compliant / non-fully compliant 802.3bt PDs
- VLAN for port isolation
- RST for reset power
- Input: 12.0 - 58.0 V DC
- Power consumption: 6.0 W (max.) Physical Details
- Metal housing
- DIN rail: According to IEC/EN 60715 (top-hat rail)

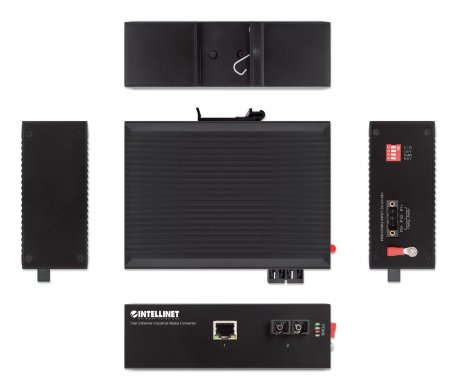

- Dimensions: 143 x 104 x 48 mm
- Weight: 600 g
- Operating temperature: -40 - 75°C
- Storage temperature: -40 - 85°C
- Humidity : 5 - 95% RH, non-condensing Scope of delivery:
- Fast Ethernet industrial media converter
- Quick guide Color: Black Product dimensions: 143 (L) x 104 (W) x 48 (H) [mm]
