INTELLINET 508209
Gigabit PoE+ media converter 1000Base-T RJ45 port to 1000Base-LX (SC) single mode, 20 km, PoE+ injector
|
93,94 EUR |
|
|
( 111,79 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1377944 |
|---|---|
| Mfg Part No: | 508209 |
| UPC/EAN: | 766623508209 |
| Weight: | 0.2 kg |
Product information for INTELLINET 508209:
Higher range
Thanks to the fiber optic support, even distant workgroups can be integrated into your network. Building-to-building connections are easily possible without additional access points.
Power over Ethernet included
The Intellinet Gigabit PoE+ media converter supplies power even where there are no sockets, without complex electrical installations. Thanks to support for the IEEE802.3af / IEEE802.3at protocol, it delivers up to 30 watts of power to compatible devices.
Flexibility in cabling
Thanks to its Compact design, this converter can be used in both desktop applications with limited space and in wall cabinets. Several converters can also be integrated into an Intellinet 19” Install media converter enclosure. - One 10/100/1000 RJ45 port supports a maximum range of 100m
- Fiber SC singlemode port allows range up to 20km
- Link Fault Passthrough (LFP) for easier network maintenance
- Supports an IEEE 802.3at and IEEE 802.3af compliant PoE device
- Provides up to 30 watts of output power for a PoE compliant device
- Supports operation in full duplex mode or half duplex mode with autonegotiation

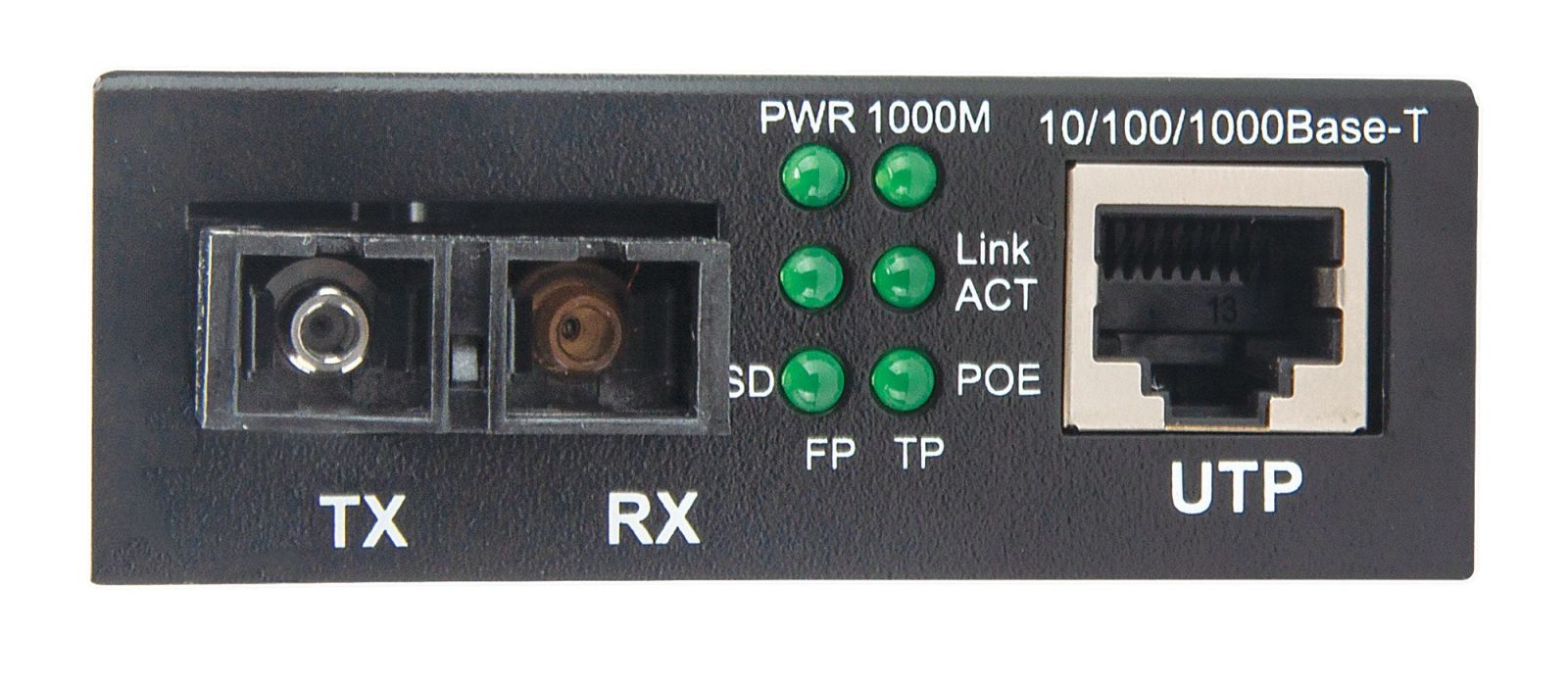

- Status LED for power and link/TX for both ports
- Supports jumbo frames up to 9 KByte
- Slim metal housing with protection class IP30
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3 / 802.3u / 802.3ab
- 10/100/1000Base-T
- IEEE 802.3at / 802.3af Power over Ethernet Plus (PoE+) Standard
- FCC Class A General:
- Supported media:
- 1000Base-T: Cat5 UTP/STP, max. 100 m
- 1000Base-LX Singlemode 8.3/125 µm, 8.7/125 µm, 8/ 125 µm or 10/125 µm
- Range:
- Fiber optic cable: 20 km
- RJ45 cable: 100 m
- Wavelength:1310 nm
- Connections:
- 1 x 10/100/1000 Mbit/s RJ45 port, full/half duplex, MDI/MDI-X
- 1 x 1000 Mbit/s fiber optic port (SC)
- Pin assignment RJ45 output ports (data + power)
- IEEE Alternative A
- Pin 1: [+]
- Pin 2: [+]
- Pin 3: [-]
- Pin 4: Not used
- Pin 5: Not used
- Pin 6: [-]
- Pin 7: Not used
- Pin 8: Not used LEDs
- Power
- LINK/ACT for RJ45 port
- LINK/ACT for fiber optic port ( SC)
- PoE+ indicator
- LED for optical signal input Current
- Input voltage: 56 V
- Input current: 0.5 A Environment
- Metal housing
- Dimensions: 95 (L) x 70 (W) x 25 (H) mm
- Weight: 0.2 kg
- Operating temperature: 0 - 55°C
- Humidity: 5 - 80% RH, non-condensing
- Storage temperature: -10 - 70°C Scope of delivery
- Gigabit PoE+ media converter
- External power supply
- Manual Color: Black Product dimensions: 95 (L) x 70 (W) x 25 (H) [mm]
