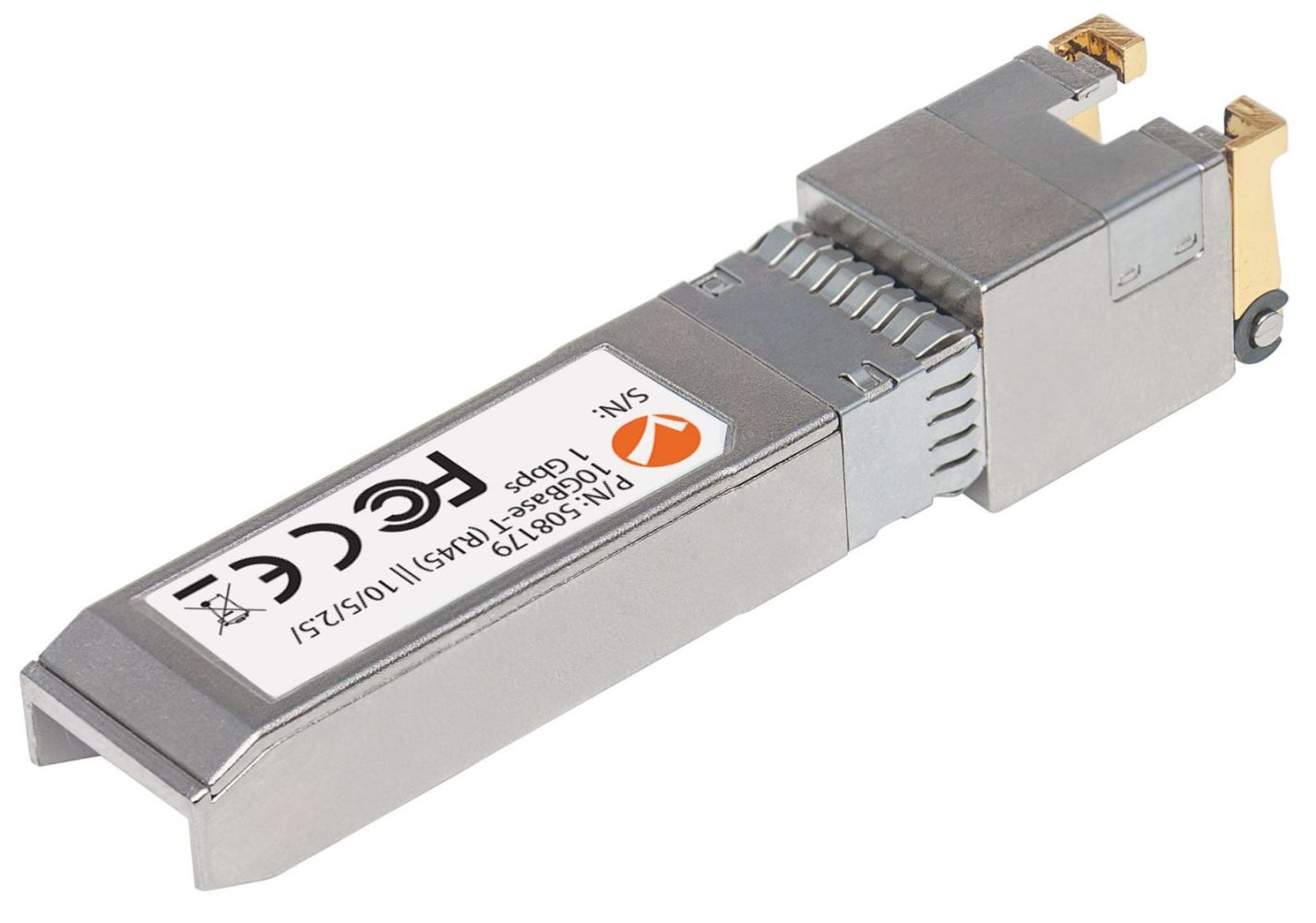

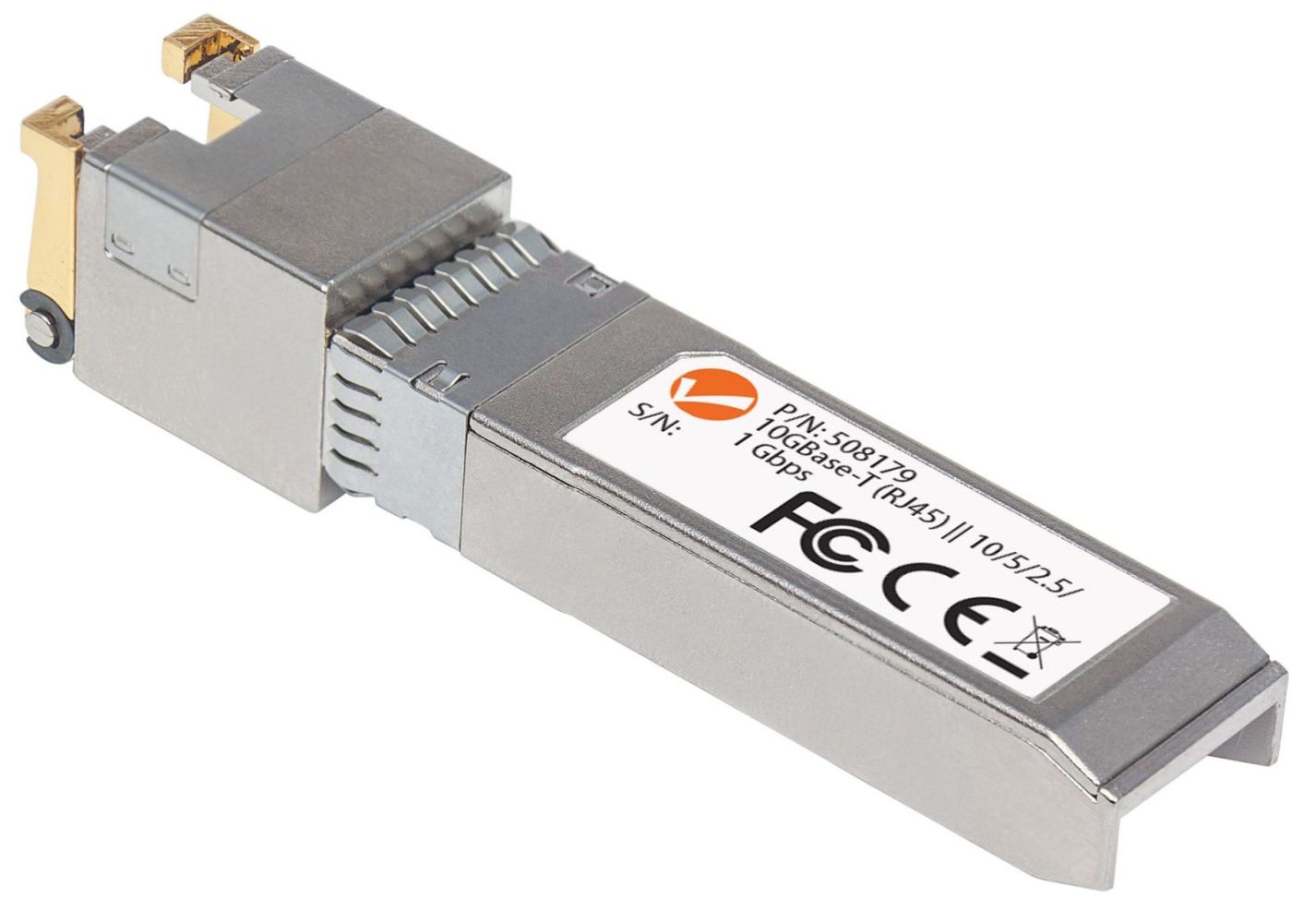

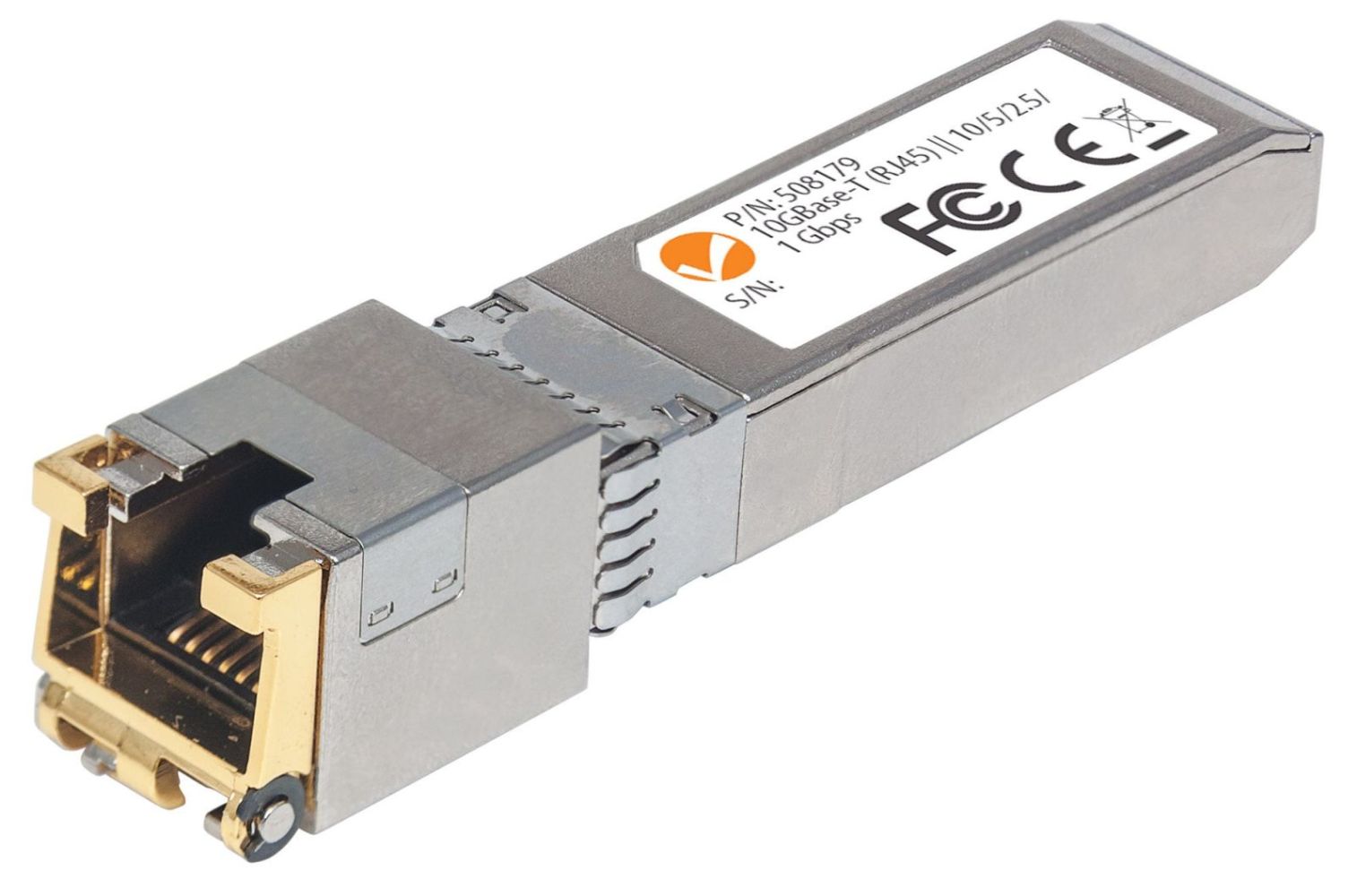

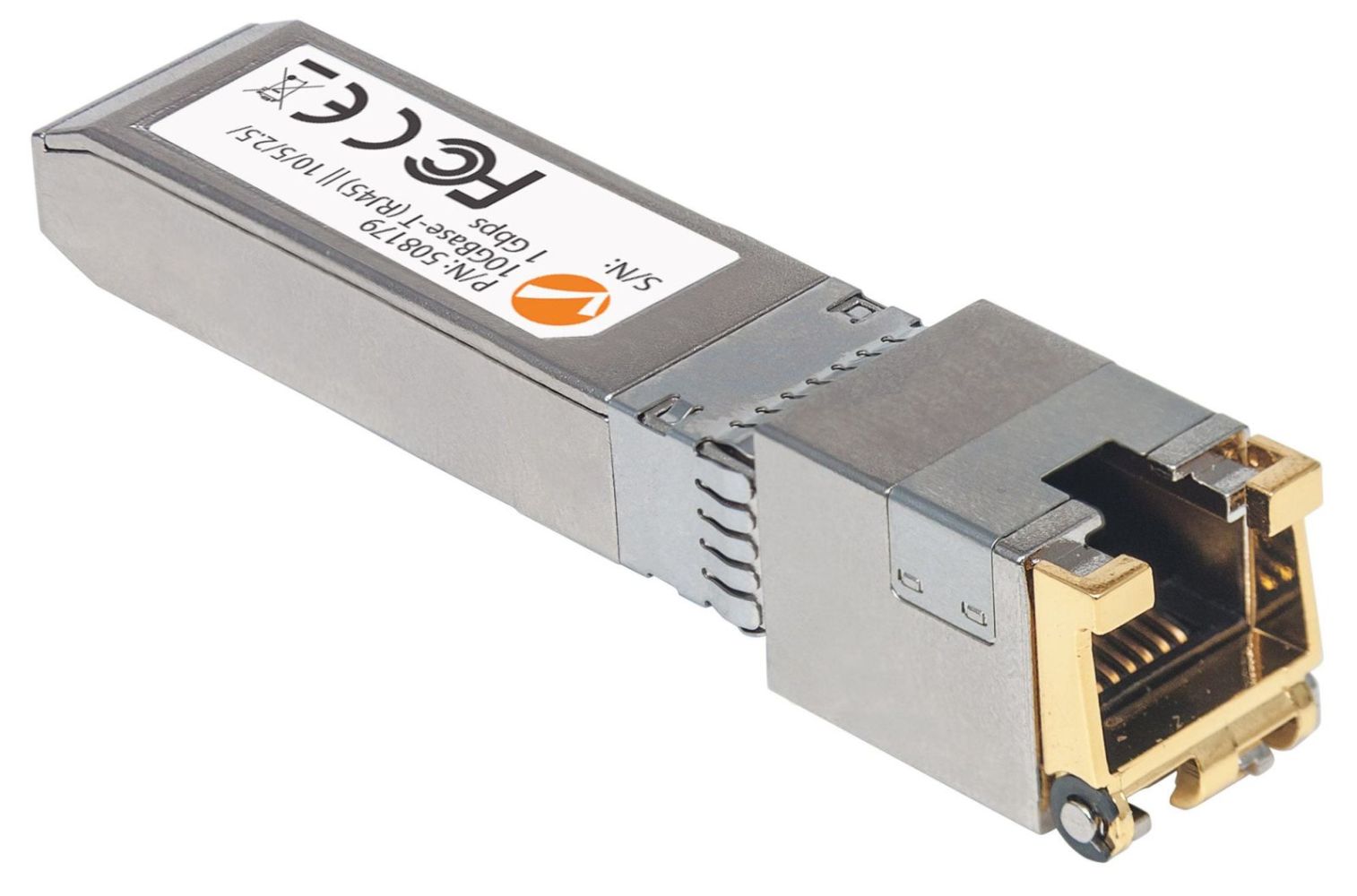

INTELLINET 508179
10 Gigabit SFP+ module / Mini-GBIC transceiver for RJ45 cable 10GBase-T (RJ45) port, 30 m, up to 10 Gbit/s transfer rates with Cat6a network cables

MSA Compliant and Compatible with Other Switch Brands
10 Gigabit SFP+ Mini-GBIC Transceiver for RJ45 Cable:
The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) transceivers brings a combination of high performance and affordability. A metal housing reduces electromagnetic interference and significantly increases the lifespan of the transceiver modules.
10G connections via copper RJ45 cabling:
With an impressive data transfer speed of up to 10 gigabits per second when using Cat6a (advanced Cat6 cabling with improved specifications), this SFP + copper transceiver proves to be a versatile and, above all, powerful connection point for your server or workstation.
State-of-the-art NBASE-T< technology:
Leveraging the IEEE 802.3bz standard, Intellinet Network Solutions' 10 Gigabit copper SFP+ transceiver module also supports gigabit speeds using Cat6 and Cat5e network cables. Cat6 transmits and receives data at up to 5 Gbit/s, while the Cat5e cable still achieves a strong 2.5 Gbit/s.
Compatibility:
Compatibility in your network is important. The 10 Gigabit SFP+ Mini-GBIC Transceiver for RJ45 Cable can be used with any Intellinet Network Solutions SFP+ enabled network switch or any other Multi Source Agreement (MSA) compliant SFP+ enabled switch. And since the SFP + transceiver module from Intellinet Network Solutions is set to transmit the article number MA-SFP-10G-T, compatibility with your Cisco equipment is also guaranteed.
Hot-Pluggable:
The 10 Gigabit SFP+ Mini-GBIC Transceiver for RJ45 Cable from Intellinet Network Solutions is fully hot-pluggable. This allows you to install the module without rebooting your network switch and ensures uninterrupted data traffic. - Enables inexpensive and reliable 10 Gigabit Ethernet connections over copper cables

• Up to 10 Gbit/s transfer rates with Cat6a network cables
• Up to 5 Gbit/s transfer rates with Cat6 and 2.5 Gbit/s with Cat5e network cables
• Advanced a network switch or media converter with SFP+ support to a 10 Gigabit Ethernet copper connection
• RJ45 port with Auto MDI/MDI-X support
• Equivalent to the Cisco MA-SFP-10G-T transceiver
• Suitable for all Intellinet Gigabit switches with SFP+ module slots and for each MSA-compliant SFP+ port
• Compliant with the SFP Multi-Source Agreement (MSA)
• Maximum transmission range 30 m at 10 Gbit/s via Cat6a network cable
• Maximum transmission range 50 m at 5 Gbit/s over Cat6 network cable and 2.5 Gbit/s over Cat5e network cable
• Maximum transmission range 100 m at 100 Mbit/s over Cat5e network cable
• Metal housing reduces electromagnetic interference
• SFP+ standard form factor
• Supports hot plugging
• Fully NDAA compliant
• 3 year warranty Standards
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• IEEE 802.3an (10 Gigabit Ethernet over Cat6A twisted-pair copper)
• IEEE 802.3bz (2.5 Gbps over Cat5e, 5 Gbit/s over Cat6 twisted pair copper)
General:

• Supported media:
• 1000Base-T Cat5e or higher UTP/STP RJ45
• 2.5GBASE-T Cat5e or higher UTP/STP RJ45
• 5GBASE-T Cat6 or higher UTP /STP RJ45
• 10GBASE-T Cat6a or higher UTP/STP RJ45
• Connection: RJ45 / SFP port
• Range: 30 m at 10 Gbit/s over Cat6a
• Design: SFP+ (Enhanced Small Form-Factor Pluggable)
• Certificates: FCC Class A, CE Mark, IEC-60825, RoHS
Power

• Voltage: 3.3V
• Power Consumption: 3 Watts (Max.)
Physical Details

• Dimensions: 68 (L) x 13.7 (W) x 13.6 (H ) mm
• Weight: 25 g
• Operating temperature: 0 - 60°C
• Storage temperature: -40 - 85°C
• Humidity: 5 - 95%, non-condensing
Scope of delivery:

• 10 Gigabit SFP+ Mini-GBIC transceiver for RJ45 cable Color: Silver Product Dimensions: 55 (L) x 13 (W) x 12 (H) [mm]
